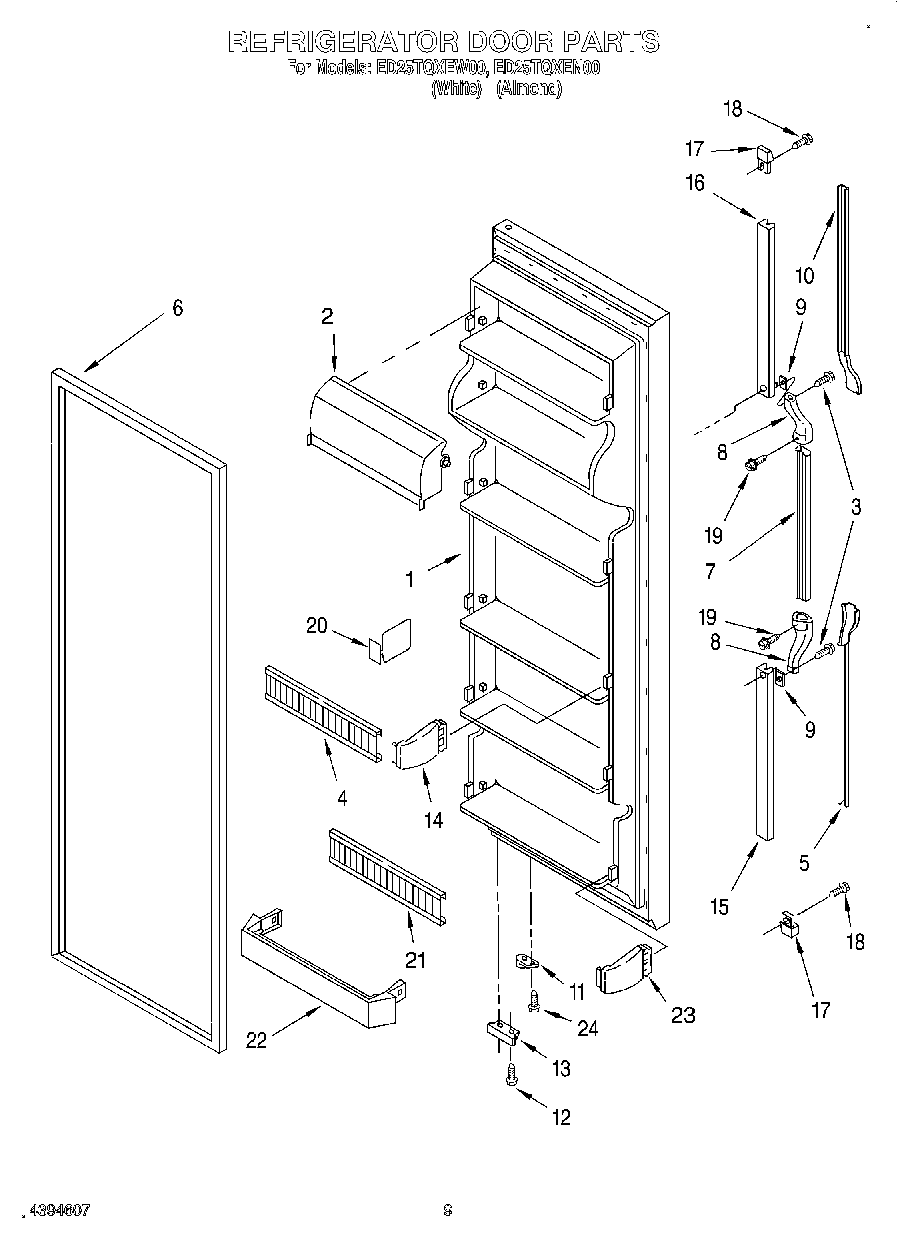

ED25TQXEW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Almond)
1	Refrigerator Door (Includes Item 6) (White)
2	WP2256101 Whirlpool Dairy Door
3	WP489463 Whirlpool Refrigerator Screw
4	Trim, Door (3)
5	Insert, Bottom (White)
5	Insert, Bottom (Almond)
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center (White)
7	Handle, Center (Almond)
8	End Cap, Center Handle
9	Shim
10	Insert, Top (Almond)
10	Insert, Top (White)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop
14	ENDCAP
15	Retainer, Bottom
16	Retainer, Top
17	End Cap (2)
18	Screw
19	Screw
20	Divider-Door
21	Trim, Door (1)
22	WP2177962K Whirlpool Refrigerator Door Trim
23	WP2195915 Whirlpool Door Shelf Support
24	WP3400012 Whirlpool Refrigerator Screw
