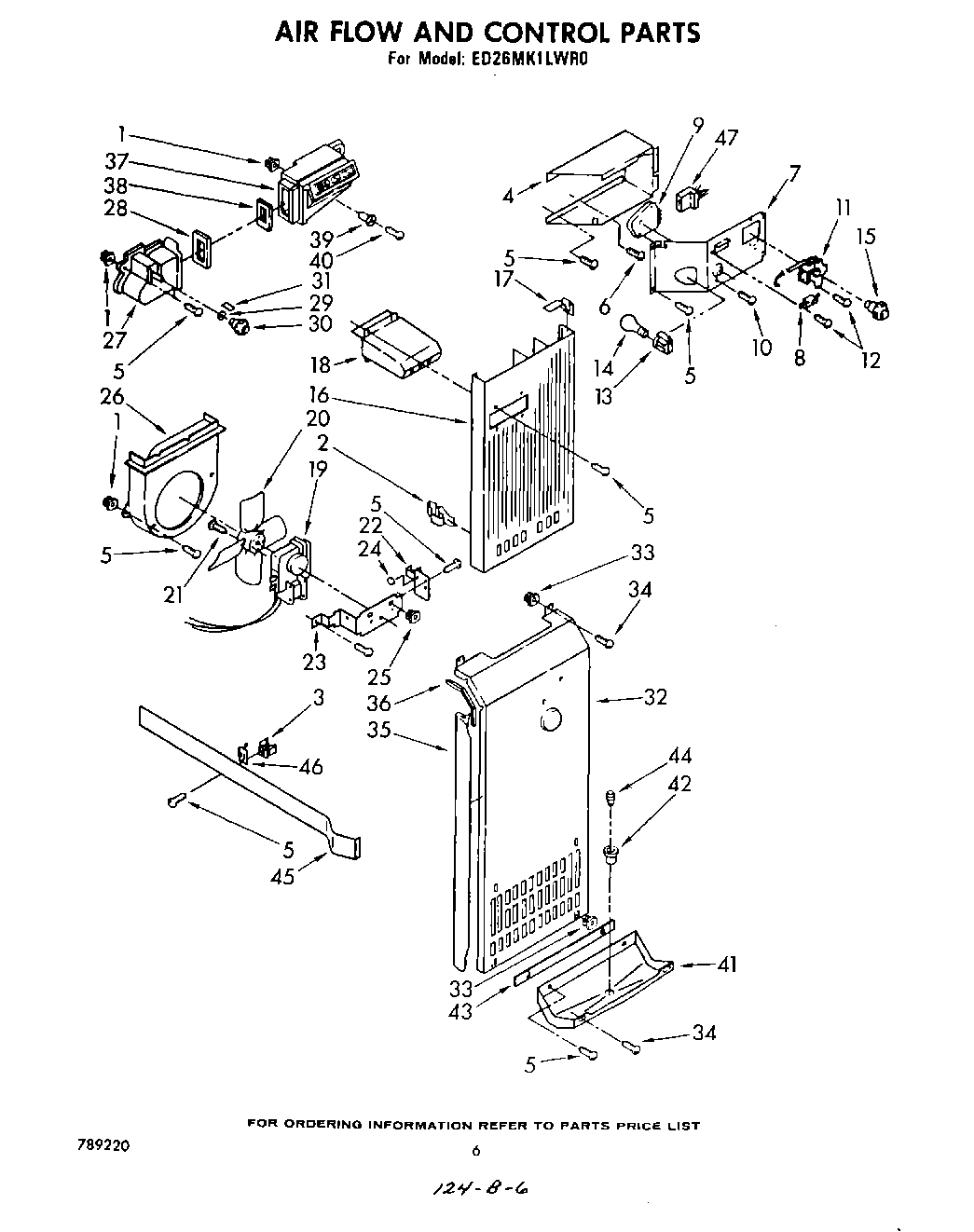

ED26MK1LWR0 04 – AIR FLOW AND CONTROL

Products

Position	Product
1	Grommet
2	2215823 Whirlpool Refrigerator Clip
3	Expansion Clip
4	Box, Control
5	W11624204 Whirlpool Screw
6	Screw, 8-32 x 3/8
7	Control Box Front
8	WP938213 Whirlpool Refrigerator Power Switch
9	Defrost Timer
10	WP3388228 Whirlpool Screw
11	WP819470 Whirlpool Refrigerator Thermostat
12	Screw, 8 x 3/8
13	4387478 Whirlpool Refrigerator Light Socket
14	RANGE ONLY 40W 120V APPL BULB
15	Knob, Temperature Control
16	Duct, Air
17	Baffle, Air
18	Air Deflector
19	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
20	Blade, Fan
21	WP487887 Whirlpool Refrigerator Screw
22	Fan, Bracket Double
23	Fan Bracket, Single
24	Grommet (3)
25	Screw Grommet
26	Scroll Fan
27	Air Scoop Assembly
28	Gasket, Air Scoop
29	Retainer, Damper
30	Control Knob
31	Knob, Retainer
32	Cover, Evaporator
33	Grommet
34	WP488729 Whirlpool Refrigerator Door Screw
35	Gasket, Evaporator Cover
36	Gasket, Cover Top
37	Air Diffuser Assembly
38	Gasket, Air Diffuser
39	836667 Whirlpool Refrigerator Spacer
40	Screw, 8 x 1-1/4 (3)
41	Pan, Drain
42	Drain Insert
43	Gasket, Drain Pan
44	Cap, Drain
45	WPL 935634
46	Heat Exchanger, Clip
47	Liner Wiring (Defrost Timer)
