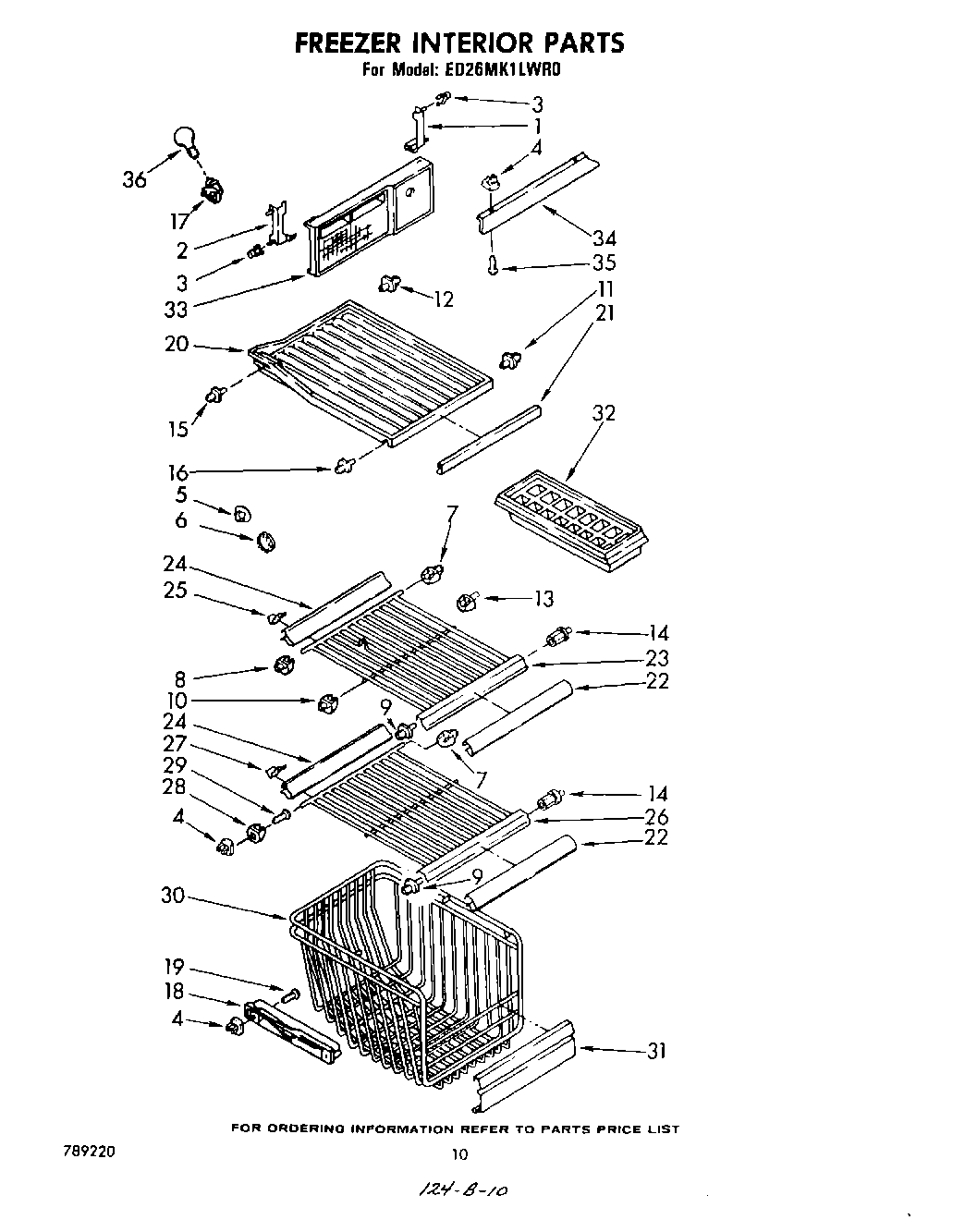

ED26MK1LWR0 06 – FREEZER INTERIORadmin2025-04-26T09:41:16+00:00ED26MK1LWR0 06 – FREEZER INTERIOR
Products
| Position | Product |
|---|
| 1 | Support, Light Lens (R.S.) |
| 2 | Support, Light Lens (L.S.) |
| 3 | Clip, Tubular |
| 4 | Grommet |
| 5 | Hole, Plug |
| 6 | Hole, Plug |
| 7 | Shelf, Saddle (R.S.) |
| 8 | Shelf Stud, Saddle |
| 9 | Shelf, Stud (2) |
| 10 | Shelf Stud |
| 11 | Stud, Shelf |
| 12 | Stud, Shelf |
| 13 | Stud, Shelf |
| 14 | Shelf, Stud |
| 15 | Stud, Shelf (2) |
| 16 | Shelf, Stud |
| 17 | 4387478 Whirlpool Refrigerator Light Socket |
| 18 | Track, Shelf (R.S.) |
| 18 | Track, Shelf (L.S.) |
| 19 | W11693756 Whirlpool Screw Assembly |
| 20 | Shelf, Solid |
| 20 | Solid Shelf (For Platinum Model Only) |
| 21 | Trim, Shelf |
| 22 | Trim Shelf, Front |
| 23 | Wire Shelf |
| 24 | Reflector, Shelf |
| 25 | Clip, Reflector |
| 26 | Wire Shelf |
| 27 | Clip Reflector |
| 28 | Shelf Stud, Saddle L.S. |
| 29 | WP488729 Whirlpool Refrigerator Door Screw |
| 30 | Basket, Freezer |
| 31 | Trim, Freezer Basket |
| 32 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 33 | Light Lens, Freezer |
| 34 | Baffle, Liner Top |
| 35 | WP489069 Whirlpool Compactor Screw |
| 36 | RANGE ONLY 40W 120V APPL BULB |
