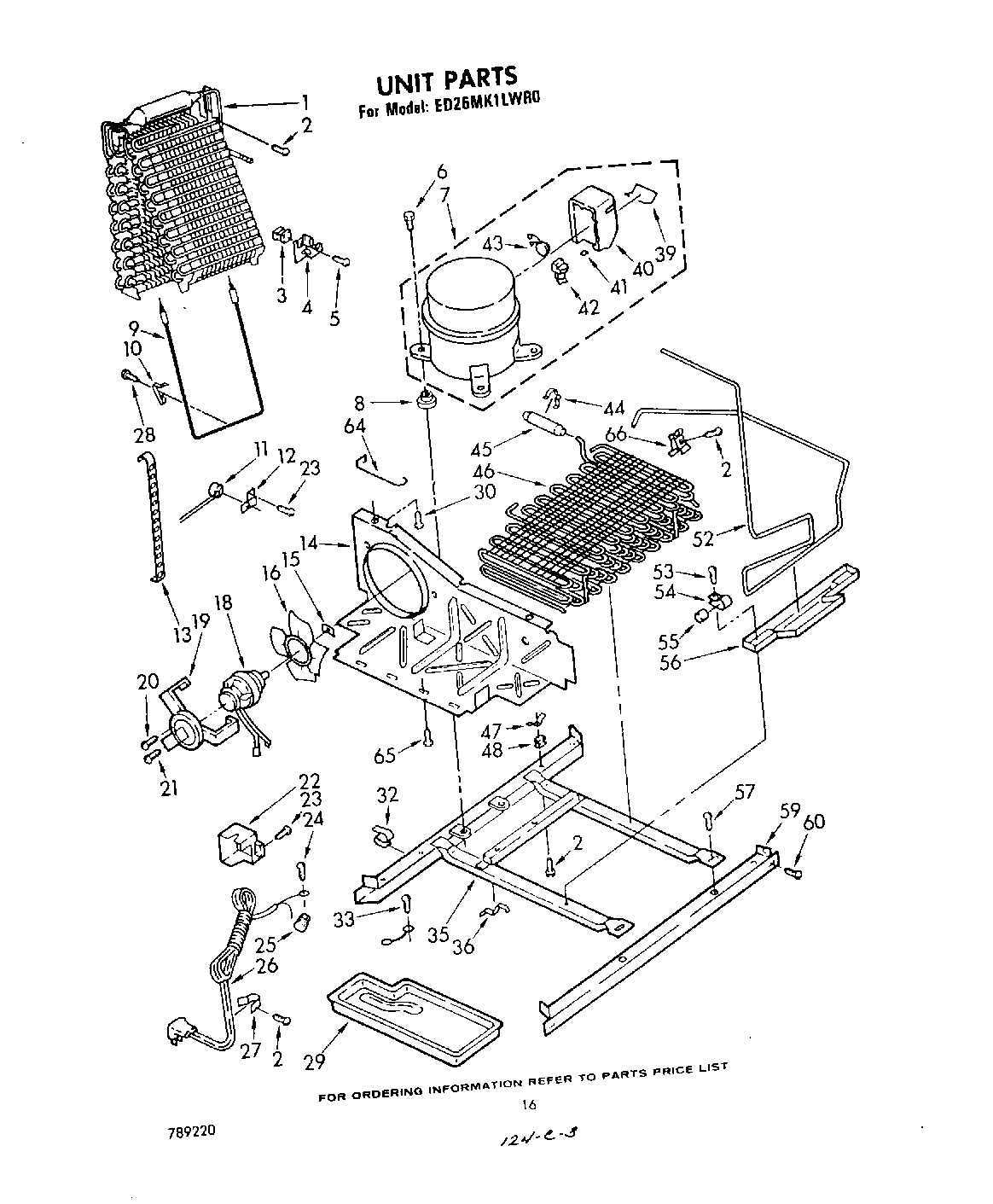

ED26MK1LWR0 09 – UNIT, LIT/OPTIONAL

ED26MK1LWR0 09 – UNIT, LIT/OPTIONAL

Written by

in

ED26MK1LWR0 09 – UNIT, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Toast
	Leveler (Thinner)
	Paint, Spray (13 Oz.) (Platinum)
	paint, spray 13 oz. (coffee)
	285006 Whirlpool Spray
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw
4	Support, Evaporator
5	SCREW
6	Screw, 1/4-28 x 1“ (4)
7	Compressor Kit (Includes Items 39, 40, 41, 42 & 43)
8	Grommet (4)
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	Shield, Evaporator (4)
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	BLADE-FAN
18	833697 Whirlpool Condenser Fan Motor
19	Bracket, Motor
20	Screw, 8-36 x 3/8 (3)
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	Screw, 8-32 x 3/8
25	Wire Connector
26	Cord, Service
27	549193 Whirlpool Refrigerator Power Clamp
28	W11693756 Whirlpool Screw Assembly
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
35	Frame Assembly
36	Clip (2)
39	Spring
40	Case, Relay
41	Bumper
42	Relay (Service Compressor)
42	Relay
43	Overload (Service Compressor)
43	Overload
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
64	Guard, Fan
65	Screw, 8 x 3/8
66	Enamal, Toast (1 Qt. Uncut)
66	Energy Guide
66	WPL 789220
66	WP72107 Whirlpool Touchup
66	Platinum (Uncut)
66	Golden Harvest (Uncut)
66	72113 Whirlpool Touch-Up Paint
66	Consumer Checklist
66	72017 Whirlpool Appliance Touch-Up Paint White
66	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
66	VALVE, ACCESS (5/8“)
66	Almond (Uncut)
66	Tech Sheet (Service Information)
66	Clip, Tube (4)
66	799344 Whirlpool Refrigerator Paint
66	Guide, Use & Care
66	WPL 72112
66	212643 Whirlpool Refrigerator Permagum Sealer
66	WP542638 Whirlpool Refrigerator Grease
66	978030 Whirlpool Refrigerator Valve
66	Paint, Touch-Up 1/2 Oz. (Coffee)
66	72109 Whirlpool Dacor Avocado Touch-Up Paint
66	72032 Whirlpool Touch Up Paint Black
66	WP978025 Whirlpool Refrigerator Valve
66	WPL 876029
66	WPL 799833
66	WPL 799832
66	CEMENT, ALUMILASTIC (1 1/4 OZ.)
66	978027 Whirlpool Refrigerator Primary Valve
66	WP505587 Whirlpool Refrigerator Sealer
66	511873 Whirlpool Refrigerator Paint
66	606755 Whirlpool Refrigerator Bag
66	833938 Whirlpool Refrigerator Terminal
66	Silicone (Spray)
66	TAPE, VINYL (3/4 X 108“)
66	876370 Whirlpool Refrigerator Insulation
66	WP503695 Whirlpool Refrigerator Sealer
66	876764 Whirlpool Refrigerator Primary Valve
66	Enamel, Coffee (1 Qt. Uncut)
66	978026 Whirlpool Refrigerator Primary Valve
66	VALVE, ACCESS (1/2“)
