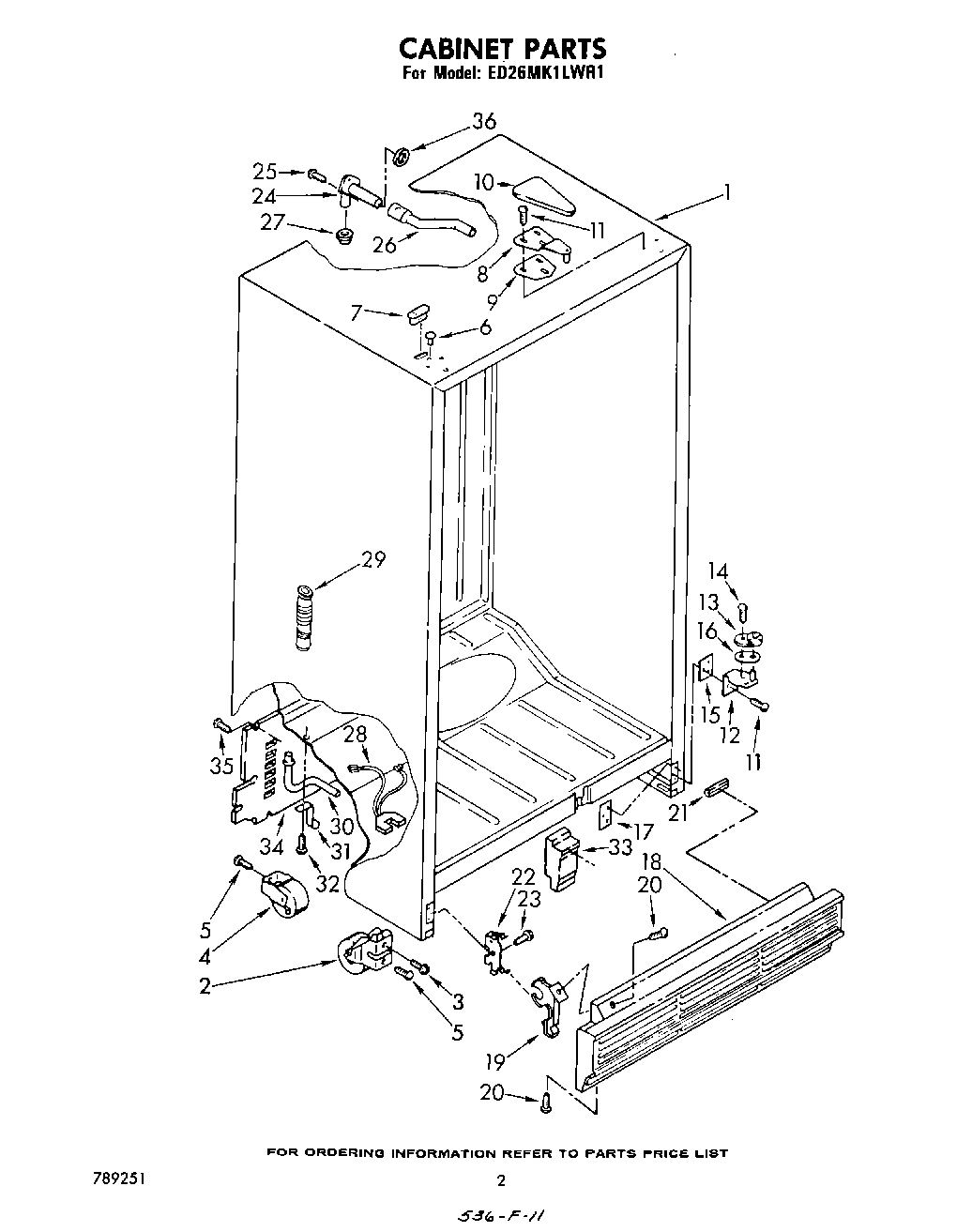

ED26MK1LWR1 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw, 5/16-24 x 1
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6Hole, Plug (Golden Harvest)
6Hole, Plug (Platinum)
6Hole, Plug (Toast)
6Hole, Plug (White)
6Hole Plug (Coffee)
6Hole Plug (Almond)
7Hole Plug (Platinum)
7Hole Plug (White)
7Hole Plug (Toast)
7Hole Plug (Almond)
7Hole Plug (Golden Harvest)
7Hole Plug (Coffee)
8Hinge, Top
9Shim, Hinge Top
10Hinge Cover (Golden Harvest)
101119787 Whirlpool Refrigerator Hinge Cover
10Hinge, Cover (Coffee)
10Hinge Cover (Toast)
11Screw (Repair)
11WP999367 Whirlpool Refrigerator Screw
12Hinge Bottom (R.H)
12Hinge Bottom (L.H)
13WPW10329686 Whirlpool Door Cam Black
14WP486579 Whirlpool Air Conditioner Screw
15Shim, Bottom Hinge
16Shim, Door Closer
17Tap Plate
18Grille, Exterior (Almond)
18Grille, Exterior (Golden Harvest)
18Grille, Exterior (Platinum)
18Grille, Exterior (White)
18Grille, Exterior (Toast)
18Grille, Exterior (Coffee)
19WP944224 Whirlpool Refrigerator Support
20WPL 489085
21Bumper, Grille
22WPL 989068
23W11624204 Whirlpool Screw
24WP2196157 Whirlpool Fill Tube
25WP98165 Whirlpool Screw
26Tube, Water Inlet
27WP487996 Whirlpool Refrigerator Cap Tube
28WPL 548734
29Drain Fitting, Liner
30Extension, Drain Fitting
31Cup, Drain Extension
32Screw, 8-15 x 3/8
33WPL 836372
34WPL 851174
36WP1106508 Whirlpool Refrigerator Gasket
