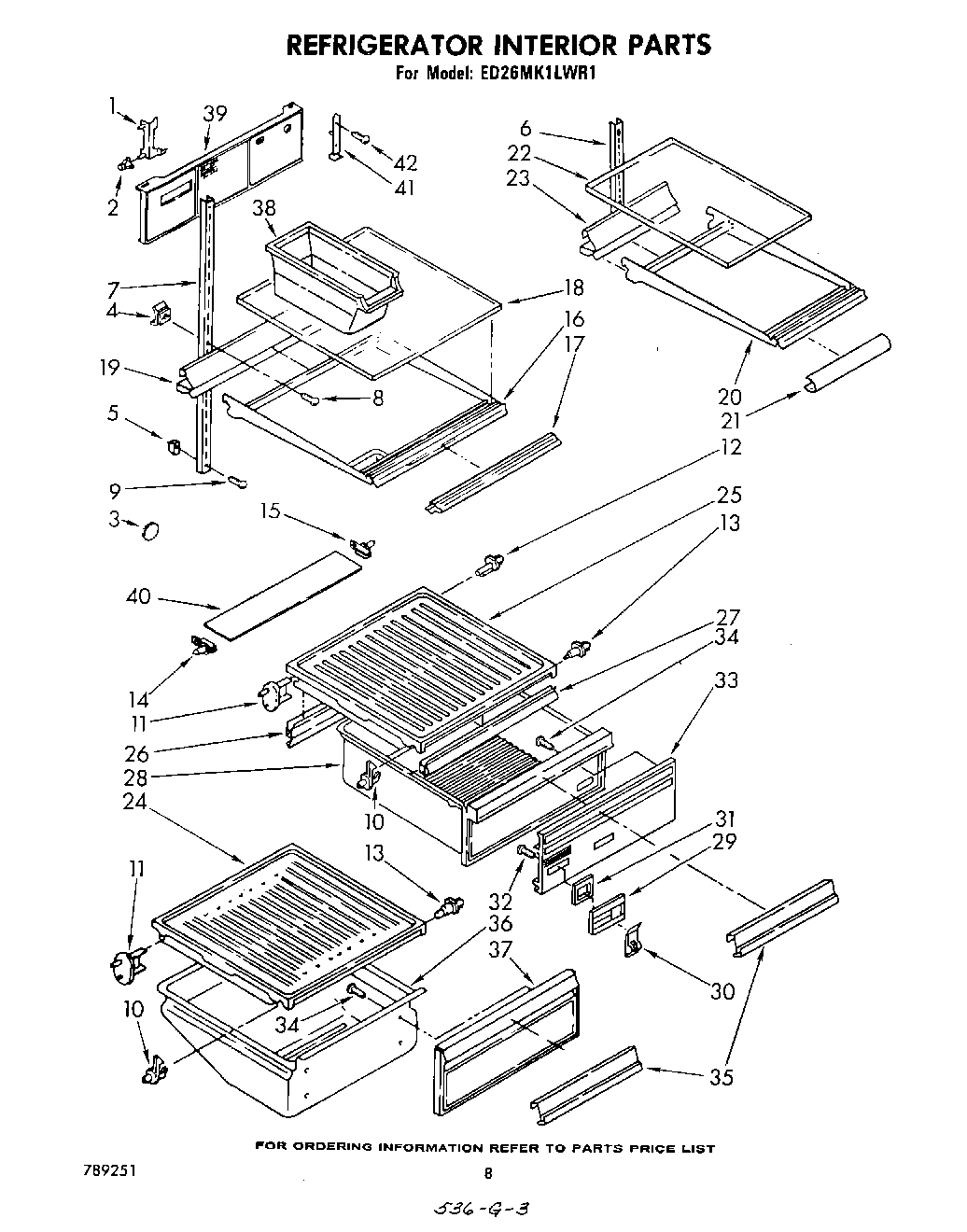

ED26MK1LWR1 05 – REFRIGERATOR INTERIOR

Products

Position	Product
1	Support, Light Lens (L.S.)
2	Clip, Tubular
3	Hole, Plug
4	Screw, Anchor (3)
5	520965 Whirlpool Refrigerator Support
6	Shelf Ladder
7	Shelfladder (2)
8	Screw, 8 x 1-1/4 (3)
9	Screw (Repair)
9	Screw, 8-32 x 1-1/4
10	Shelf, Stud
11	Stud, Shelf
12	Stud
13	Shelf, Stud
14	Stud Light Lens (L.S.)
15	Stud, Light Lens (R.S.)
16	Shelf, Cantilever
17	Shelf Trim, Cantilever
18	Glass, Cantilever Shelf
19	Reflector, Cantilever
20	Shelf, Cantilever
21	Trim, Shelf Front
22	Glass, Cantilever Shelf
23	Reflector, Cantilever Shelf
24	Pan Slide & Cover
24	Pan Slide & Cover (For Platinum Model Only)
25	Pan Slide & Cover (Crisper)
26	Crisper Gasket Rear
27	Crisper Gasket Front
28	Pan Crisper
29	Housing, Humidity Control
30	Slide, Humidity Control
31	Seal, Humidity Control
32	Screw, 6-19 x 7/16
33	Front Cover, Crisper (For Platinum Model Only)
33	Front Cover, Crisper
34	WP488729 Whirlpool Refrigerator Door Screw
34	Screw (Repair)
35	Overlay, Front Cover
36	Pan (Meat)
37	Front Cover, Meat Pan
37	Front Cover, Meat (For Platinum Model Only)
38	WP982704 Whirlpool Refrigerator Container
39	Light Lens
40	Light Lens, Crisper
41	Support, Light Lens
42	W11624204 Whirlpool Screw
