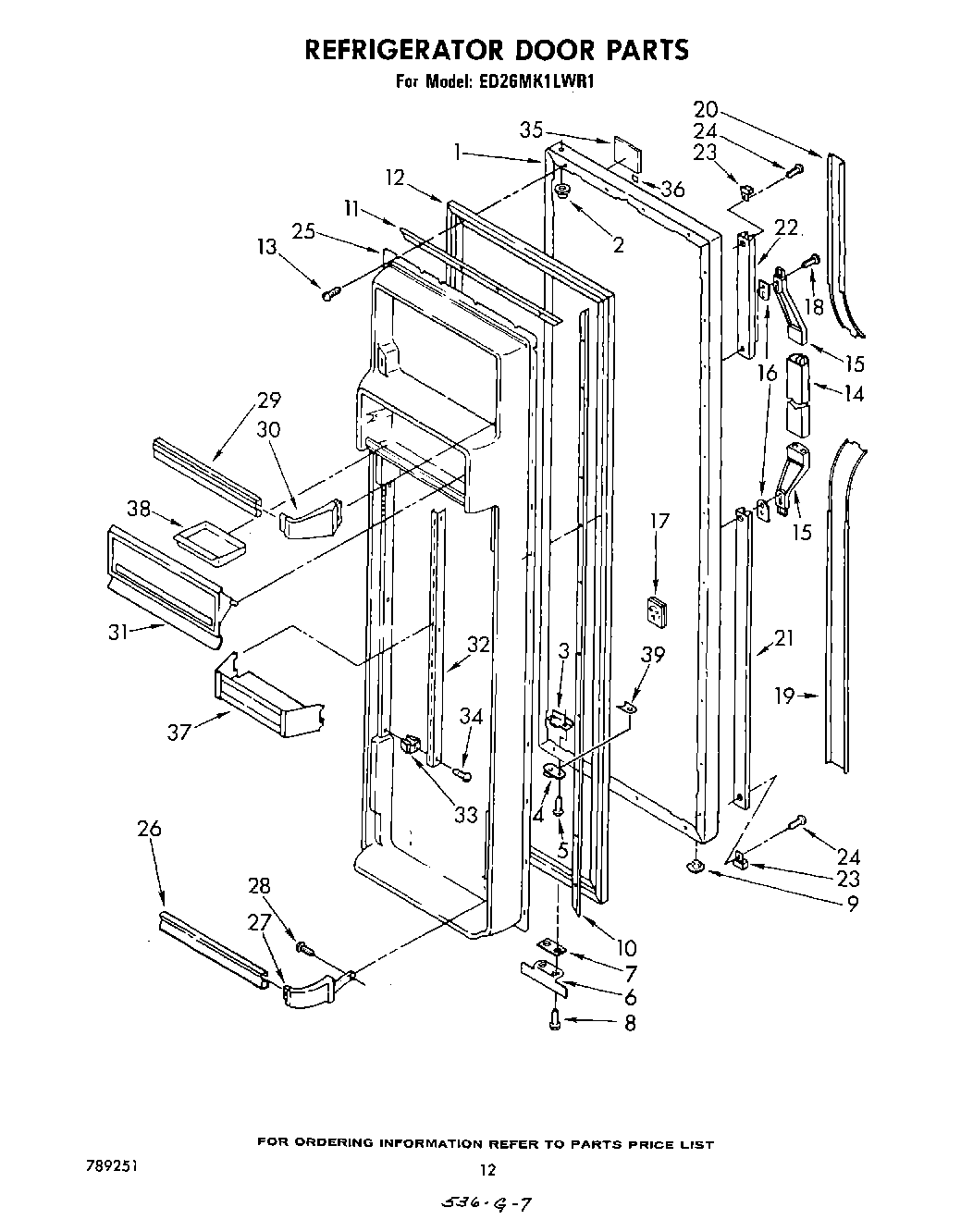

ED26MK1LWR1 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Platinum)
1	Refrigerator Door Panel (Coffee)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (White)
2	Cap, Hinge Sleeve (2)
3	Tap Plate
4	4318165 Whirlpool Refrigerator Door Closure Cam Kit
5	WP489069 Whirlpool Compactor Screw
6	Bracket, Door Stop
7	Shim
8	Screw, 89 x 5/8
9	Hole Plug (2)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic
12	Door Gasket, Magnetic (For Platinum Model Only)
13	SCREW
14	Handle, Center (Platinum)
14	Handle, Center (Toast)
14	Handle, Center (Golden Harvest)
14	Handle, Center (White & Coffee)
14	Handle, Center (Almond)
15	Center End Cap, Handle
16	Shim
17	Screw Anchor (2)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Insert, Handle
20	Insert, Handle
21	Retainer Insert (Bottom)
22	Retainer Insert (Top)
23	End Cap
24	Screw
25	Interior Door Panel (For Platinum Model Only)
25	Interior Door Panel
26	Trim, Door Shelf
27	Retainer, Door Trim
27	Retainer, Door Trim (For Platinum Model Only)
28	WP488787 Whirlpool Refrigerator Screw
29	Trim, Door Shelf
30	WP849996 Whirlpool Refrigerator Endcap Trim
31	Compartment Door
32	Shelf Ladder
33	Expansion Clip
35	Escut
36	Tape Strip
37	WPL 985528
37	WPL 945131
39	WP1104787 Whirlpool Refrigerator Shim
