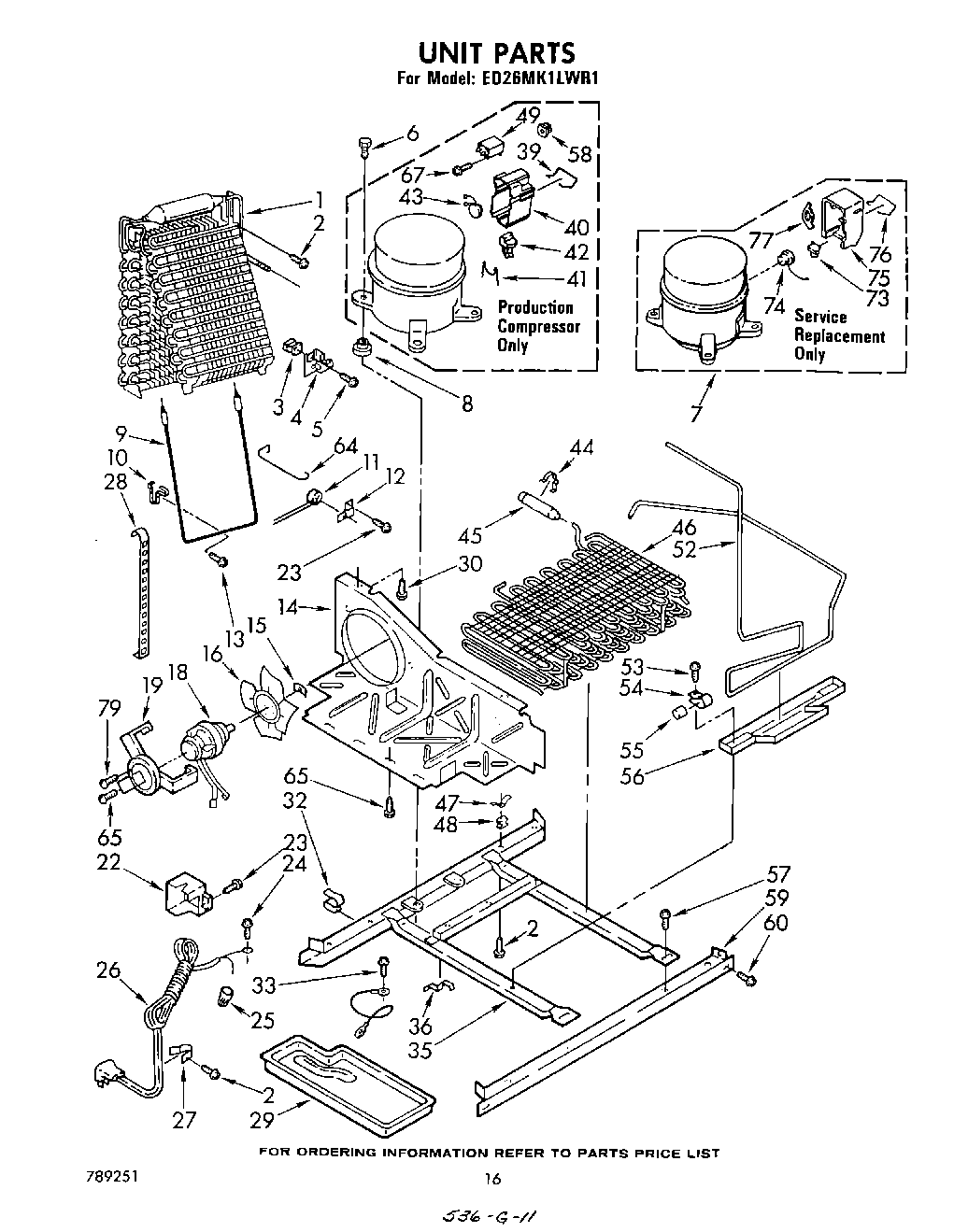

ED26MK1LWR1 09 – UNIT , NOT ILLUSTRATED AND OPTIONAL

ED26MK1LWR1 09 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ED26MK1LWR1 09 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
350942 Whirlpool Spray Paint
Golden Harvest
285006 Whirlpool Spray
paint, spray 13 oz. (coffee)
Paint, Spray (13 Oz.) (Platinum)
WPL LIT789251
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WPL LIT1105013
WPL LIT1100163
WPL LIT1101659
1Evaporator
2W11624204 Whirlpool Screw
3Grommet, Screw
4Support, Evaporator
5SCREW
7Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
8876811 Whirlpool Grommet
9Heater, Defrost
10Clamp, Evaporator
11WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12Clamp
13W11693756 Whirlpool Screw Assembly
14Baffle, Air
15WP486692 Whirlpool Refrigerator Nut
16BLADE-FAN
18833697 Whirlpool Condenser Fan Motor
19Bracket, Motor
22Box, Junction
23WP488729 Whirlpool Refrigerator Door Screw
24Screw, 8-32 x 3/8
25Wire Connector
26Cord, Service
27549193 Whirlpool Refrigerator Power Clamp
28Shield, Evaporator (4)
29Tray, Evaporator
30Screw, 8-15 x 3/8
32Clip, Wire (2)
33303776 Whirlpool Dishwasher Screw
35Frame Assembly
36Clip (2)
39case spring
40Case, Relay
41Spring, Overload
42Relay
43Overload
44Clamp
45W10843121 Whirlpool Refrigerator Tube
46Condenser & Precooler Assembly
47Clamp (4)
48Grommet (4)
49WPW10662129 Whirlpool Refrigerator Run Capacitor
52Exchanger, Heat
53WPW10141625 Whirlpool Refrigerator Screw Assembly
54Clamp Tube
55Dampener (2)
56Pan, Drip
57Screw, 1/4-28 x 1/2 (2)
58Screw Grommet
59Rail, Front
60489340 Whirlpool Refrigerator Screw
64Guard, Fan
65Screw, 8 x 3/8
73Relay
74Overlo
75WPL 549505
76Cover, Spring
77Spring, Overload
79876370 Whirlpool Refrigerator Insulation
79833938 Whirlpool Refrigerator Terminal
79606755 Whirlpool Refrigerator Bag
79Enamel, Coffee (1 Qt. Uncut)
7972032 Whirlpool Touch Up Paint Black
7972109 Whirlpool Dacor Avocado Touch-Up Paint
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79TAPE, VINYL (3/4 X 108“)
79Golden Harvest (Uncut)
79212643 Whirlpool Refrigerator Permagum Sealer
79VALVE, ACCESS (5/8“)
79Paint, Touch-Up 1/2 Oz. (Coffee)
79WPL 72112
79Platinum (Uncut)
79799344 Whirlpool Refrigerator Paint
7972017 Whirlpool Appliance Touch-Up Paint White
79WP503695 Whirlpool Refrigerator Sealer
79876764 Whirlpool Refrigerator Primary Valve
79978026 Whirlpool Refrigerator Primary Valve
79Enamal, Toast (1 Qt. Uncut)
79WP978025 Whirlpool Refrigerator Valve
79978030 Whirlpool Refrigerator Valve
79Screw, 8-36 x 3/8 (3)
7972113 Whirlpool Touch-Up Paint
79Silicone (Spray)
79VALVE, ACCESS (1/2“)
79CEMENT, ALUMILASTIC (1 1/4 OZ.)
79WPL 799832
79Almond (Uncut)
79WPL 799833
79WPL 876029
79WP72107 Whirlpool Touchup
79WP542638 Whirlpool Refrigerator Grease
79978027 Whirlpool Refrigerator Primary Valve
79WP505587 Whirlpool Refrigerator Sealer
79511873 Whirlpool Refrigerator Paint
