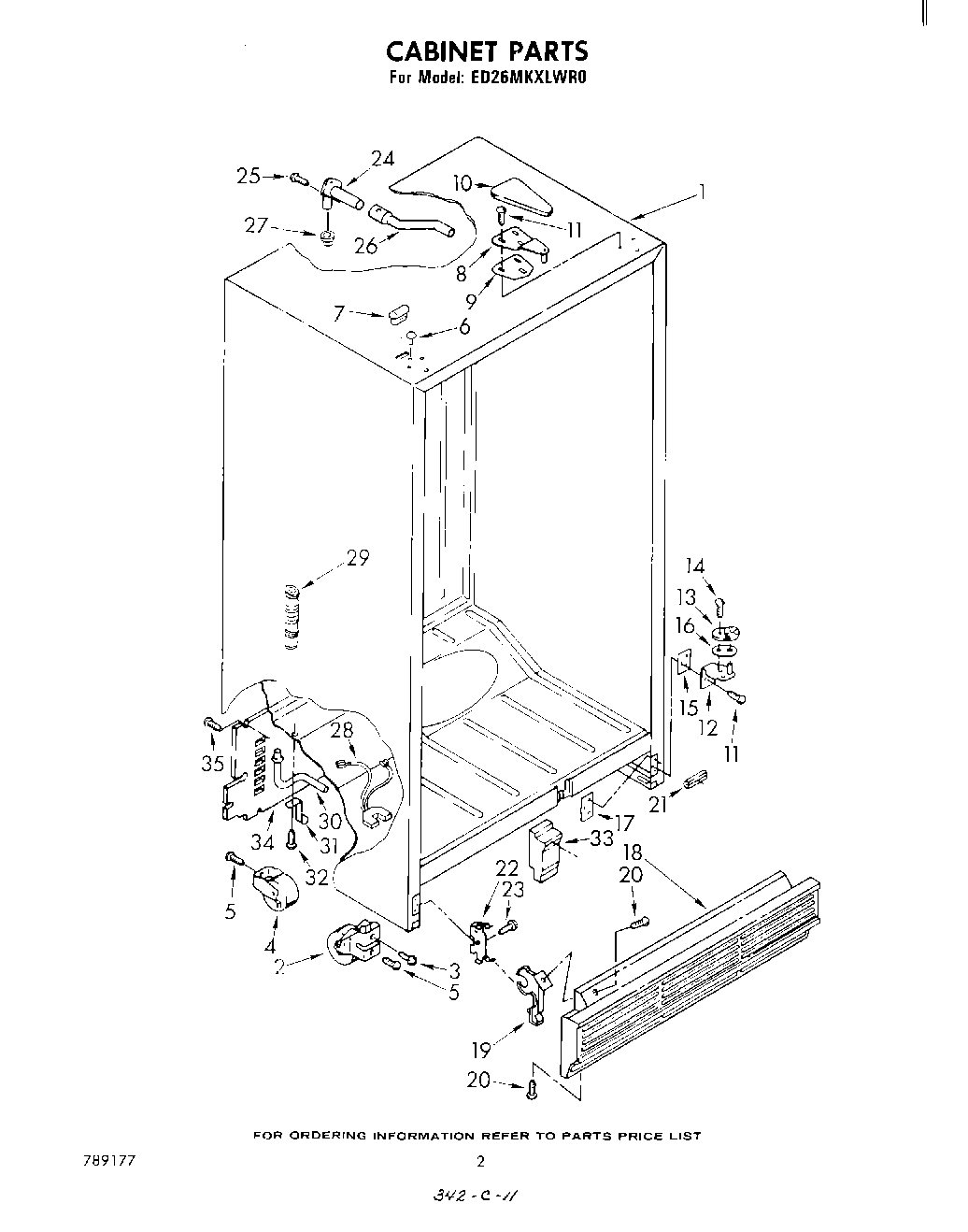

ED26MKXLWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hole Plug (Almond)
6	Hole, Plug (Golden Harvest)
6	Hole Plug (New Avocado)
6	Hole, Plug (Platinum)
6	Hole Plug (Coffee)
6	Hole, Plug (White)
6	Hole, Plug (Toast)
7	Hole Plug (Toast)
7	Hole Plug (White)
7	Hole Plug (Coffee)
7	Hole Plug (New Avocado)
7	Hole Plug (Golden Harvest)
7	Hole Plug (Almond)
7	Hole Plug (Platinum)
8	Hinge, Top
9	Shim, Hinge Top
10	Hinge Cover (New Avocado)
10	1119787 Whirlpool Refrigerator Hinge Cover
10	Hinge Cover (Golden Harvest)
10	Hinge Cover (Toast)
10	Hinge, Cover (Coffee)
11	WP999367 Whirlpool Refrigerator Screw
11	Screw (Repair)
12	Hinge Bottom (R.H)
12	Hinge Bottom (L.H)
13	WPW10329686 Whirlpool Door Cam Black
14	WP486579 Whirlpool Air Conditioner Screw
15	Shim, Bottom Hinge
16	Shim, Door Closer
17	Tap Plate
18	Grille, Exterior (Toast)
18	Grille, Exterior (Almond)
18	Grille, Exterior (New Avocado)
18	Grille, Exterior (Golden Harvest)
18	Grille, Exterior (Coffee)
18	Grille, Exterior (White)
18	Grille, Exterior (Platinum)
19	WP944224 Whirlpool Refrigerator Support
20	WPL 489085
21	Bumper, Grille
22	WPL 989068
23	W11624204 Whirlpool Screw
24	WP2196157 Whirlpool Fill Tube
25	WP98165 Whirlpool Screw
26	Tube, Water Inlet
27	WP487996 Whirlpool Refrigerator Cap Tube
28	WPL 548734
29	Drain Fitting, Liner
30	Extension, Drain Fitting
31	Cup, Drain Extension
32	Screw, 8-15 x 3/8
33	WPL 836372
34	WPL 851174
