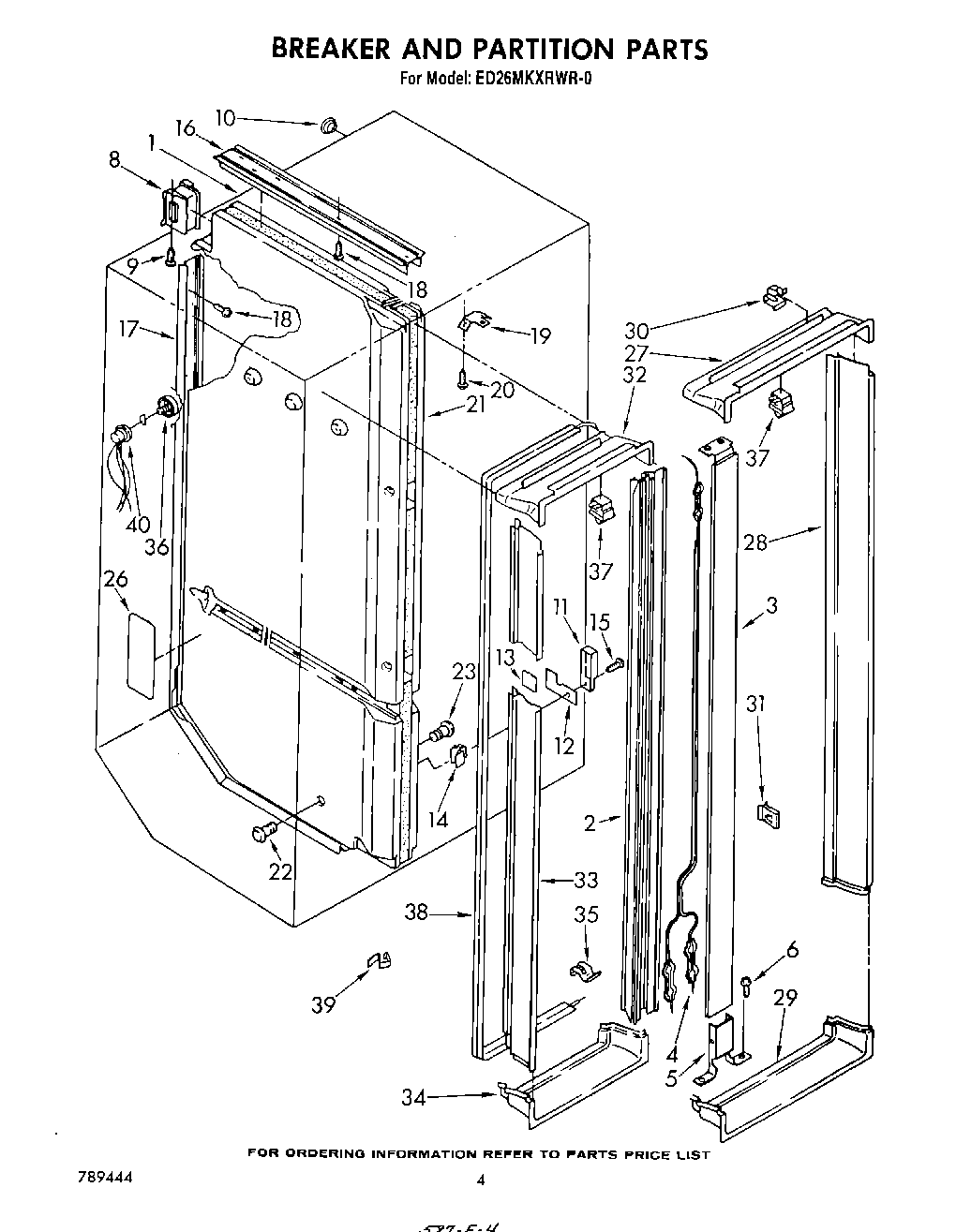

ED26MKXRWR0 03 – BREAKER AND PARTITION

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Break Mullion, Frame
3	Mullion, Front (White)
3	Mullion, Front (Platinum)
3	Mullion, Front (Toast)
3	Mullion, Front (Almond)
3	Mullion, Front (Golden Harvest)
4	Heater, Mullion
5	Mullion, Bracket
6	WP308685 Whirlpool Microwave Screw
6	WP488729 Whirlpool Refrigerator Door Screw
8	Control Connector & Gasket Assembly
9	WP488163 Whirlpool Refrigerator Screw
10	Grommet, Wiring
11	Escutcheon Meat
12	Slide, Meat Pan Control
13	Pad, Foam
14	Expansion Clip
15	Screw, 8-15 x 1/2 (4)
16	Track, Divider (Top)
17	Track, Divider (Back & Bottom)
18	W11624204 Whirlpool Screw
19	Retainer Bracket, Divider
20	SCREW
21	Divider, Mullion
22	Retainer, Hole Insert
23	Insert, Hole
26	Shield, Divider
27	Breaker, Trim Top Refrigerator
28	Breaker Trim, (R.S.) Refrigerator
29	Breaker Trim, Bottom Refrigerator
30	Breaker, Clip
31	Breaker Trim, Clip
32	Trim, Freezer Breaker (Top)
33	Breaker Trim, Freezer (L.S.)
34	Breaker Trim, Freezer (Bottom)
35	Breaker Trim, Bottom Clip
36	Receptacle Cap
37	W11384469 Whirlpool Door Switch
38	Heater, Stile
39	Stile Clip, Retainer
40	Wiring, Ice Maker
