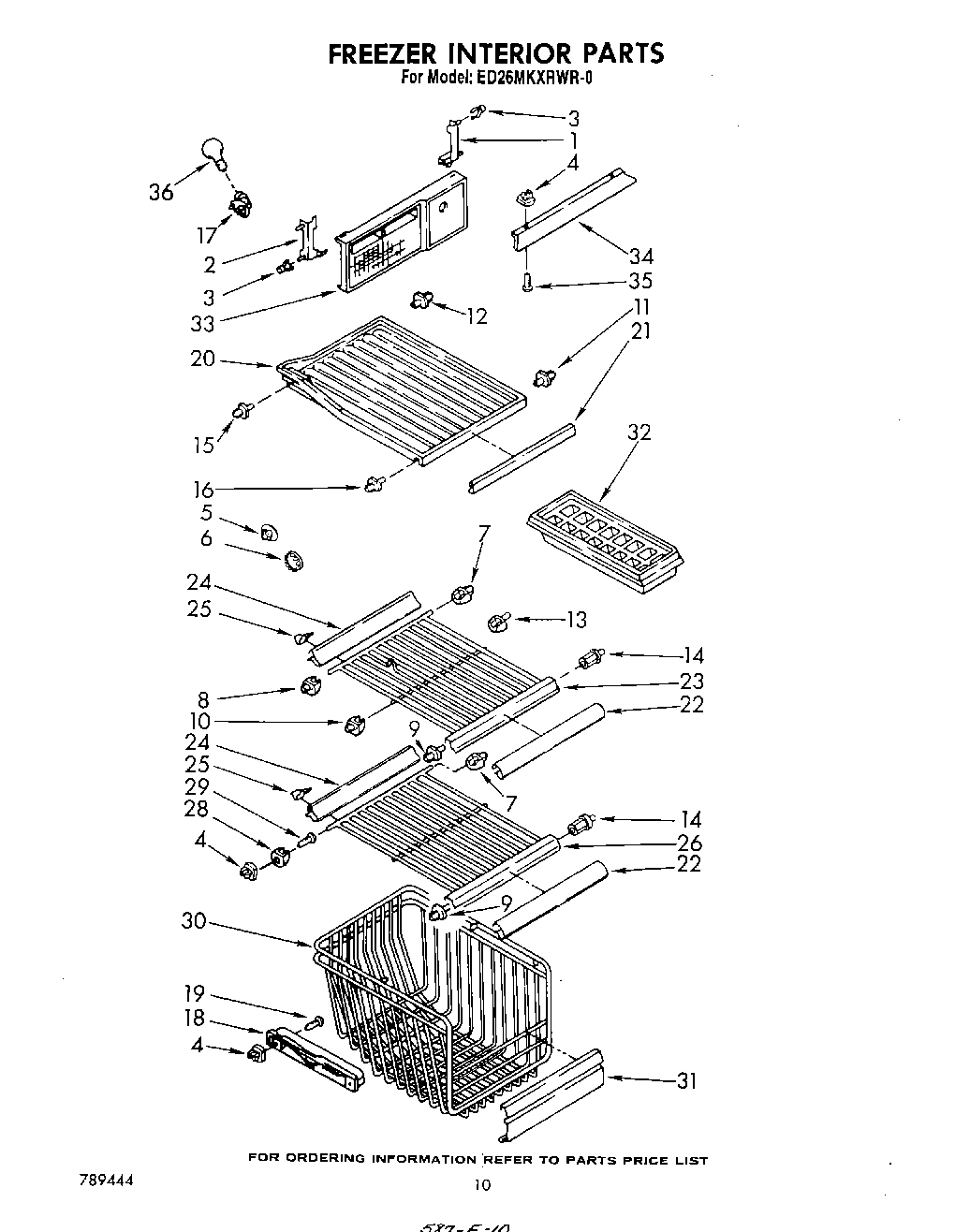

ED26MKXRWR0 06 – FREEZER INTERIOR

Products

Position	Product
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Grommet
5	Hole, Plug
6	Hole, Plug
7	Shelf, Saddle (R.S.)
8	Shelf Stud, Saddle
9	Shelf, Stud (2)
10	Shelf Stud
11	Stud, Shelf
12	Stud, Shelf
13	Stud, Shelf
14	Shelf, Stud
15	Stud, Shelf (2)
16	Shelf, Stud
17	4387478 Whirlpool Refrigerator Light Socket
18	Track, Shelf (L.S.)
18	Track, Shelf (R.S.)
19	W11693756 Whirlpool Screw Assembly
20	Solid Shelf (For Platinum Model Only)
21	Trim, Shelf
22	Trim Shelf, Front
23	Wire Shelf
24	Reflector, Shelf
25	Clip, Reflector
26	Shelf, Freezer
28	Shelf Stud, Saddle L.S.
29	WP488729 Whirlpool Refrigerator Door Screw
30	Basket, Freezer
31	Trim, Freezer Basket
32	WP841180A Whirlpool Microwave Glass Turntable Tray
33	Light Lens, Freezer
34	Baffle, Liner Top
35	WP489069 Whirlpool Compactor Screw
36	RANGE ONLY 40W 120V APPL BULB
