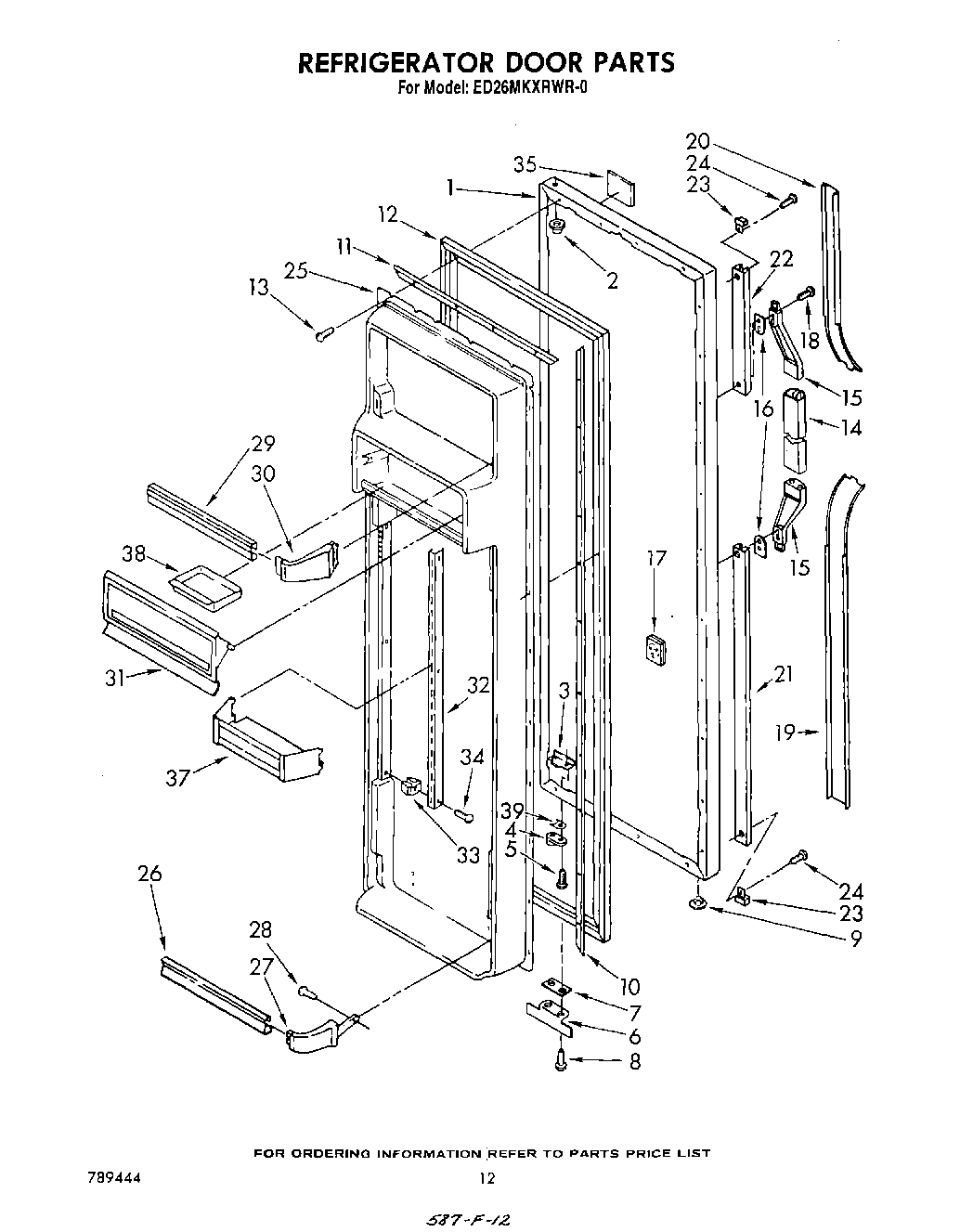

ED26MKXRWR0 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (White)
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator Door Panel (Platinum)
1	Refrigerator, Door Panel (Toast)
2	Cap, Hinge Sleeve (2)
3	Tap Plate
4	4318165 Whirlpool Refrigerator Door Closure Cam Kit
5	WP489069 Whirlpool Compactor Screw
6	Bracket, Door Stop
7	Shim
8	Screw, 89 x 5/8
9	Hole Plug (2)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic (For Platinum Model Only)
13	SCREW
14	Handle, Center
14	Handle, Center (For Platinum Model Only)
15	Center End Cap, Handle
16	Shim
17	Screw Anchor (2)
19	Insert, Handle (Bottom) (Almond)
19	Insert, Handle (Bottom) (White)
19	Insert, Handle (Bottom) (Golden Wheat)
19	Insert, Handle (Bottom) (Toast)
19	Insert, Handle (Bottom) (Platinum)
20	Insert, Handle (Top) (Toast)
20	Insert, Handle (Top) (Platinum)
20	Insert, Handle (Top) (White)
20	Insert Handle (Top) (Golden Wheat)
20	Insert, Handle (Top) (Almond)
21	Retainer Insert (Bottom)
22	Retainer Insert (Top)
23	End Cap
24	Screw
25	Interior Door Panel (For Platinum Model Only)
26	Trim, Door Shelf
27	Retainer, Door Trim (For Platinum Model Only)
28	WP488787 Whirlpool Refrigerator Screw
29	Trim, Door Shelf
30	WP849996 Whirlpool Refrigerator Endcap Trim
31	Compartment, Door Utility
32	Shelf Ladder
33	Expansion Clip
34	WP488729 Whirlpool Refrigerator Door Screw
35	WPL 1110077
35	Escut
37	WPL 1108920
39	WP1104787 Whirlpool Refrigerator Shim
