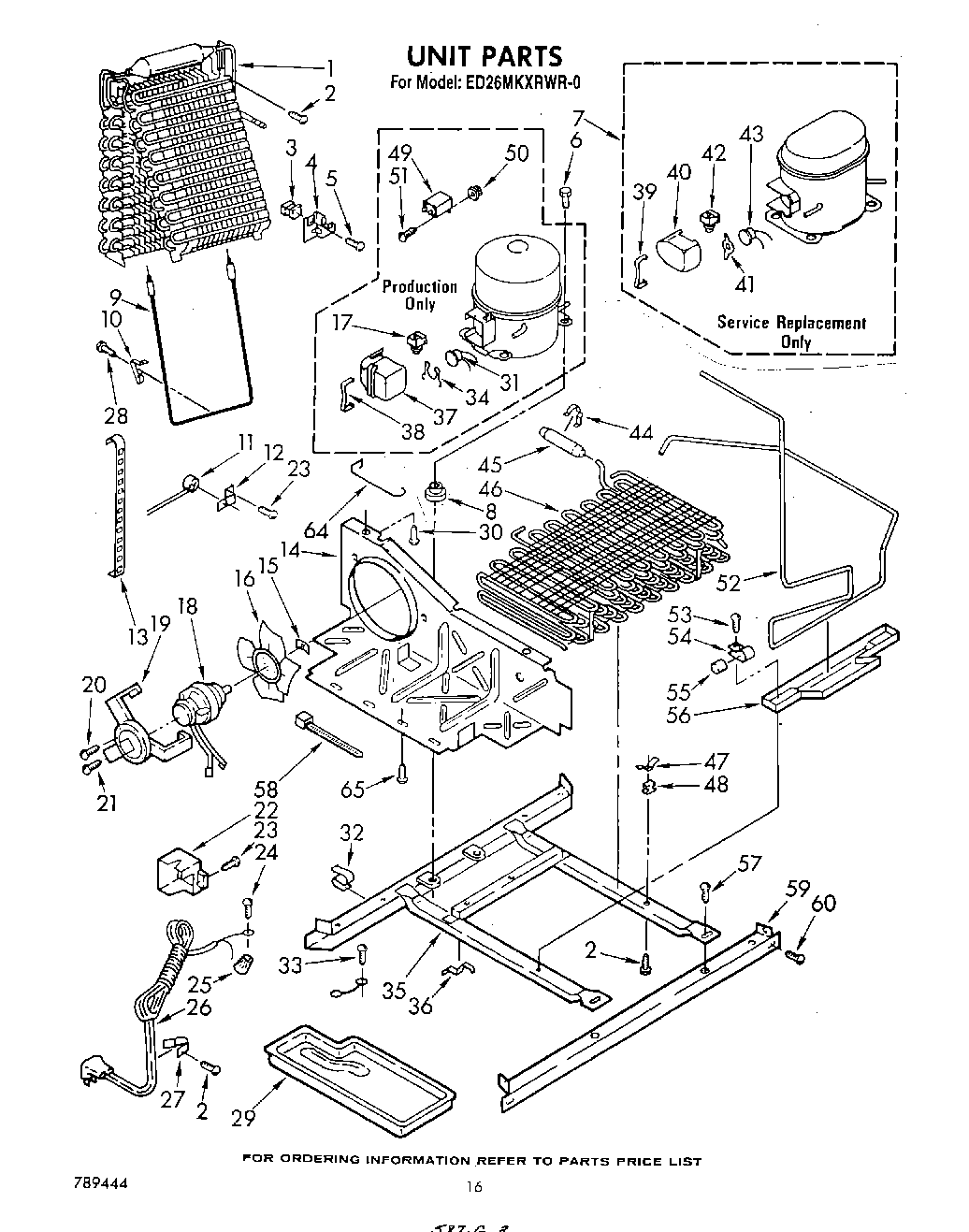

ED26MKXRWR0 09 – UNIT , NOT ILLUSTRATED AND OPTIONAL

ED26MKXRWR0 09 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ED26MKXRWR0 09 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 677967
	Golden Harvest
	WPL 677821
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	WPL 677818
	WPL 677813
	285006 Whirlpool Spray
	WPL 677971
	350942 Whirlpool Spray Paint
	WPL LIT789444
	350956 Whirlpool Spray Assembly
	WPL LIT1108968
	Leveler (Thinner)
	WPL LIT1108966
	WPL LIT1105013
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw
4	Support, Evaporator
5	SCREW
7	Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
8	876811 Whirlpool Grommet
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	Shield, Evaporator (4)
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	Fan, Blade
17	Relay
18	833697 Whirlpool Condenser Fan Motor
19	Bracket, Motor
20	681390 Whirlpool Refrigerator Screw
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	Screw, 8-32 x 3/8
25	Wire Connector
26	Cord, Service
27	549193 Whirlpool Refrigerator Power Clamp
28	W11693756 Whirlpool Screw Assembly
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
31	Overload
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
34	Spring, Overload
35	Frame Assembly
36	Clip (2)
37	Case, Relay
38	case spring
39	Cover, Spring
40	WPL 549505
41	Spring, Overload
42	Relay
43	Overload
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
49	WPW10662129 Whirlpool Refrigerator Run Capacitor
50	Screw Grommet
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
58	Strap
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
64	Guard, Fan
65	WP503695 Whirlpool Refrigerator Sealer
65	WP505587 Whirlpool Refrigerator Sealer
65	978027 Whirlpool Refrigerator Primary Valve
65	WP542638 Whirlpool Refrigerator Grease
65	978030 Whirlpool Refrigerator Valve
65	WP978025 Whirlpool Refrigerator Valve
65	978026 Whirlpool Refrigerator Primary Valve
65	876764 Whirlpool Refrigerator Primary Valve
65	Silicone (Spray)
65	876370 Whirlpool Refrigerator Insulation
65	833938 Whirlpool Refrigerator Terminal
65	606755 Whirlpool Refrigerator Bag
65	511873 Whirlpool Refrigerator Paint
65	799344 Whirlpool Refrigerator Paint
65	72017 Whirlpool Appliance Touch-Up Paint White
65	VALVE, ACCESS (1/2“)
65	CEMENT, ALUMILASTIC (1 1/4 OZ.)
65	TAPE, VINYL (3/4 X 108“)
65	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
65	72113 Whirlpool Touch-Up Paint
65	Golden Harvest (Uncut)
65	Screw, 8 x 3/8
65	Enamal, Toast (1 Qt. Uncut)
65	VALVE, ACCESS (5/8“)
65	Almond (Uncut)
65	Platinum (Uncut)
65	WP72107 Whirlpool Touchup
65	72032 Whirlpool Touch Up Paint Black
65	WPL 72112
65	WPL 876029
65	WPL 799833
65	WPL 799832
65	212643 Whirlpool Refrigerator Permagum Sealer
