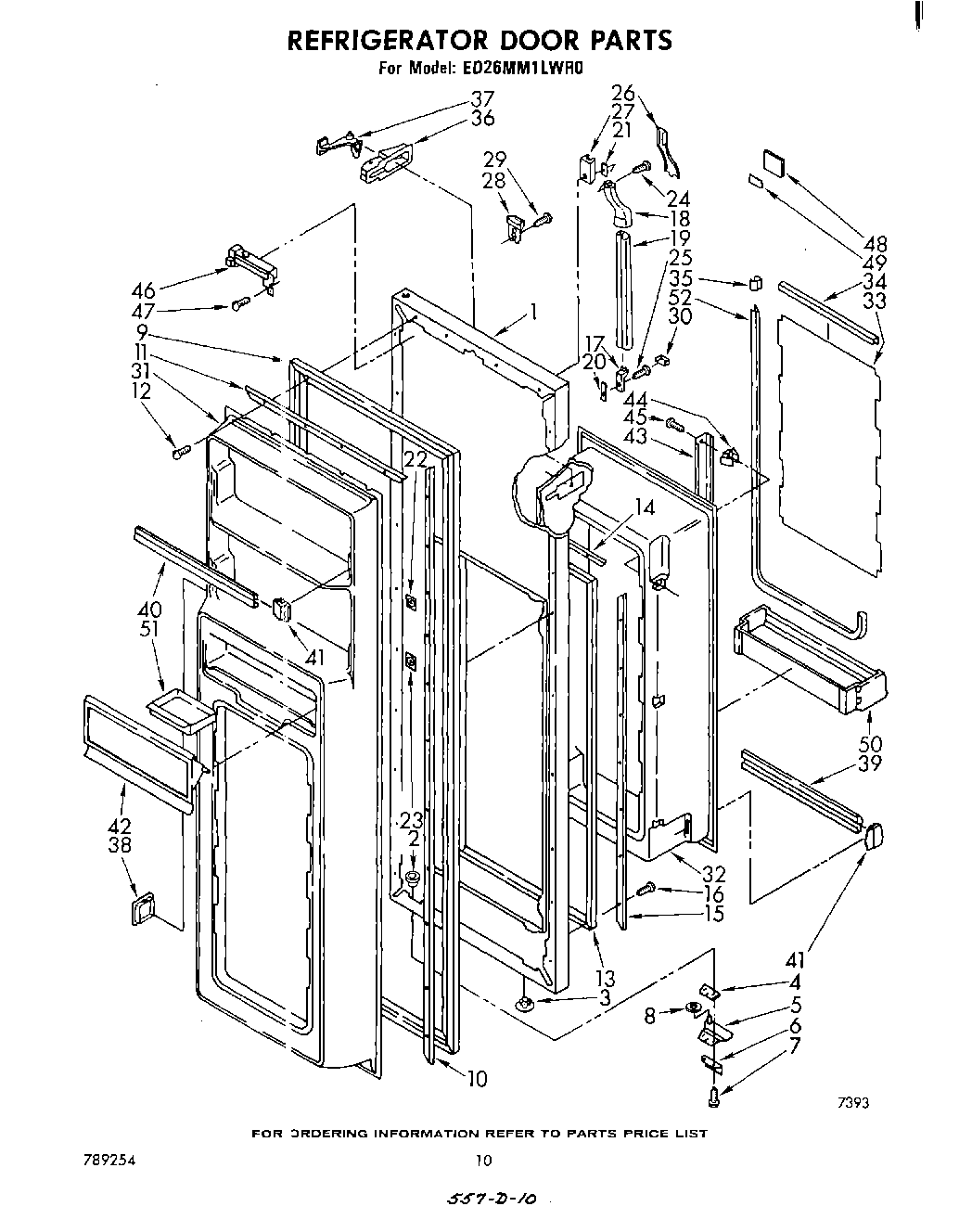

ED26MM1LWR0 06 – REFRIGERATOR DOORadmin2025-04-26T09:42:41+00:00ED26MM1LWR0 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Exterior Door Panel (Toast) |
| 1 | Exterior Door Panel (Coffee) |
| 1 | Exterior Door Panel (Platinum) |
| 1 | Exterior Door Panel (White) |
| 1 | Exterior Door Panel (Golden Harvest) |
| 1 | Exterior Door Panel (Almond) |
| 2 | Cap, Hinge Sleeve (2) |
| 3 | Hole Plug (2) |
| 4 | Shim, Bottom Hinge |
| 5 | Hinge, Bottom |
| 6 | Bracket, Door Stop |
| 7 | WP250830 Whirlpool Refrigerator Screw |
| 8 | Washer |
| 9 | Door Gasket, Magnetic (For Platinum Model Only) |
| 9 | Door Gasket, Magnetic |
| 10 | Retainer, Gasket Side |
| 11 | Retainer, Top & Bottom |
| 12 | SCREW |
| 13 | Gasket, Seal |
| 13 | Gasket, Seal |
| 14 | Reinforcement Strip, Top & Bottom (2) |
| 15 | Reinforcement Strip, Side |
| 16 | WP489069 Whirlpool Compactor Screw |
| 17 | Handle End, |
| 18 | Center End Cap, Handle |
| 19 | Handle, Center (Almond) |
| 19 | Handle, Center (White, Coffee) |
| 19 | Handle, Center (Golden Harvest) |
| 19 | Center, Handle (Platinum) |
| 19 | Center, Handle (Toast) |
| 20 | Shim, Handle |
| 21 | Shim |
| 22 | WP939101 Whirlpool Refrigerator Plate |
| 23 | Screw Anchor (2) |
| 25 | WP488729 Whirlpool Refrigerator Door Screw |
| 26 | Insert, Handle |
| 27 | Retainer Insert |
| 28 | End Cap |
| 29 | Screw |
| 30 | Cover, End Cap |
| 31 | Interior Door Panel |
| 31 | Interior Door Panel |
| 32 | WPL 945170 |
| 32 | Interior Door Panel, Storage |
| 33 | Panel, Decorative |
| 34 | Trim, Decorative |
| 35 | Cap Trim Joint |
| 36 | Housing, Rocker Arm |
| 36 | WPL 944463 |
| 37 | WPL 944464 |
| 37 | Rocker Arm |
| 38 | WPL 944465 |
| 38 | Escutcheon, Panel Opening |
| 39 | WPL 986448 |
| 40 | WPL 988746 |
| 41 | WP839904 Whirlpool Refrigerator Endcap Trim |
| 42 | WPL 935352 |
| 43 | Shelf Ladder |
| 44 | Expansion Clip |
| 46 | WPL 840847 |
| 47 | W11624204 Whirlpool Screw |
| 48 | Escut |
| 49 | Tape Strip |
| 50 | WPL 986449 |
| 50 | WPL 945147 |
| 52 | WPL 986453 |
