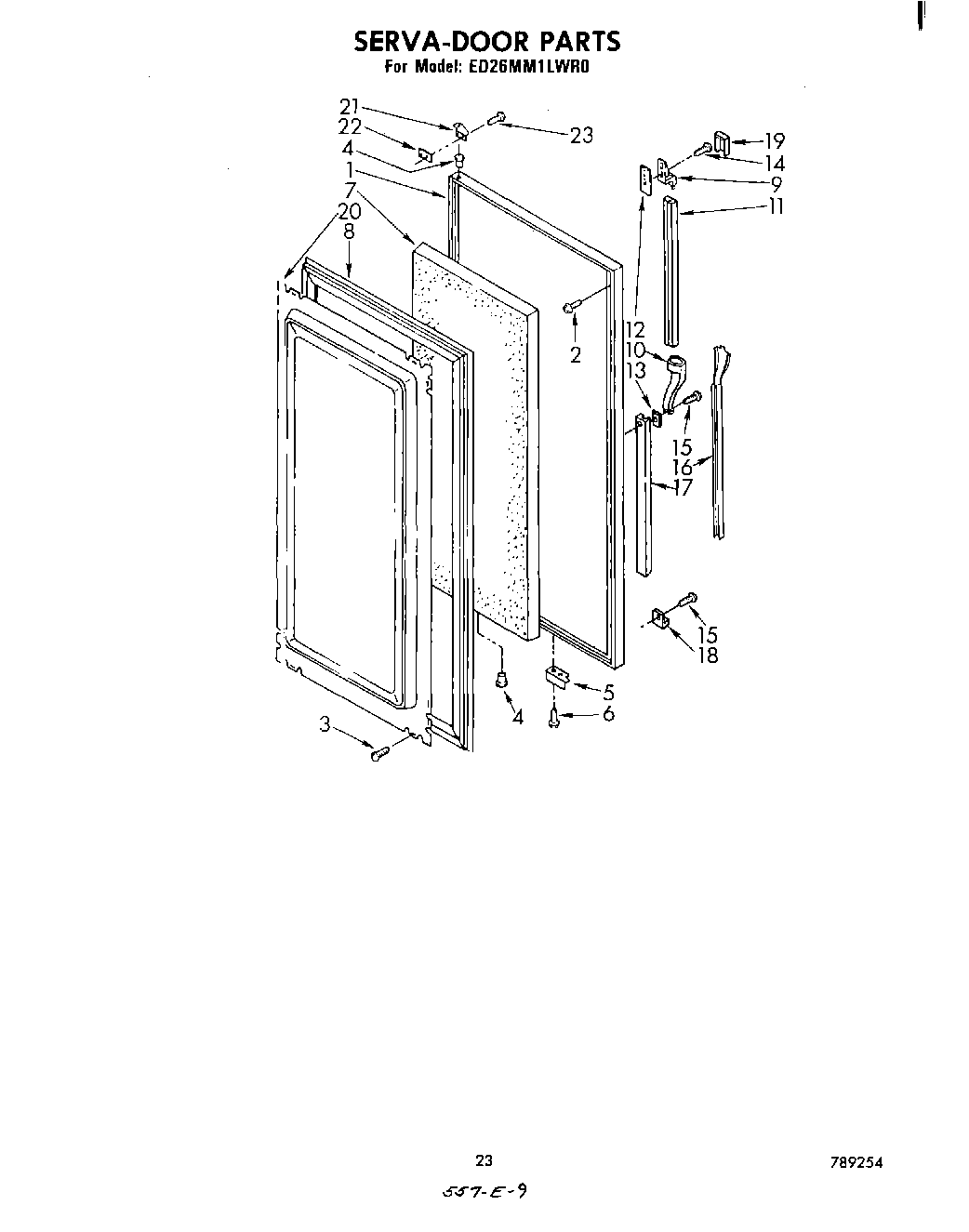

ED26MM1LWR0 13 – SERVA-DOOR , NOT ILLUSTRATED AND OPIONAL

ED26MM1LWR0 13 – SERVA-DOOR , NOT ILLUSTRATED AND OPIONAL

Written by

in

ED26MM1LWR0 13 – SERVA-DOOR , NOT ILLUSTRATED AND OPIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	paint, spray 13 oz. (coffee)
	285006 Whirlpool Spray
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest
	350942 Whirlpool Spray Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
1	Panel, Servadoor (Platinum)
1	Panel, Servadoor (Toast)
1	Panel, Servadoor (Coffee)
1	Panel, Servadoor (Almond)
1	Panel, Servadoor (White)
1	Panel, Servadoor (Golden Harvest)
2	W11624204 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Sleeve, Hinge Pivot
5	Bracket, Door Stop
6	Screw, 8 x 7/16
6	Screw (Repair)
7	Insulation, Servadoor
8	Gasket, Serva-Door
8	Gasket, Serva-Door
9	Handle End,
10	Center End Cap, Handle
11	Handle, Center (White, Coffee)
11	Handle, Center (Almond)
11	Center, Handle (Toast)
11	Center, Handle (Platinum)
11	Handle, Center (Golden Harvest)
12	Shim, Handle
13	Shim
14	Screw, 8-32 x 7/16
15	WPL 488844
16	Insert, Handle
17	Retainer, Insert
18	End Cap, Retainer
19	Cover, End Cap
20	Interior Panel (Servadoor)
20	Interior Panel (Servadoor)
21	Hinge, Top
22	Shim, Hinge Top
23	Enamal, Toast (1 Qt. Uncut)
23	Platinum (Uncut)
23	WPL 72112
23	72113 Whirlpool Touch-Up Paint
23	212643 Whirlpool Refrigerator Permagum Sealer
23	Golden Harvest (Uncut)
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	WPL 789254
23	Energy Guide
23	Tech Sheet (Service Information)
23	72017 Whirlpool Appliance Touch-Up Paint White
23	799344 Whirlpool Refrigerator Paint
23	WP72107 Whirlpool Touchup
23	WPL 677821
23	Almond (Uncut)
23	WPL 944011
23	511873 Whirlpool Refrigerator Paint
23	606755 Whirlpool Refrigerator Bag
23	72032 Whirlpool Touch Up Paint Black
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	WPL 799832
23	WPL 677818
23	CEMENT, ALUMILASTIC (1 1/4 OZ.)
23	WPL 677967
23	Enamel, Coffee (1 Qt. Uncut)
23	Screw (Repair)
23	Silicone (Spray)
23	TAPE, VINYL (3/4 X 108“)
23	WP542638 Whirlpool Refrigerator Grease
23	WPL 799833
23	WP505587 Whirlpool Refrigerator Sealer
23	WP503695 Whirlpool Refrigerator Sealer
23	WPL 677813
23	876370 Whirlpool Refrigerator Insulation
23	833938 Whirlpool Refrigerator Terminal
23	WPL 876029
