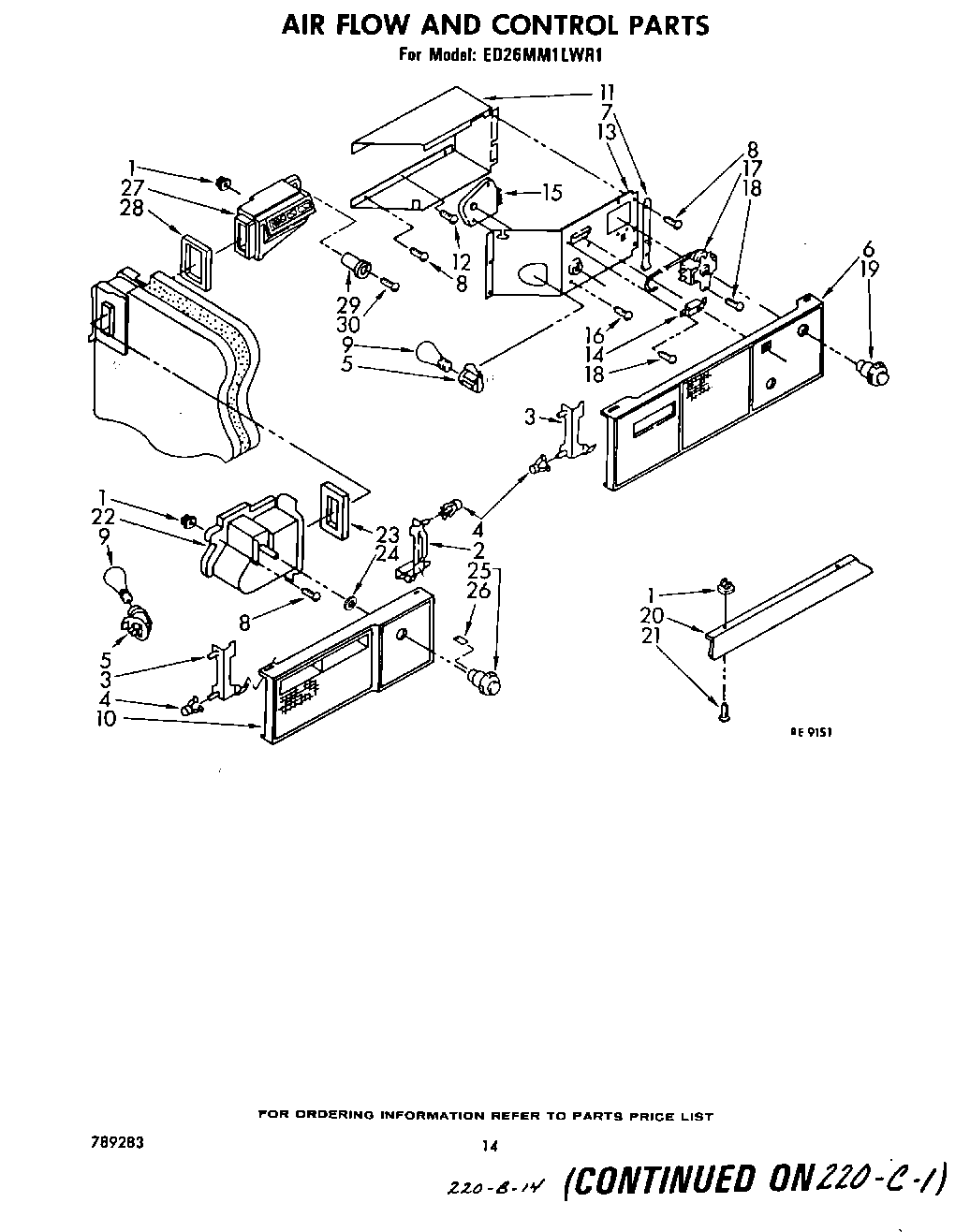

ED26MM1LWR1 08 – AIRFLOW AND CONTROL

Products

PositionProduct
1Grommet
2Support, Light Lens (R.S.)
3Support, Light Lens (L.S.)
4Clip, Tubular
54387478 Whirlpool Refrigerator Light Socket
6Light Lens
7Support, Light Lens
8W11624204 Whirlpool Screw
9RANGE ONLY 40W 120V APPL BULB
10Light Lens, Freezer
11Box, Control
12Screw, 8-32 x 3/8
13Control Box Front
14WP938213 Whirlpool Refrigerator Power Switch
15Defrost Timer
16WP3388228 Whirlpool Screw
17Motor
18Screw, 8 x 3/8
19Knob, Temperature Control
20Baffle, Liner Top
21WP489069 Whirlpool Compactor Screw
22Air Scoop Assembly
23Gasket, Air Scoop
24Retainer, Damper
25Control Knob
26Knob, Retainer
27Air Diffuser Assembly
28Gasket, Air Diffuser
29836667 Whirlpool Refrigerator Spacer
30Screw, 8 x 1-1/4 (3)
