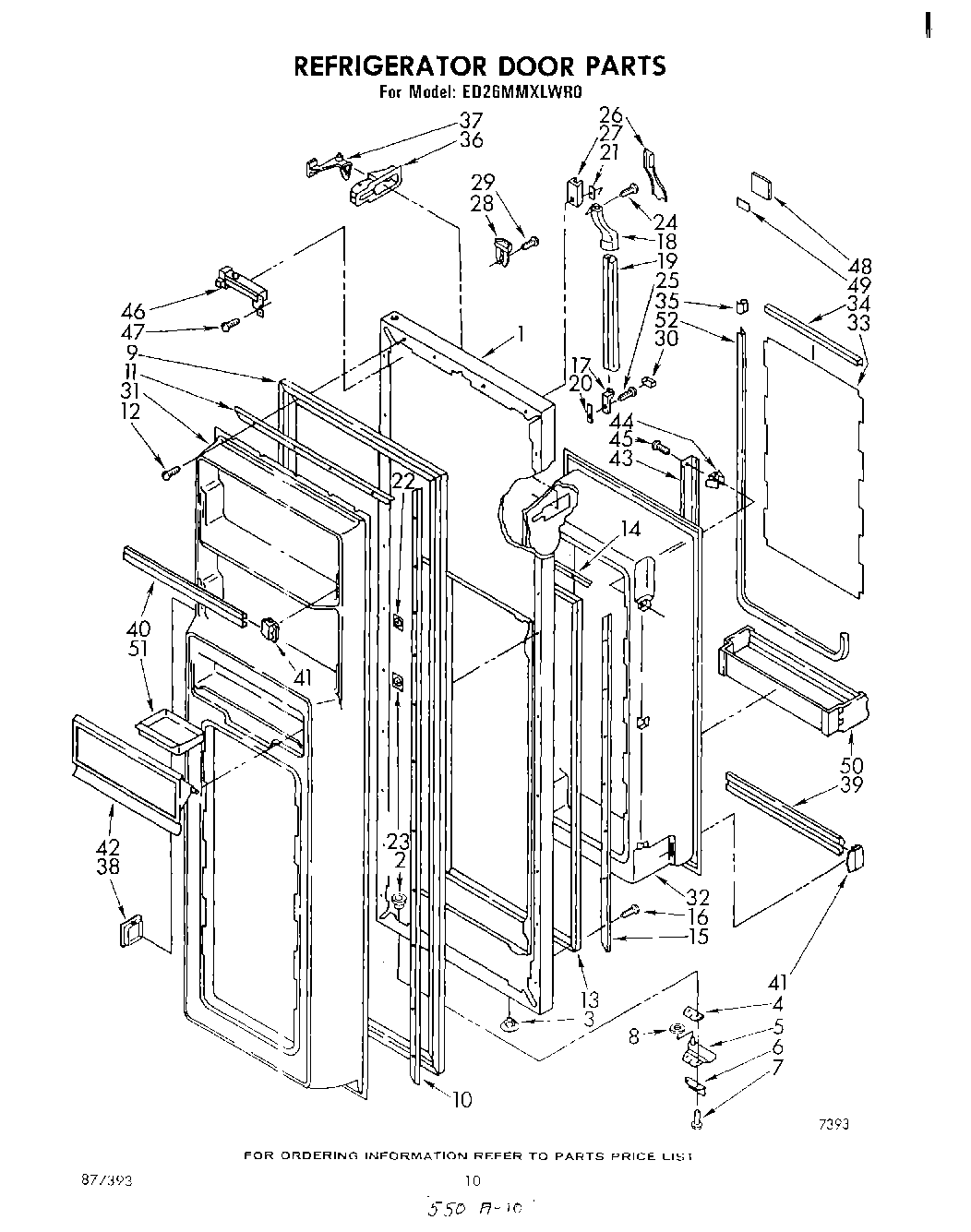

ED26MMXLWR0 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Exterior Door Panel (New Avocado)
1	Exterior Door Panel (Coffee)
1	Exterior Door Panel (Toast)
1	Exterior Door Panel (Platinum)
1	Exterior Door Panel (White)
1	Exterior Door Panel (Golden Harvest)
1	Exterior Door Panel (Almond)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2)
4	Shim, Bottom Hinge
5	Hinge, Bottom
6	Bracket, Door Stop
7	WP250830 Whirlpool Refrigerator Screw
8	Washer
9	Door Gasket, Magnetic
9	Door Gasket, Magnetic (For Platinum Model Only)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	WP489069 Whirlpool Compactor Screw
12	SCREW
13	Gasket, Seal
14	Reinforcement Strip, Top & Bottom (2)
15	Reinforcement Strip, Side
17	Handle End,
18	Center End Cap, Handle
19	Handle, Center (White, Coffee)
19	Center, Handle (Platinum)
19	Handle, Center (Golden Harvest)
19	Center, Handle (Toast)
19	Handle, Center (Almond)
19	Handle, Center (New Avocado)
20	Shim, Handle
21	Shim
22	WP939101 Whirlpool Refrigerator Plate
23	Screw Anchor (2)
25	WP488729 Whirlpool Refrigerator Door Screw
26	Insert, Handle
27	Retainer Insert
28	End Cap
29	Screw
30	Cover, End Cap
31	Interior Door Panel
31	Interior Door Panel
32	WPL 945170
32	Interior Door Panel, Storage
33	Panel, Decorative
34	Trim, Decorative
35	Cap Trim Joint
36	Housing, Rocker Arm
36	WPL 944463
37	WPL 944464
37	Rocker Arm
38	WPL 944465
38	Escutcheon, Panel Opening
39	WPL 986448
40	WPL 988746
41	WP839904 Whirlpool Refrigerator Endcap Trim
42	WPL 935352
43	Shelf Ladder
44	Expansion Clip
46	WPL 840847
47	W11624204 Whirlpool Screw
48	Escut
49	Tape Strip
50	WPL 945147
50	WPL 986449
52	WPL 986453
