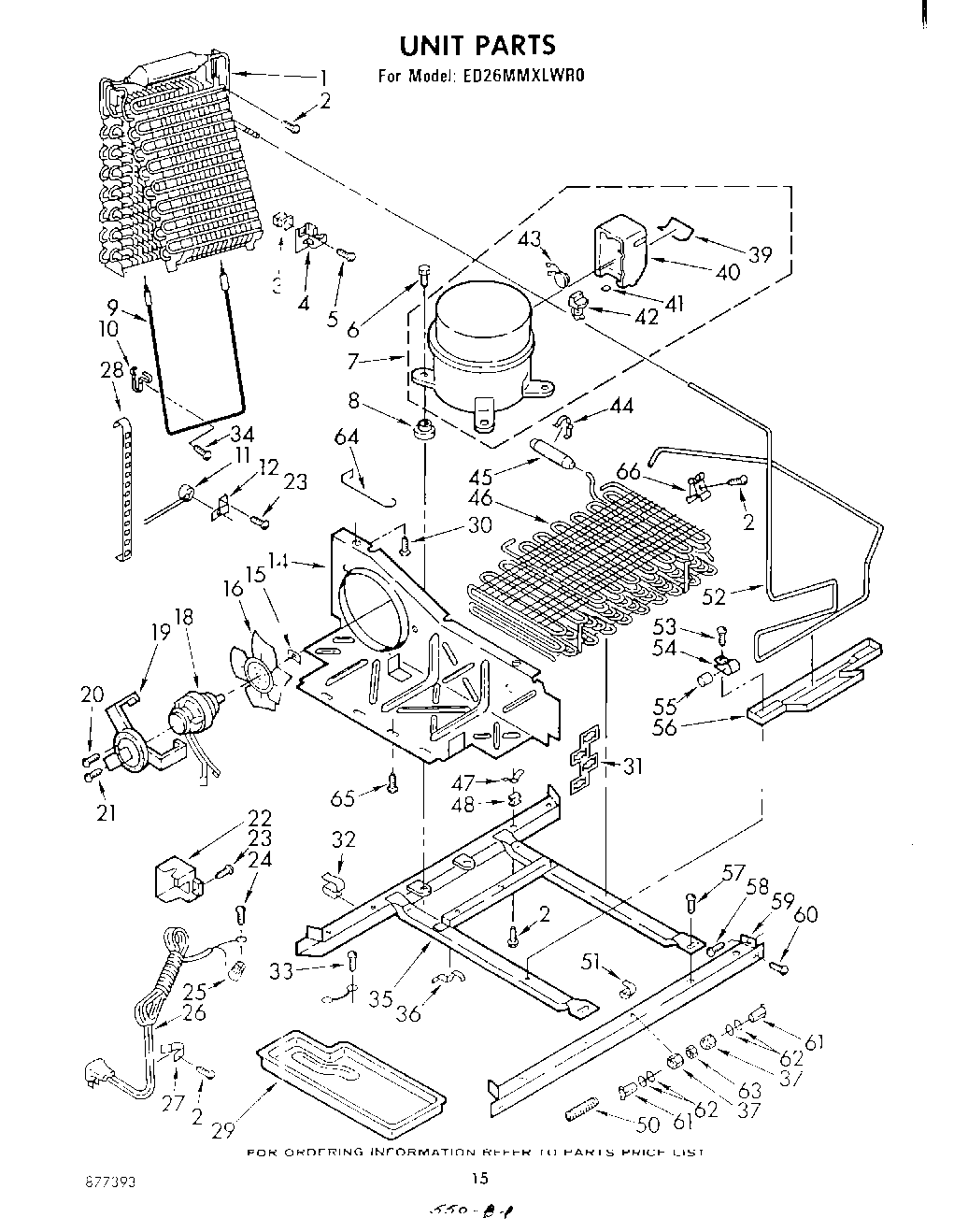

ED26MMXLWR0 09 – UNIT

ED26MMXLWR0 09 – UNIT

Products

PositionProduct
1Evaporator
2W11624204 Whirlpool Screw
3Grommet, Screw
4Support, Evaporator
5SCREW
6Screw, 1/4-28 x 1`` (4)
7Compressor Kit (Includes Items 39, 40, 41, 42 & 43)
8Grommet (4)
9Heater, Defrost
10Clamp, Evaporator
11WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12Clamp
14Baffle, Air
15WP486692 Whirlpool Refrigerator Nut
16Fan, Blade
18833697 Whirlpool Condenser Fan Motor
19Bracket, Motor
20Screw, 8-36 x 3/8 (3)
22Box, Junction
23WP488729 Whirlpool Refrigerator Door Screw
24Screw, 8-32 x 3/8
25Wire Connector
26Cord, Service
27549193 Whirlpool Refrigerator Power Clamp
28Shield, Evaporator (4)
29Tray, Evaporator
30Screw, 8-15 x 3/8
31Spacer Condenser (4)
32Clip, Wire (2)
33303776 Whirlpool Dishwasher Screw
34W11693756 Whirlpool Screw Assembly
35Frame Assembly
36Clip (2)
37WP245183 Whirlpool Nut
39Spring
40Case, Relay
41Bumper
42Relay
43Overload
44Clamp
45W10843121 Whirlpool Refrigerator Tube
46Condenser & Precooler Assembly
47Clamp (4)
48Grommet (4)
50Spring-Tube
51Clip, Tube (3)
52Exchanger, Heat
53WPW10141625 Whirlpool Refrigerator Screw Assembly
54Clamp Tube
55Dampener (2)
56Pan, Drip
57Screw, 1/4-28 x 1/2 (2)
59Rail, Front
60489340 Whirlpool Refrigerator Screw
614387491 Whirlpool Refrigerator Insert
62``O`` Ring Seal (4)
63WP4211117 Whirlpool Refrigerator Connector
64Guard, Fan
65Screw, 8 x 3/8
66VALVE, ACCESS (5/8``)
66978026 Whirlpool Refrigerator Primary Valve
66978027 Whirlpool Refrigerator Primary Valve
66978030 Whirlpool Refrigerator Valve
66WP978025 Whirlpool Refrigerator Valve
66VALVE, ACCESS (1/2``)
66876764 Whirlpool Refrigerator Primary Valve
66Clip, Tube (4)
