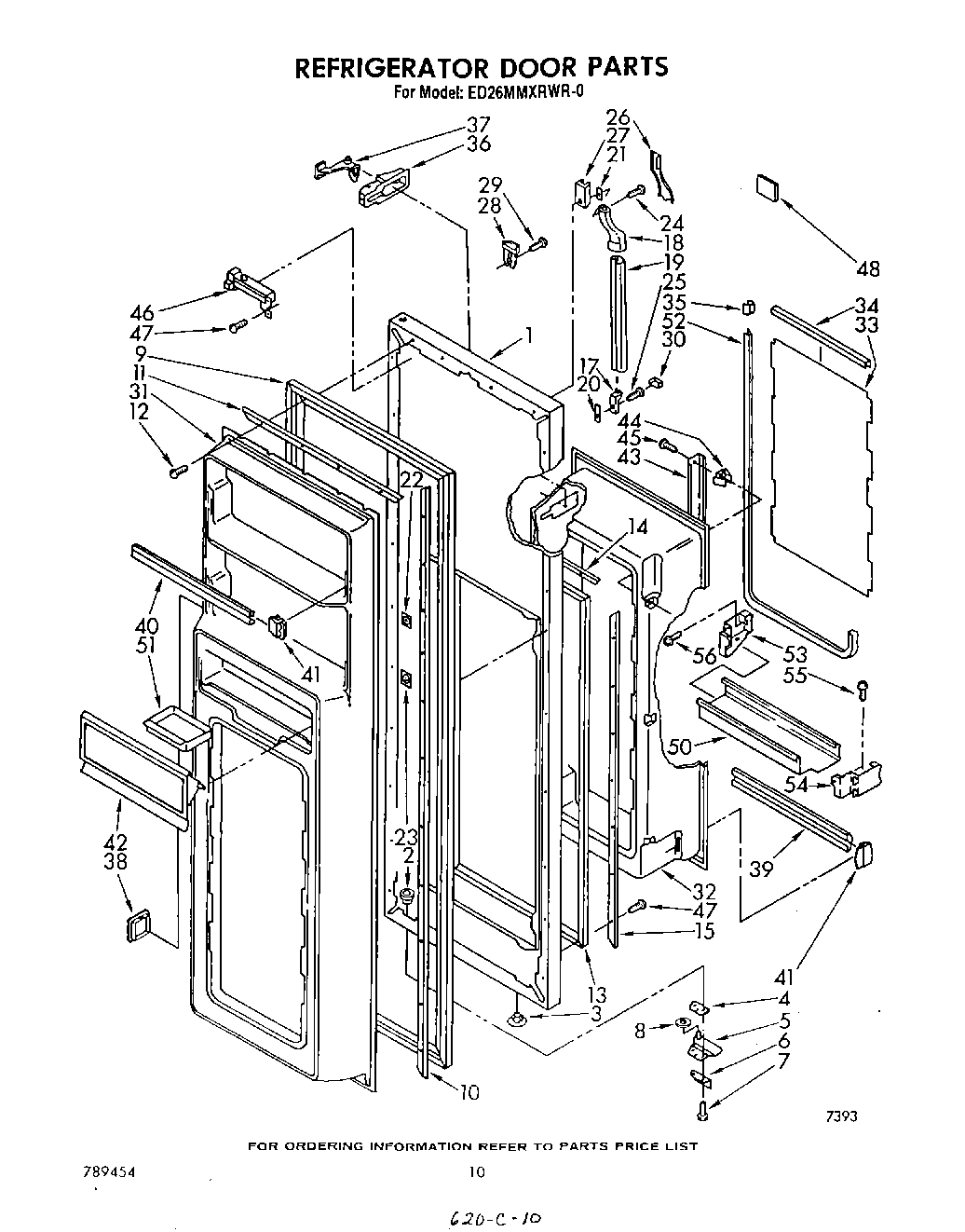

ED26MMXRWR0 06 – REFRIGERATOR DOORadmin2025-04-26T09:40:50+00:00ED26MMXRWR0 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Exterior Door Panel (Toast) |
| 1 | Exterior Door Panel (Almond) |
| 1 | Exterior Door Panel (Golden Harvest) |
| 1 | Exterior Door Panel (White) |
| 1 | Exterior Door Panel (Platinum) |
| 2 | Cap, Hinge Sleeve (2) |
| 3 | Hole Plug (2) |
| 4 | Shim, Bottom Hinge |
| 5 | Hinge, Bottom |
| 6 | Bracket, Door Stop |
| 7 | WP250830 Whirlpool Refrigerator Screw |
| 8 | Washer |
| 9 | Door Gasket, Magnetic (For Platinum Model Only) |
| 10 | Retainer, Gasket Side |
| 11 | Retainer, Top & Bottom |
| 12 | WP489069 Whirlpool Compactor Screw |
| 12 | SCREW |
| 13 | Gasket, Seal |
| 14 | Reinforcement Strip, Top & Bottom (2) |
| 15 | Reinforcement Strip, Side |
| 17 | Handle End, |
| 18 | Center End Cap, Handle |
| 19 | Center, Handle |
| 19 | Center, Handle (For Platinum Model Only) |
| 20 | Shim, Handle |
| 21 | Shim |
| 22 | WP939101 Whirlpool Refrigerator Plate |
| 23 | Screw Anchor (2) |
| 26 | Insert Handle (White) |
| 26 | Insert Handle (Golden Harvest) |
| 26 | Insert Handle (Platinum) |
| 26 | Insert Handle (Almond) |
| 26 | Insert Handle (Toast) |
| 27 | Retainer Insert |
| 28 | End Cap |
| 29 | Screw |
| 30 | Cover, End Cap |
| 31 | Interior Door Panel |
| 32 | Interior Door Panel, Storage |
| 33 | Panel, Decorative |
| 34 | Trim, Decorative |
| 35 | Cap Trim Joint |
| 36 | Housing, Rocker Arm |
| 37 | Rocker Arm |
| 38 | Escutcheon, Panel Opening |
| 39 | Trim, Door Shelf |
| 40 | Trim, Door Shelf |
| 41 | WP839904 Whirlpool Refrigerator Endcap Trim |
| 42 | Compartment Door |
| 43 | Shelf Ladder |
| 44 | Expansion Clip |
| 45 | WP488729 Whirlpool Refrigerator Door Screw |
| 46 | WPL 840847 |
| 47 | W11624204 Whirlpool Screw |
| 48 | WPL 1110077 |
| 48 | WPL 1106060 |
| 50 | WPL 1109090 |
| 52 | WPL 986453 |
| 53 | WPL 986451 |
| 54 | WPL 986452 |
| 55 | WPL 488929 |
| 56 | WP487353 Whirlpool Refrigerator Screw |
