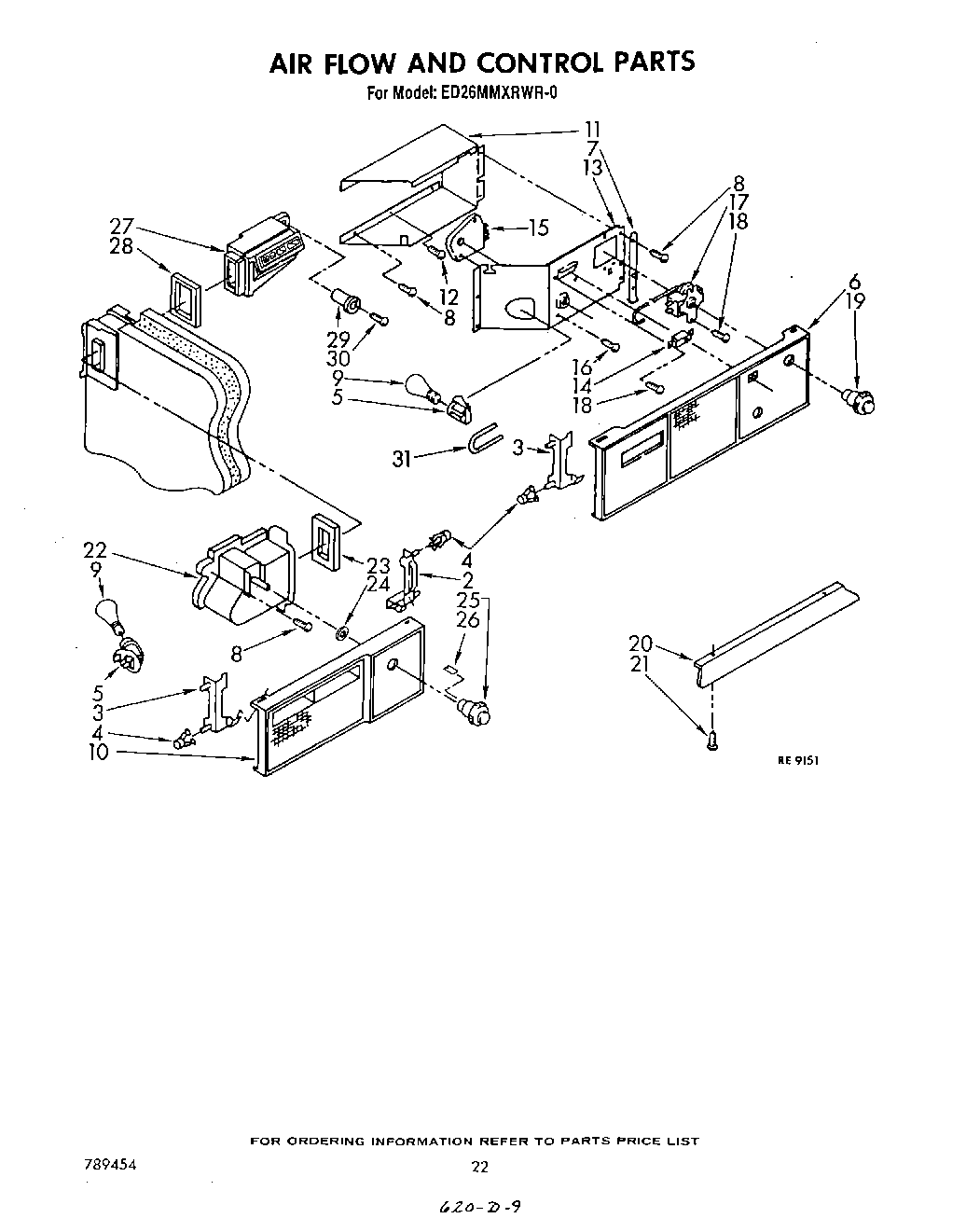

ED26MMXRWR0 12 – AIRFLOW AND CONTROL

Products

Position	Product
2	Support, Light Lens (R.S.)
3	Support, Light Lens (L.S.)
4	Clip, Tubular
5	4387478 Whirlpool Refrigerator Light Socket
6	Light Lens
7	Support, Light Lens
8	W11624204 Whirlpool Screw
9	RANGE ONLY 40W 120V APPL BULB
10	Light Lens, Freezer
11	Box, Control
12	Screw, 8-32 x 3/8
13	Control Box Front
14	WP938213 Whirlpool Refrigerator Power Switch
15	Defrost Timer
16	WP3388228 Whirlpool Screw
17	WP4317800 Whirlpool Refrigerator Thermostat
18	Screw, 8 x 3/8
19	Knob, Temperature Control
20	Baffle, Liner Top
21	WP489069 Whirlpool Compactor Screw
22	Air Scoop Assembly
23	Gasket, Air Scoop
24	Retainer, Damper
25	Control Knob
26	Knob, Retainer
27	Air Diffuser Assembly
28	Gasket, Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	WP2196003 Whirlpool Refrigerator Bar Riser
