ED26MMXRWR2 11 – ICEMAKER

ED26MMXRWR2 11 – ICEMAKER

Written by

in

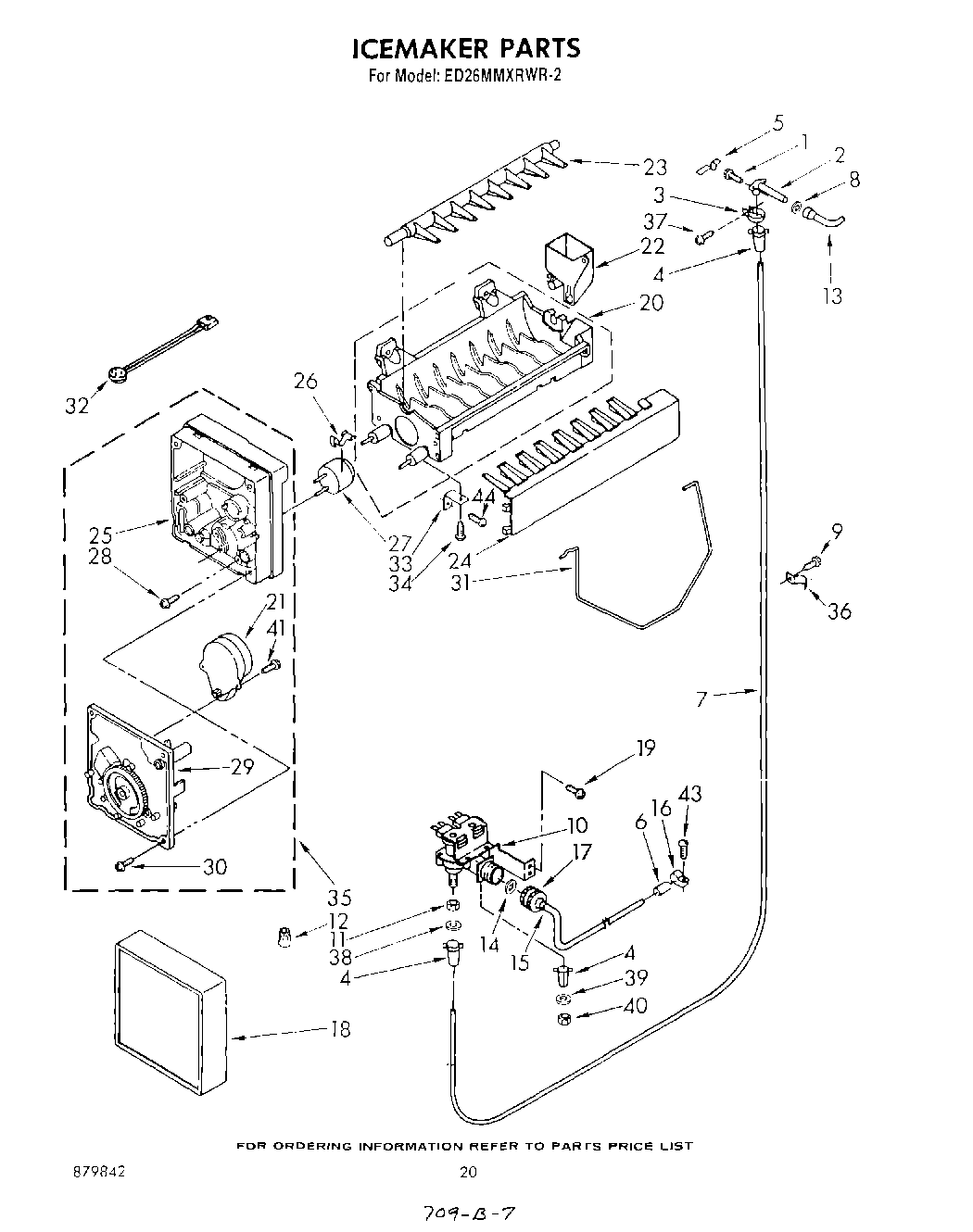

ED26MMXRWR2 11 – ICEMAKER

Products

PositionProduct
1WP98165 Whirlpool Screw
2WP2196157 Whirlpool Fill Tube
3WP488878 Whirlpool Refrigerator Tube Clamp
44387491 Whirlpool Refrigerator Insert
5Clip
6WP2158826 Whirlpool Refrigerator Dampener
7W10823511 Whirlpool Refrigerator Water Tube
8WP1106508 Whirlpool Refrigerator Gasket
9WP489069 Whirlpool Compactor Screw
104318046 Whirlpool Dual Water Inlet Valve
11WP627018 Whirlpool Refrigerator Nut
12Wire Connector
13Tube, Water Inlet
14WP16123 Whirlpool Washer
15Tube, Inlet Valve
16Clamp Tube
17Nut, Valve
18Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
28WPL 489163
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
32WP628172 Whirlpool Refrigerator Wire Harness
33WP2256087 Whirlpool Refrigerator Bracket
34WP489128 Whirlpool Refrigerator Screw
35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36Clamp, Water Line (2)
37WP965173 Whirlpool Dishwasher Screw
38“O“ Ring Seal (4)
39“O“ Ring Seal
40Nut, Compression
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
44SCREW
