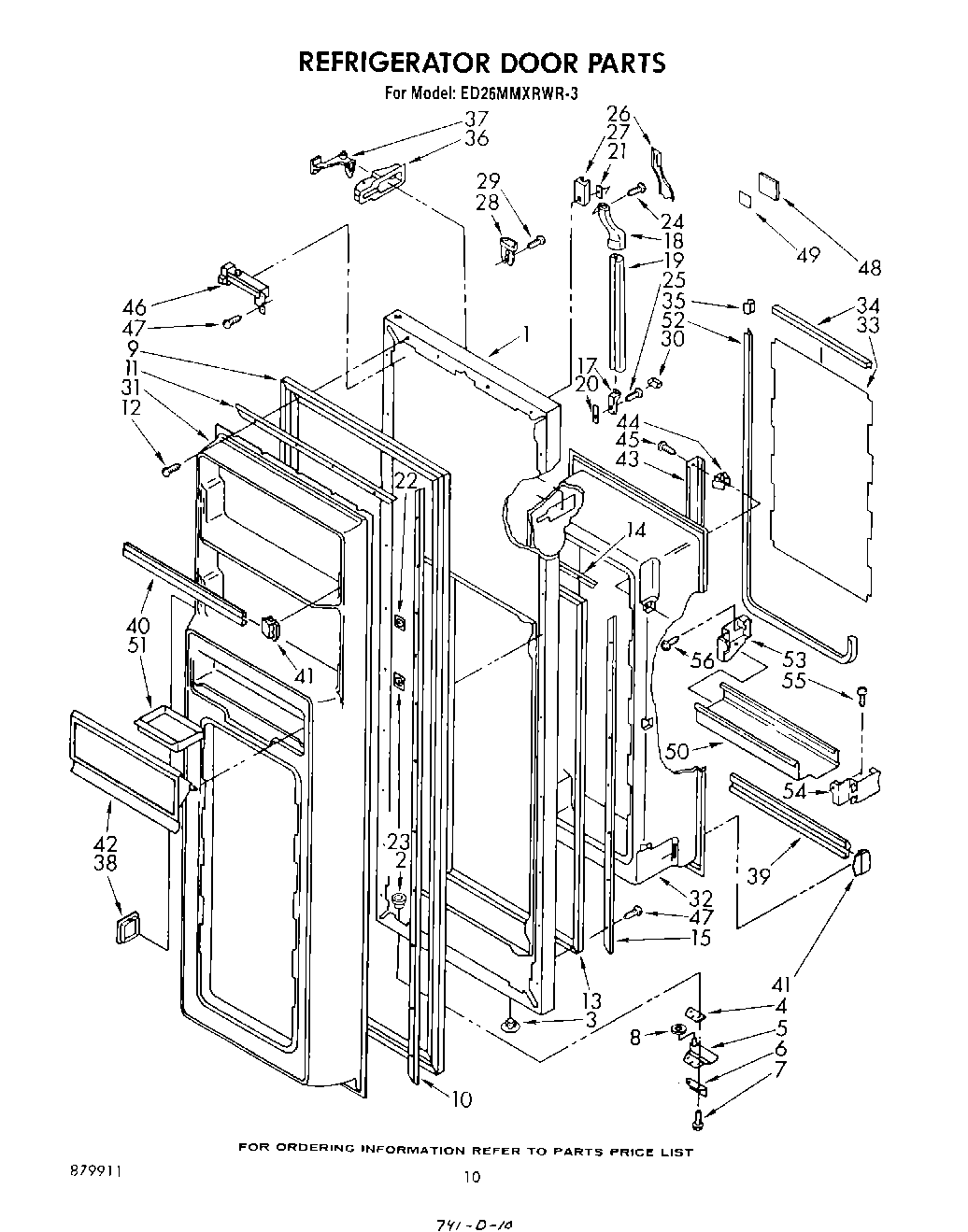

ED26MMXRWR3 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Exterior Door Panel (White)
1	Exterior Door Panel (Almond)
1	Exterior Door Panel (Golden Harvest)
1	Exterior Door Panel (Toast)
1	Exterior Door Panel (Platinum)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2)
4	Shim, Bottom Hinge
5	Hinge, Bottom
6	Bracket, Door Stop
7	WP250830 Whirlpool Refrigerator Screw
8	Washer
9	Door Gasket, Magnetic (For Platinum Model Only)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	SCREW
12	WP489069 Whirlpool Compactor Screw
13	Gasket, Seal
14	Reinforcement Strip, Top & Bottom (2)
15	Reinforcement Strip, Side
17	Handle End,
18	Center End Cap, Handle
19	Center, Handle (For Platinum Model Only)
19	Center, Handle
20	Shim, Handle
21	Shim
22	WP939101 Whirlpool Refrigerator Plate
23	Screw Anchor (2)
26	Insert Handle (Golden Harvest)
26	Insert Handle (White)
26	Insert Handle (Toast)
26	Insert Handle (Platinum)
26	Insert Handle (Almond)
27	Retainer Insert
28	End Cap
29	Screw
30	Cover, End Cap
31	Interior Door Panel
32	Interior Door Panel, Storage
33	Panel, Decorative
34	Trim, Decorative
35	Cap Trim Joint
36	Housing, Rocker Arm
37	Rocker Arm
38	Escutcheon, Panel Opening
39	Trim, Door Shelf
40	Trim, Door Shelf
41	WP839904 Whirlpool Refrigerator Endcap Trim
42	Compartment Door
43	Shelf Ladder
44	Expansion Clip
45	WP488729 Whirlpool Refrigerator Door Screw
46	WPL 840847
47	W11624204 Whirlpool Screw
48	Escut
49	Tape Strip
50	WPL 1109090
52	WPL 986453
53	WPL 986451
54	WPL 986452
55	WPL 488929
56	WP487353 Whirlpool Refrigerator Screw
