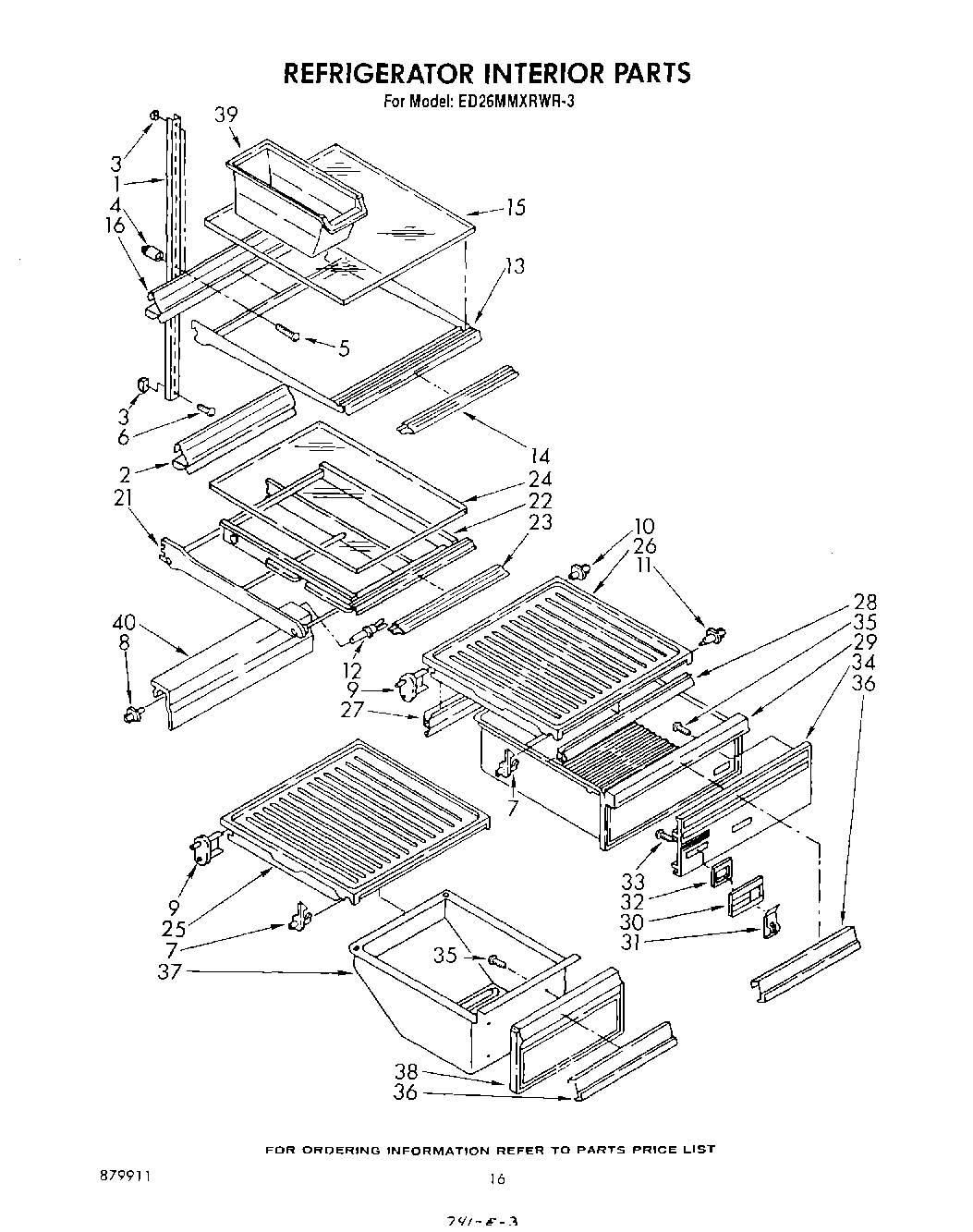

ED26MMXRWR3 09 – REFRIGERATOR INTERIOR

Products

Position	Product
1	Shelf Ladder (2)
2	Glass, Rollout Shelf
3	520965 Whirlpool Refrigerator Support
4	Screw, Grommet
5	Screw, 8 x 1-1/4 (3)
6	Screw, 8-32 x 1-1/4
6	Screw (Repair)
7	Shelf, Stud
8	Stud, Shelf
9	Stud, Shelf
10	Stud
11	Shelf, Stud
12	Stud, Shelf (2)
13	Shelf, Cantilever
14	Shelf Trim, Cantilever
15	Glass, Cantilever Shelf
16	Reflector, Cantilever
21	Frame, Cantilever Shelf
22	Rollout Shelf, Cantilever
23	Trim, Shelf Front
24	Glass, Rollout Shelf
25	Pan Slide & Cover (For Platinum Model Only)
26	Pan Slide & Cover (Crisper)
27	Crisper Gasket Rear
28	Crisper Gasket Front
29	Pan Crisper
30	Housing, Humidity Control
31	Slide, Humidity Control
32	Seal, Humidity Control
33	Screw, 6-19 x 7/16
34	Front Cover, Crisper
35	WP488729 Whirlpool Refrigerator Door Screw
35	Screw (Repair)
36	Overlay, Front Cover
37	Pan (Meat)
38	Front Cover, Meat
39	WP982704 Whirlpool Refrigerator Container
40	Light Lens, Lower
