ED26MMXRWR3 13 – SERVA-DOOR , NOT ILLUSTRATED

ED26MMXRWR3 13 – SERVA-DOOR , NOT ILLUSTRATED

Written by

in

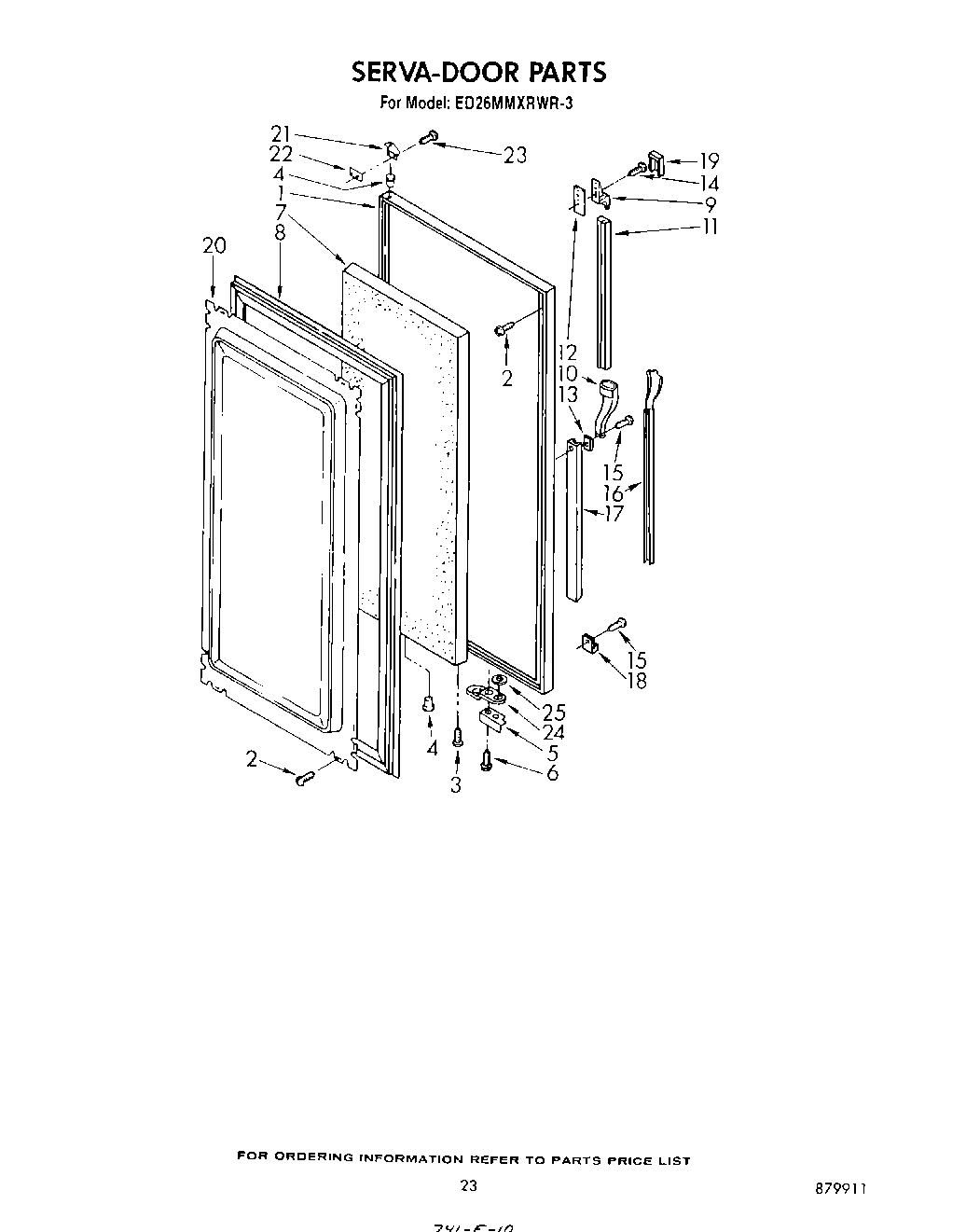

ED26MMXRWR3 13 – SERVA-DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
WPL LIT628107
Paint, Spray (13 Oz.) (Platinum)
Toast
WPL LIT1109116
Golden Harvest
350942 Whirlpool Spray Paint
WPL LIT1109118
350956 Whirlpool Spray Assembly
Leveler (Thinner)
WPL LIT879911
WPL LIT1115579
1Panel, Servadoor (Golden Harvest)
1Panel, Servadoor (Almond)
1Panel, Servadoor (White)
1Panel, Servadoor (Platinum)
1Panel, Servadoor (Toast)
2W11624204 Whirlpool Screw
3WP488729 Whirlpool Refrigerator Door Screw
4Sleeve, Hinge Pivot
5Bracket, Door Stop
6Screw, 8 x 7/16
6Screw (Repair)
7Insulation, Servadoor
8Gasket, Serva-Door
9Handle End,
10Center End Cap, Handle
11Center, Handle (For Platinum Model Only)
11Center, Handle
12Shim, Handle
13Shim
14Screw, 8-32 x 7/16
15WPL 488844
16Insert, Handle (Golden Harvest)
16Insert, Handle (Platinum)
16Insert, Handle (Toast)
16Insert, Handle (Almond)
16Insert, Handle (White)
17Retainer, Insert
18End Cap, Retainer
19Cover, End Cap
20Interior Panel (Servadoor)
21Hinge, Top
22Shim, Hinge Top
23Screw (Repair)
24Ground, Clip
25Golden Harvest (Uncut)
25212643 Whirlpool Refrigerator Permagum Sealer
25WP542638 Whirlpool Refrigerator Grease
25Silicone (Spray)
25Washer
25WP505587 Whirlpool Refrigerator Sealer
25WP503695 Whirlpool Refrigerator Sealer
25876370 Whirlpool Refrigerator Insulation
25833938 Whirlpool Refrigerator Terminal
25606755 Whirlpool Refrigerator Bag
25511873 Whirlpool Refrigerator Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25CEMENT, ALUMILASTIC (1 1/4 OZ.)
25WPL 799832
25Enamal, Toast (1 Qt. Uncut)
25Platinum (Uncut)
2572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
2572032 Whirlpool Touch Up Paint Black
25WPL 72112
25TAPE, VINYL (3/4 X 108“)
25Almond (Uncut)
25WP72107 Whirlpool Touchup
25799344 Whirlpool Refrigerator Paint
25WPL 876029
25WPL 799833
2572113 Whirlpool Touch-Up Paint
