ED26MMXRWR4 08 – UNIT

ED26MMXRWR4 08 – UNIT

Written by

in

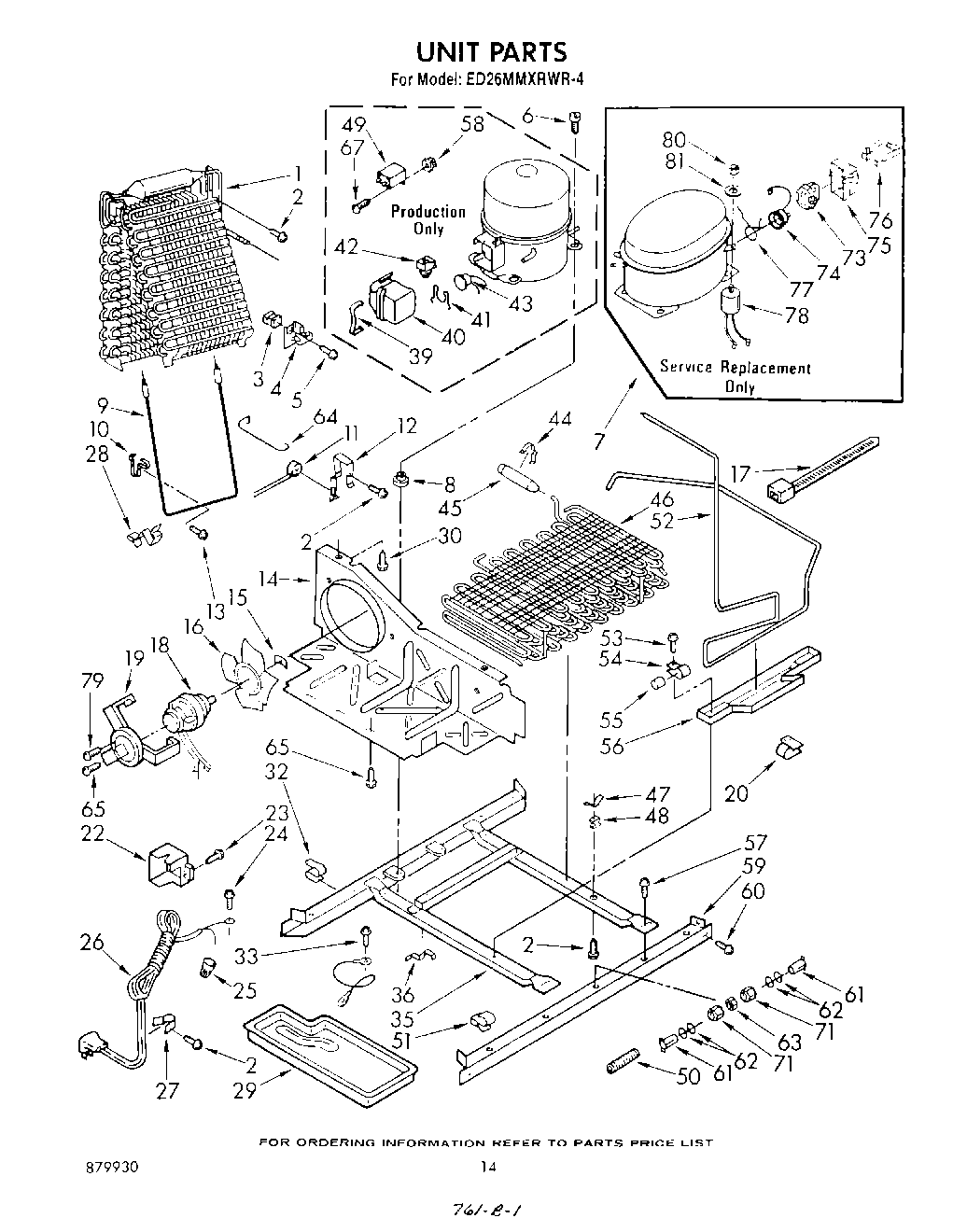

ED26MMXRWR4 08 – UNIT

Products

Position	Product
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw
4	Support, Evaporator
5	SCREW
7	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
8	876811 Whirlpool Grommet
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	W11693756 Whirlpool Screw Assembly
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	Fan, Blade
17	Strap
18	833697 Whirlpool Condenser Fan Motor
19	Bracket, Motor
20	Clamp
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	Screw, 8-32 x 3/8
25	Wire Connector
26	Cord, Service
27	549193 Whirlpool Refrigerator Power Clamp
28	Heater, Clamp (4)
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
35	Frame Assembly
36	Clip (2)
39	case spring
40	Case, Relay
41	Spring, Overload
42	Relay
43	Overload
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
49	WPW10662129 Whirlpool Refrigerator Run Capacitor
50	Spring-Tube
51	Clip, Tube (3)
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
58	Screw Grommet
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
61	4387491 Whirlpool Refrigerator Insert
62	“O“ Ring Seal (4)
63	WP4211117 Whirlpool Refrigerator Connector
64	Guard, Fan
65	Screw, 8 x 3/8
71	WP245183 Whirlpool Nut
73	WP2262181 Whirlpool Refrigerator Start Relay
74	Overload
75	Cover, Terminal
76	Strap
77	Overload Spring
78	Capacitor
79	681390 Whirlpool Refrigerator Screw
80	Nut
81	978027 Whirlpool Refrigerator Primary Valve
81	978030 Whirlpool Refrigerator Valve
81	978026 Whirlpool Refrigerator Primary Valve
81	876764 Whirlpool Refrigerator Primary Valve
81	VALVE, ACCESS (1/2“)
81	Washer
81	VALVE, ACCESS (5/8“)
81	WP978025 Whirlpool Refrigerator Valve
