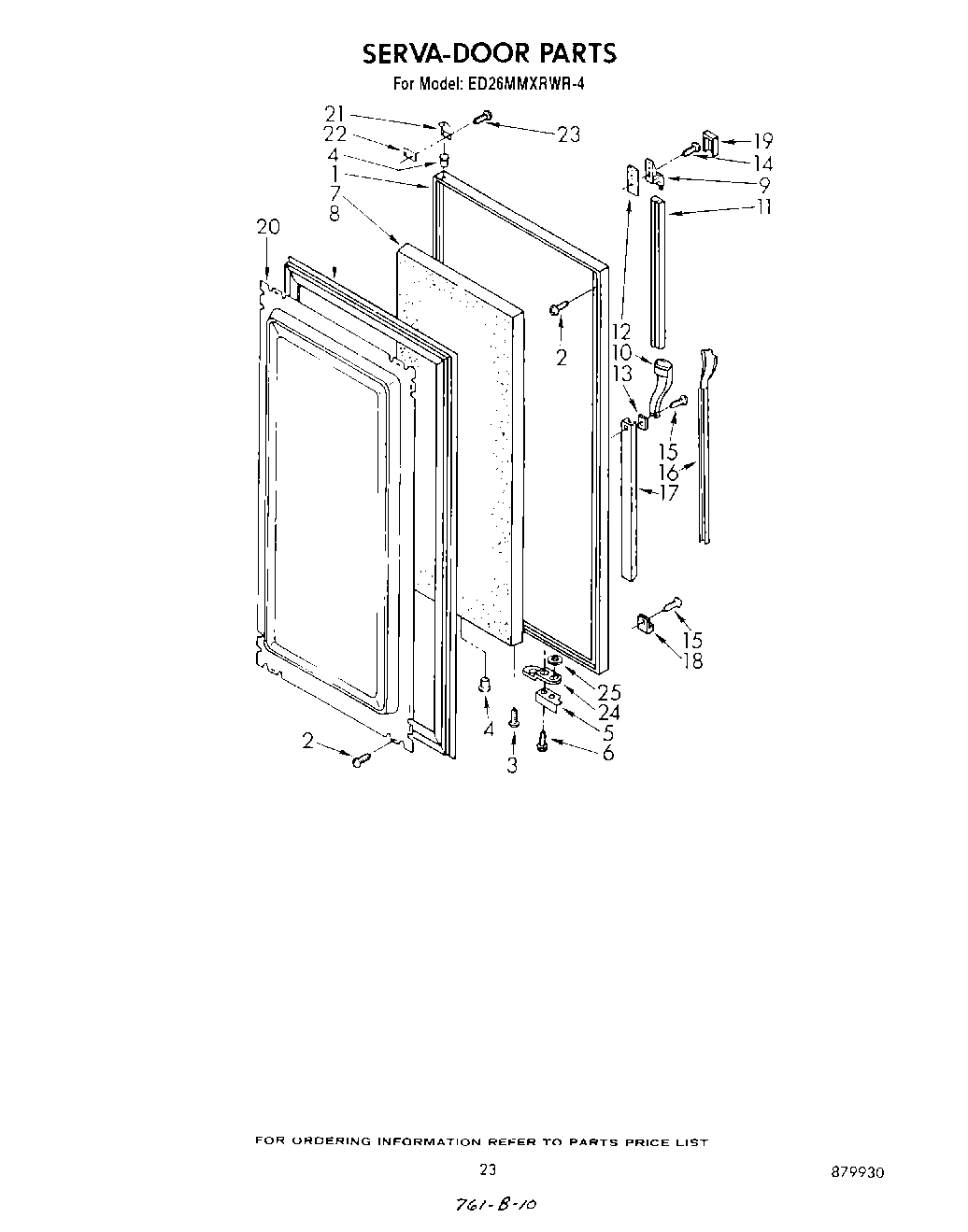

ED26MMXRWR4 13 – SERVA-DOOR , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Torx Key
	Golden Harvest
	350942 Whirlpool Spray Paint
	WPL LIT1109118
	WPL LIT879930
	WPL LIT1109116
	Leveler (Thinner)
	285006 Whirlpool Spray
	WPL LIT1115579
	WPL LIT628107
	350956 Whirlpool Spray Assembly
1	Panel, Servadoor (White)
1	Panel, Servadoor (Platinum)
1	Panel, Servadoor (Almond)
1	Panel, Servadoor (Toast)
1	Panel, Servadoor (Golden Harvest)
2	SCREW
2	WP489478 Whirlpool Refrigerator Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Sleeve, Hinge Pivot
5	Bracket, Door Stop
6	Screw, 8 x 7/16
6	Screw (Repair)
7	Insulation, Servadoor
8	Gasket, Serva-Door
9	Handle End,
10	Center End Cap, Handle
11	Center, Handle
11	Center, Handle (For Platinum Model Only)
12	Shim, Handle
13	Shim
14	Screw, 8-32 x 7/16
15	WPL 488844
16	Insert, Handle (Platinum)
16	Insert, Handle (Almond)
16	Insert, Handle (Golden Harvest)
16	Insert, Handle (White)
16	Insert, Handle (Toast)
17	Retainer, Insert
18	End Cap, Retainer
19	Cover, End Cap
20	Interior Panel (Servadoor)
21	Hinge, Top
22	Shim, Hinge Top
23	Screw (Repair)
24	Ground, Clip
25	72113 Whirlpool Touch-Up Paint
25	WPL 72112
25	212643 Whirlpool Refrigerator Permagum Sealer
25	Washer
25	Platinum (Uncut)
25	Enamal, Toast (1 Qt. Uncut)
25	Silicone (Spray)
25	Golden Harvest (Uncut)
25	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25	Almond (Uncut)
25	WP72107 Whirlpool Touchup
25	799344 Whirlpool Refrigerator Paint
25	511873 Whirlpool Refrigerator Paint
25	606755 Whirlpool Refrigerator Bag
25	72032 Whirlpool Touch Up Paint Black
25	WPL 876029
25	WPL 799833
25	WPL 799832
25	CEMENT, ALUMILASTIC (1 1/4 OZ.)
25	TAPE, VINYL (3/4 X 108“)
25	WP542638 Whirlpool Refrigerator Grease
25	WP505587 Whirlpool Refrigerator Sealer
25	WP503695 Whirlpool Refrigerator Sealer
25	876370 Whirlpool Refrigerator Insulation
25	833938 Whirlpool Refrigerator Terminal
25	72017 Whirlpool Appliance Touch-Up Paint White
