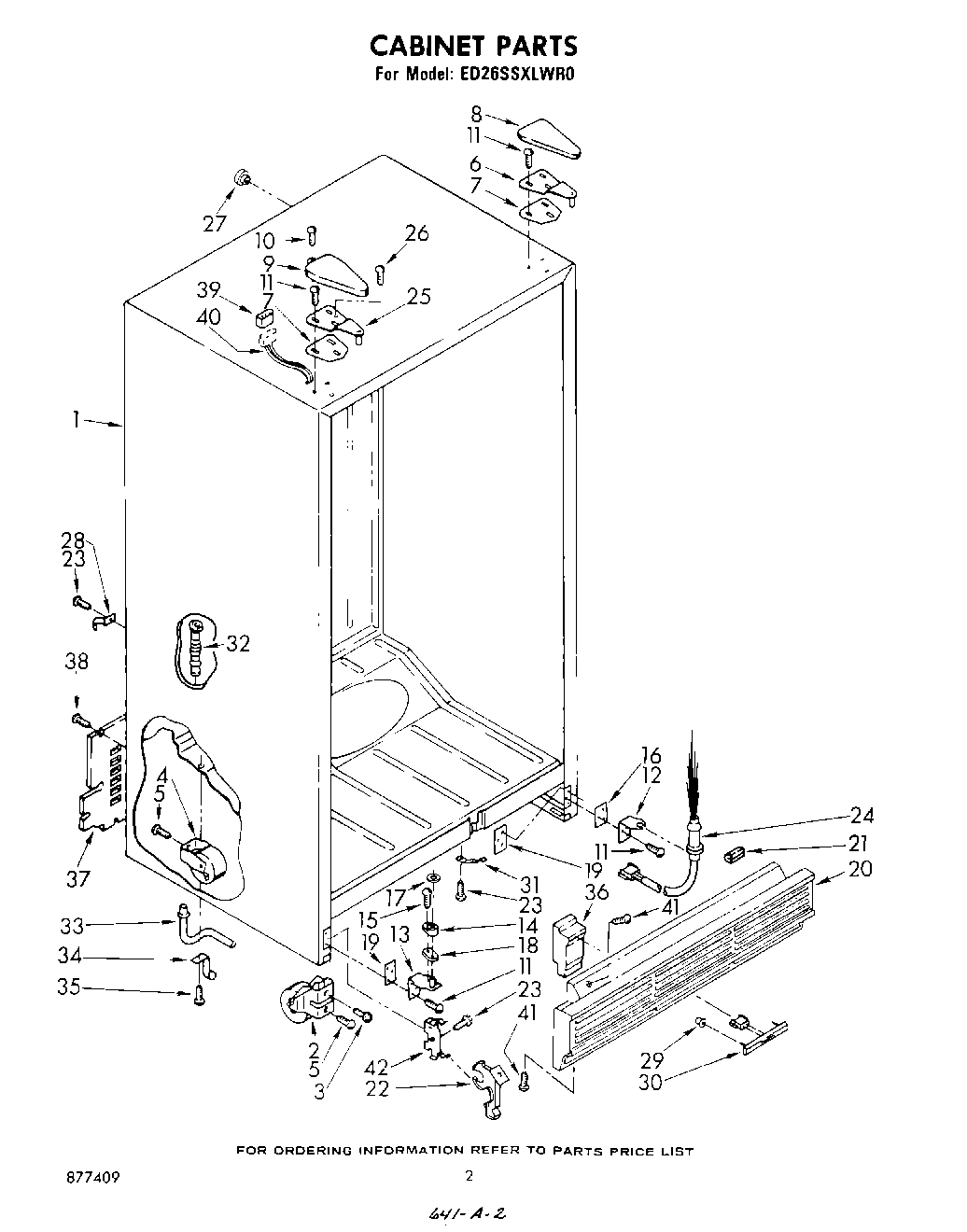

ED26SSXLWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hinge (Top)
7	Shim, Hinge Top
8	Hinge Cover (Toast)
8	Hinge, Cover (Coffee)
8	Hinge Cover (Golden Harvest)
8	1119787 Whirlpool Refrigerator Hinge Cover
8	Hinge Cover (New Avocado)
9	WP1129262 Whirlpool Refrigerator Cover
9	Hinge Cover (Golden Harvest)
9	Hinge Cover (Platinum)
9	Hinge Cover (Coffee)
9	Hinge Cover (Toast)
9	Hinge Cover (New Avocado)
10	Screw, 6-32 x 1/2
11	Screw (Repair)
11	WP999367 Whirlpool Refrigerator Screw
12	Hinge, Bottom
13	Hinge Bottom (L.H)
14	WPW10329686 Whirlpool Door Cam Black
15	Screw (Repair)
15	WP486579 Whirlpool Air Conditioner Screw
16	Shim, Bottom Hinge
17	WP487576 Whirlpool Washer
18	Shim, Door Closer
19	Tap Plate
20	Exterior, Grille (New Avocado)
20	Exterior, Grille (Toast)
20	Exterior, Grille (Almond)
20	Exterior, Grille (Golden Harvest)
20	Exterior, Grille (Platinum)
20	Exterior, Grille (White)
20	Exterior, Grille (Coffee)
21	Bumper, Grille
22	WP944224 Whirlpool Refrigerator Support
23	W11624204 Whirlpool Screw
24	Wiring Assembly Door
25	Hinge, Top Freezer
26	WP488234 Whirlpool Air Conditioner Screw
27	Grommet
28	Clamp, Water Line (2)
29	Stud Anchor
30	WPL 939955
30	WPL 939956
30	WPL 939954
30	Door Se
30	Door Sensor, Escutcheon (Platinum)
30	WPL 939953
30	Door Sensor, Escutcheon (Toast)
31	WPL 939988
32	Drain Fitting, Liner
33	Extension, Drain Fitting
34	Cup, Drain Extension
35	Screw, 8-15 x 3/8
36	WPL 836372
37	WPL 851174
39	WPL 851648
40	WPL 482553
41	WPL 489085
42	WPL 989068
