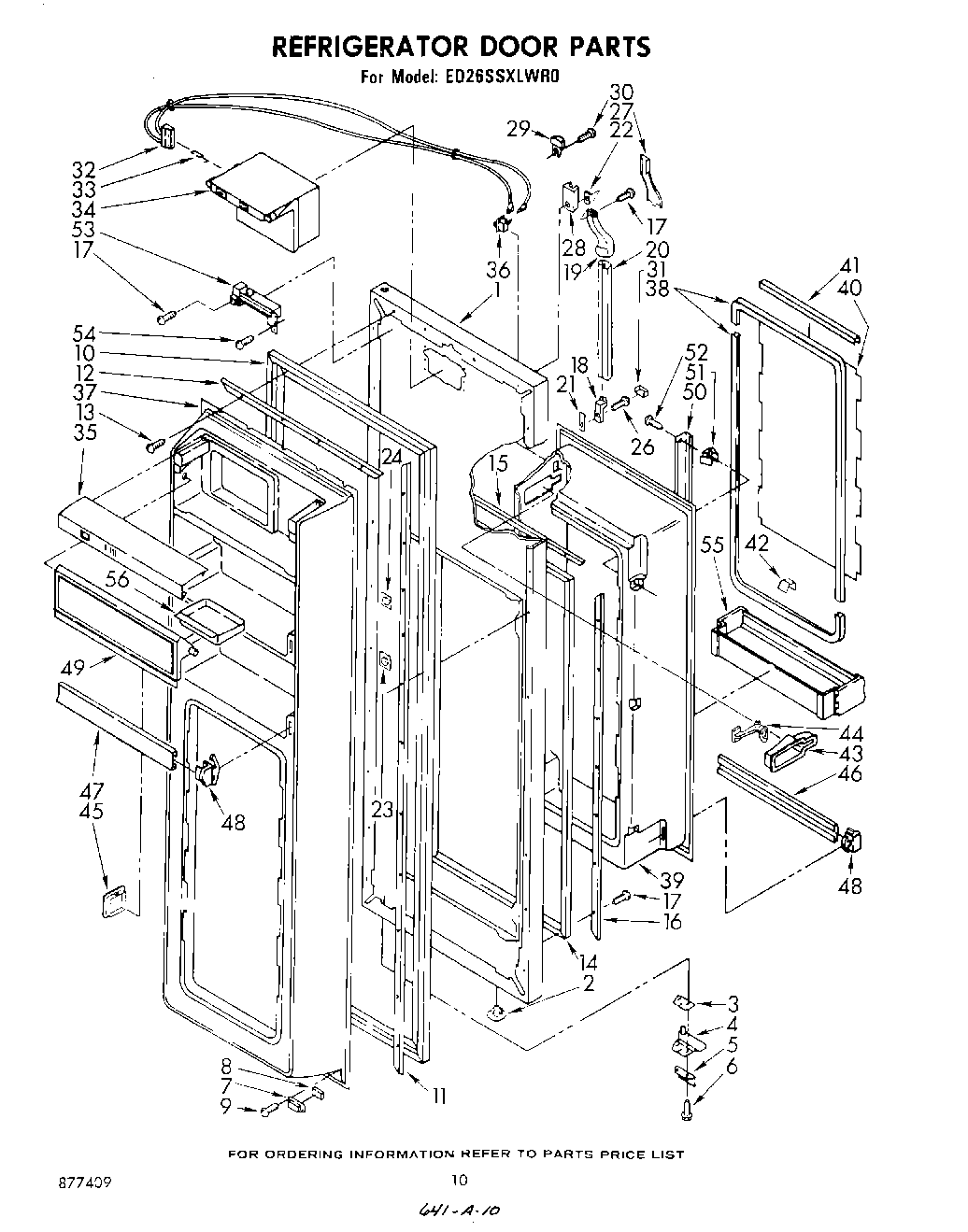

ED26SSXLWR0 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Exterior Door Panel (White)
1	Exterior Door Panel (Coffee)
1	Exterior Door Panel (Platinum)
1	Exterior Door Panel (Golden Harvest)
1	Exterior Door Panel (Toast)
1	Exterior Door Panel (New Avocado)
1	Exterior Door Panel (Almond)
2	Hole Plug (2)
3	Shim, Bottom Hinge
4	Hinge, Bottom
5	Bracket, Door Stop
6	WP250830 Whirlpool Refrigerator Screw
7	Magnet Cover
8	Magnet
9	Screw
10	Door Gasket, Magnetic (For Platinum Model Only)
10	Door Gasket, Magnetic
11	Retainer, Gasket Side
12	Retainer, Top & Bottom
13	WP489069 Whirlpool Compactor Screw
13	SCREW
14	Gasket, Seal
15	Reinforcement Strip, Top & Bottom (2)
16	Reinforcement Strip, Side
18	Handle End,
19	Center End Cap, Handle
20	Handle, Center (New Avocado)
20	Center, Handle (Toast)
20	Handle, Center (Almond)
20	Handle, Center (Golden Harvest)
20	Handle, Center (White, Coffee)
20	Center, Handle (Platinum)
21	Shim, Handle
22	Shim
23	WP939101 Whirlpool Refrigerator Plate
24	Screw Anchor (2)
26	WP488729 Whirlpool Refrigerator Door Screw
27	Insert, Handle
28	Retainer Insert
29	End Cap
30	Screw
31	Cover, End Cap
32	Connector, Edge
33	Key, Lock Plug
34	Control Box Assembly (See Assembly)
35	Escutcheon, Swit
36	WPL 943518
37	WPL 1101479
37	WPL 944460
38	WPL 986453
39	WPL 945212
39	WPL 1101480
40	Panel, Decorative
41	Trim, Decorative
42	Cap Trim Joint
43	Housing, Rocker Arm
43	WPL 944463
44	WPL 944464
44	Rocker Arm
45	WPL 944465
45	Escutcheon, Panel Opening
46	WPL 986448
47	WPL 988746
48	WP839904 Whirlpool Refrigerator Endcap Trim
49	WPL 940084
50	Shelf Ladder
51	Expansion Clip
53	WPL 840847
54	Screw, 8 x 3/8
55	WPL 986449
55	WPL 945147
