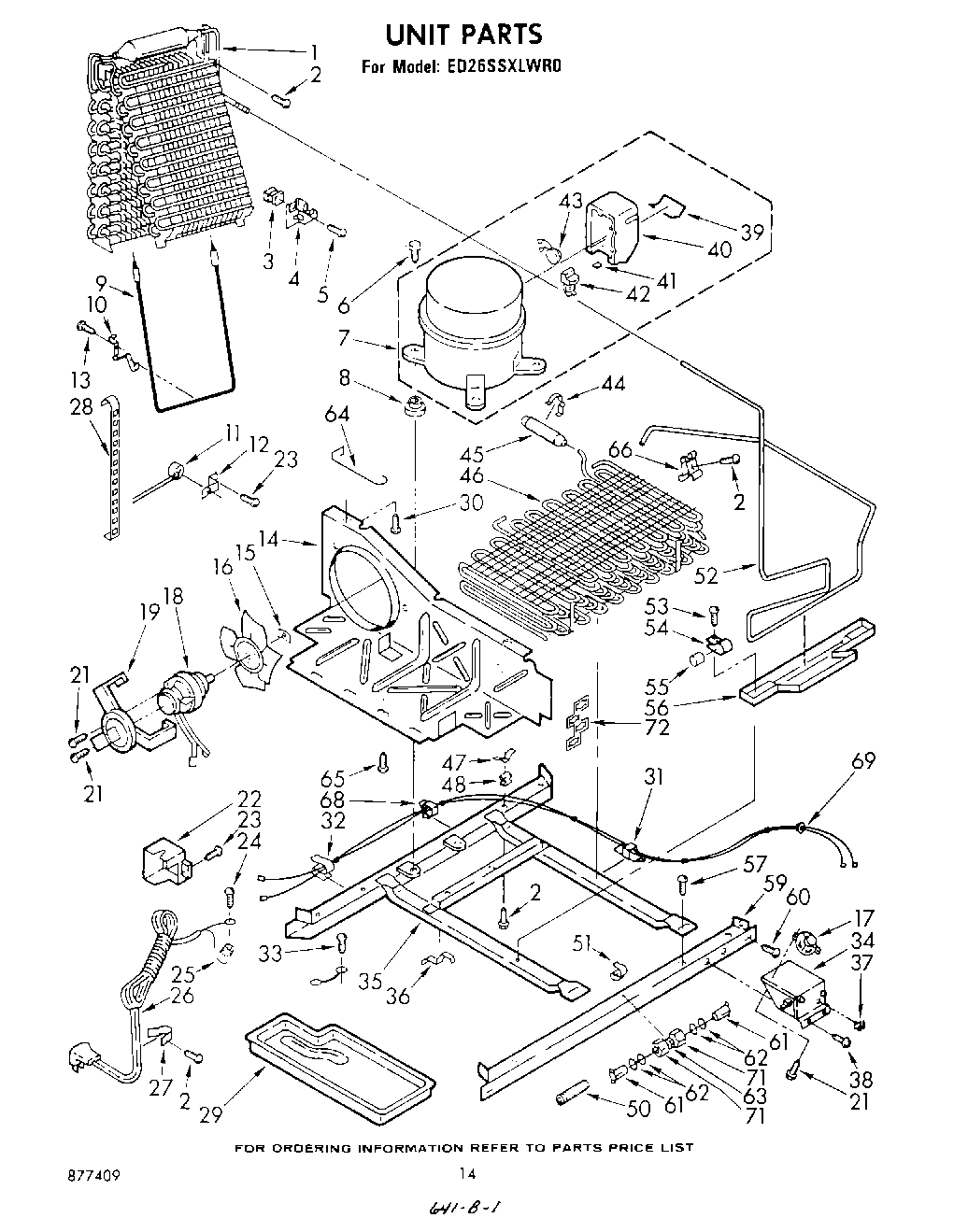

ED26SSXLWR0 09 – UNIT

Products

Position	Product
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw
4	Support, Evaporator
5	SCREW
6	Screw, 1/4-28 x 1“ (4)
7	Compressor Kit (Includes Items 39, 40, 41, 42 & 43)
8	Grommet (4)
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	W11693756 Whirlpool Screw Assembly
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	Fan, Blade
17	Speaker
18	833697 Whirlpool Condenser Fan Motor
19	Bracket, Motor
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	Screw, 8-32 x 3/8
25	Wire Connector
26	Cord, Service
27	549193 Whirlpool Refrigerator Power Clamp
28	Shield, Evaporator (4)
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
31	Wire, Clip (2)
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
34	Alarm Assembly
35	Frame Assembly
36	Clip (2)
37	Wire Clip
38	WP489069 Whirlpool Compactor Screw
39	Spring
40	Case, Relay
41	Bumper
42	4318083 Whirlpool Air Conditioner Start Relay
42	Relay (Service Compressor)
43	Overload (Service Compressor)
43	Overload
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
50	Spring-Tube
51	Clip, Tube (3)
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
61	4387491 Whirlpool Refrigerator Insert
62	“O“ Ring Seal (4)
63	WP4211117 Whirlpool Refrigerator Connector
64	Guard, Fan
65	Screw, 8 x 3/8
66	Clip, Tube (4)
68	W10169512 Whirlpool Clip
69	WPL 939246
71	WP245183 Whirlpool Nut
72	876764 Whirlpool Refrigerator Primary Valve
72	978026 Whirlpool Refrigerator Primary Valve
72	WP978025 Whirlpool Refrigerator Valve
72	978027 Whirlpool Refrigerator Primary Valve
72	VALVE, ACCESS (5/8“)
72	978030 Whirlpool Refrigerator Valve
72	Spacer Condenser (4)
72	VALVE, ACCESS (1/2“)
