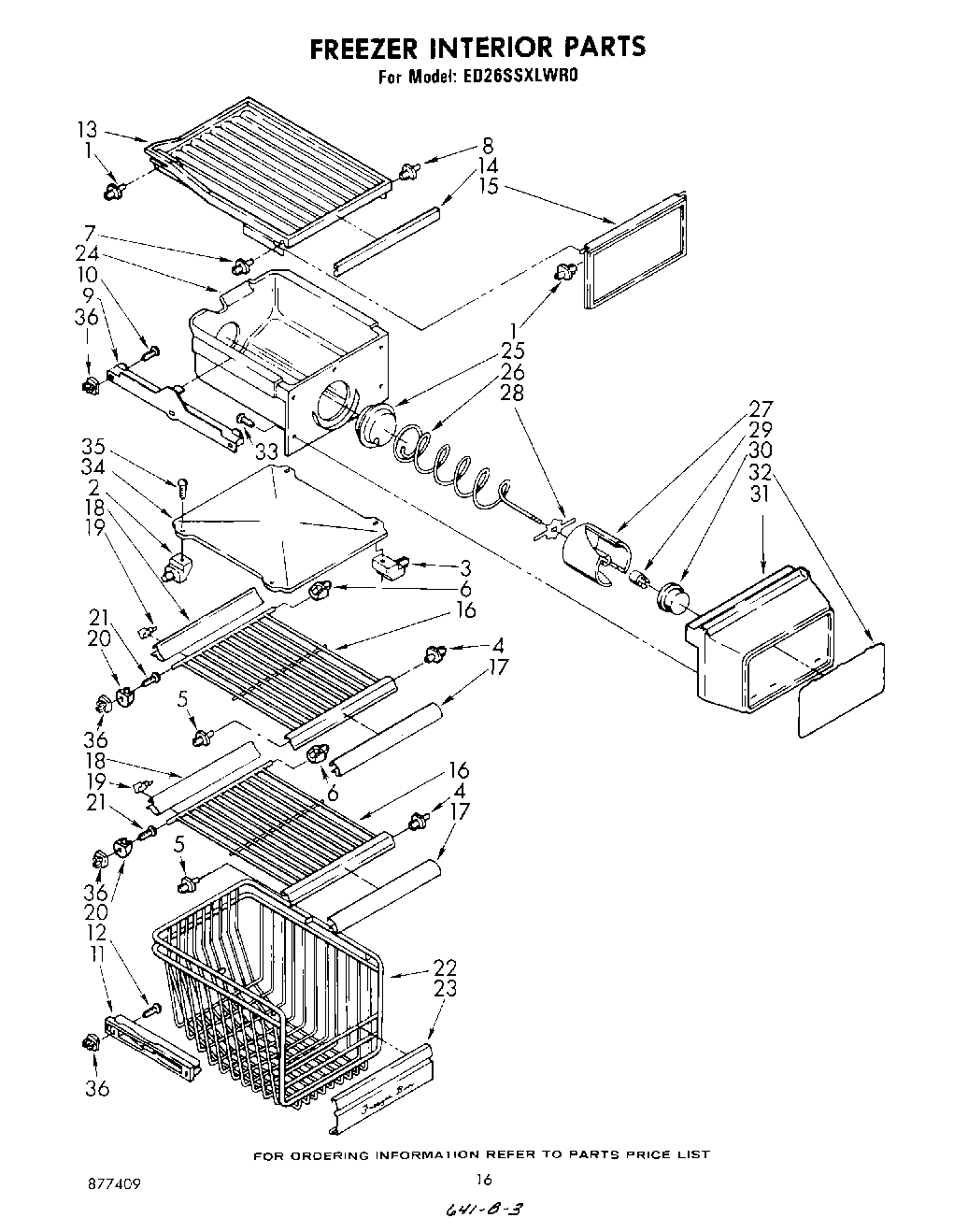

ED26SSXLWR0 10 – FREEZER INTERIOR

ED26SSXLWR0 10 – FREEZER INTERIOR

Written by

in

ED26SSXLWR0 10 – FREEZER INTERIOR

Products

PositionProduct
1Shelf, Stud
2Retainer, Stud (4)
3Retainer, Stud
4Shelf, Stud
5Shelf, Stud (2)
6Shelf, Saddle (R.S.)
7Shelf, Stud
8Stud, Shelf
9Slide, Freezer Bin
10Screw, 8 x 1
11Track, Shelf (R.S.)
11Track, Shelf (L.S.)
12W11693756 Whirlpool Screw Assembly
13Shelf, Solid
13Solid Shelf (For Platinum Model Only)
14Trim, Shelf
15Frontice, Compartment (For Platinum Model Only)
15Frontice, Compartment
16Shelf, Freezer
17Trim Shelf, Front
18Reflector, Shelf
19Clip, Reflector
20Shelf Stud, Saddle L.S.
21WP488729 Whirlpool Refrigerator Door Screw
22Basket, Freezer
23Trim, Freezer Basket
24Ice Container
25W10749708 Whirlpool Refrigerator Coupling
26Conveyor, Ice Container
27Drum, Ice Dispenser
28Drum, Drive Bar
29Collar, Conveyor
30Bearing, Conveyor
31Front Cover, Ice Dispenser
31Front Cover, Ice Dispenser (For Platinum Model Only)
32Overlay, Front Cover
33WP488787 Whirlpool Refrigerator Screw
34Baffle, Ice Container
36Grommet
