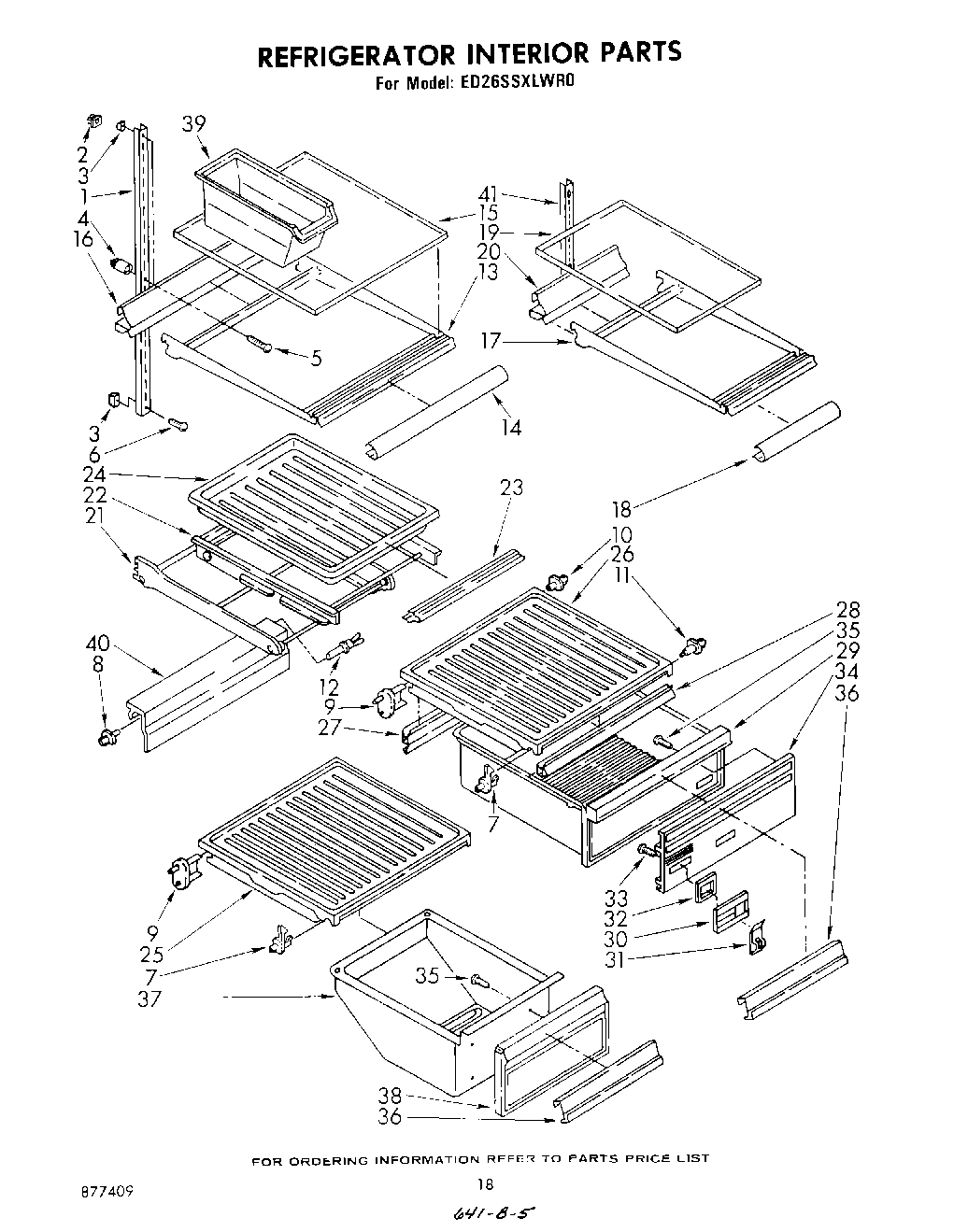

ED26SSXLWR0 11 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

ED26SSXLWR0 11 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Written by

in

ED26SSXLWR0 11 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Paint, Spray 13 Oz. (Avocado)
285006 Whirlpool Spray
paint, spray 13 oz. (coffee)
350942 Whirlpool Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
350956 Whirlpool Spray Assembly
Leveler (Thinner)
1Shelf Ladder (2)
2Screw, Anchor (3)
3520965 Whirlpool Refrigerator Support
4Screw, Grommet
5Screw, 8 x 1-1/4 (3)
6Screw, 8-32 x 1-1/4
6Screw (Repair)
7Shelf, Stud
8Stud, Shelf
9Stud, Shelf
10Stud
11Shelf, Stud
12Stud, Shelf (2)
13Shelf, Cantilever
15Glass, Cantilever Shelf
16Reflector, Cantilever
17Shelf, Cantilever
18Trim, Shelf Front
19Glass, Cantilever Shelf
20Reflector, Cantilever Shelf
21Frame, Cantilever Shelf
22Rollout Shelf, Cantilever
23Shelf Trim, Cantilever
24Bin, Rollout Plastic
25Pan Slide & Cover
26Pan Slide & Cover (Crisper)
26Pan Slide & Cover (For Platinum Model Only)
27Crisper Gasket Rear
28Crisper Gasket Front
29Pan Crisper
30Housing, Humidity Control
31Slide, Humidity Control
32Seal, Humidity Control
33Screw, 6-19 x 7/16
34Front Cover, Crisper (For Platinum Model Only)
34Front Cover, Crisper
35WP488729 Whirlpool Refrigerator Door Screw
36Overlay, Front Cover
37Pan (Meat)
38Front Cover, Meat (For Platinum Model Only)
38Front Cover, Meat Pan
39WP982704 Whirlpool Refrigerator Container
40Light Lens, Lower
4172113 Whirlpool Touch-Up Paint
41WPL 944015
41WPL 944014
41WPL 940100
41212643 Whirlpool Refrigerator Permagum Sealer
41WPL 877409
41WPL 511881
41Shelf Ladder
4172017 Whirlpool Appliance Touch-Up Paint White
41799344 Whirlpool Refrigerator Paint
41WP72107 Whirlpool Touchup
41Almond (Uncut)
41Enamal, Toast (1 Qt. Uncut)
41Golden Harvest (Uncut)
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41WPL 946878
41Platinum (Uncut)
41TAPE, VINYL (3/4 X 108“)
41CEMENT, ALUMILASTIC (1 1/4 OZ.)
41Enamel, Black (1 Qt. Uncut)
41WPL 799832
41WPL 876029
41Enamel, New Avocado (1 Qt. Uncut)
41Enamel, Coffee (1 Qt. Uncut)
41WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
4172109 Whirlpool Dacor Avocado Touch-Up Paint
41WP542638 Whirlpool Refrigerator Grease
41WP505587 Whirlpool Refrigerator Sealer
41WPL 799833
41WPL 72112
41WPL 799351
41511873 Whirlpool Refrigerator Paint
4172032 Whirlpool Touch Up Paint Black
41606755 Whirlpool Refrigerator Bag
41833938 Whirlpool Refrigerator Terminal
41876370 Whirlpool Refrigerator Insulation
41WP503695 Whirlpool Refrigerator Sealer
41Paint, Touch-Up 1/2 Oz. (Coffee)
