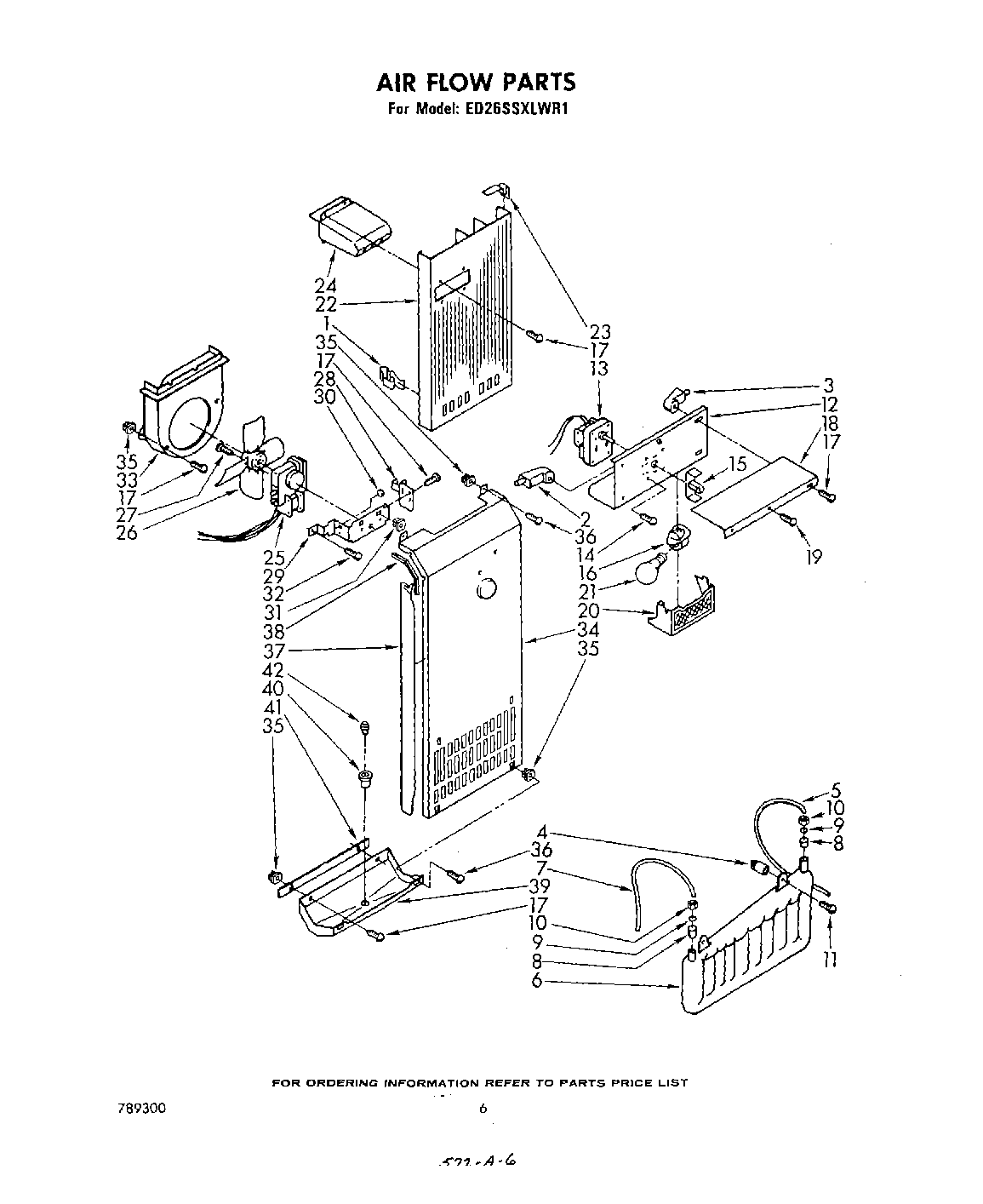

ED26SSXLWR1 04 – AIR FLOW

Products

Position	Product
1	2215823 Whirlpool Refrigerator Clip
2	Support, Stud
3	Support, Stud
4	Grommet
6	WP2256126 Whirlpool Refrigerator Reservoir
7	W10823511 Whirlpool Refrigerator Water Tube
8	4387491 Whirlpool Refrigerator Insert
9	``O`` Ring Seal
10	Nut, Compression
11	Screw, 8 x 1-1/2
12	Bracket, Ice Dispenser
13	Motor
14	303776 Whirlpool Dishwasher Screw
15	COUPLING AUGER MOTOR
16	4387478 Whirlpool Refrigerator Light Socket
17	W11624204 Whirlpool Screw
18	Cover, Ice Dispenser
19	WP489128 Whirlpool Refrigerator Screw
20	Lens, Dispenser Light
21	RANGE ONLY 40W 120V APPL BULB
22	Duct, Air
23	Baffle, Air
24	Air Deflector
25	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
26	Blade, Fan
27	WP487887 Whirlpool Refrigerator Screw
28	Fan, Bracket Double
29	Fan Bracket, Single
30	Grommet (3)
31	Screw Grommet
32	WP489069 Whirlpool Compactor Screw
33	Scroll Fan
34	Cover, Evaporator
35	Grommet
36	WP488729 Whirlpool Refrigerator Door Screw
37	Gasket, Evaporator Cover
38	Gasket, Cover Top
39	Pan, Drain
40	Drain Insert
41	Gasket, Drain Pan
42	Cap, Drain
