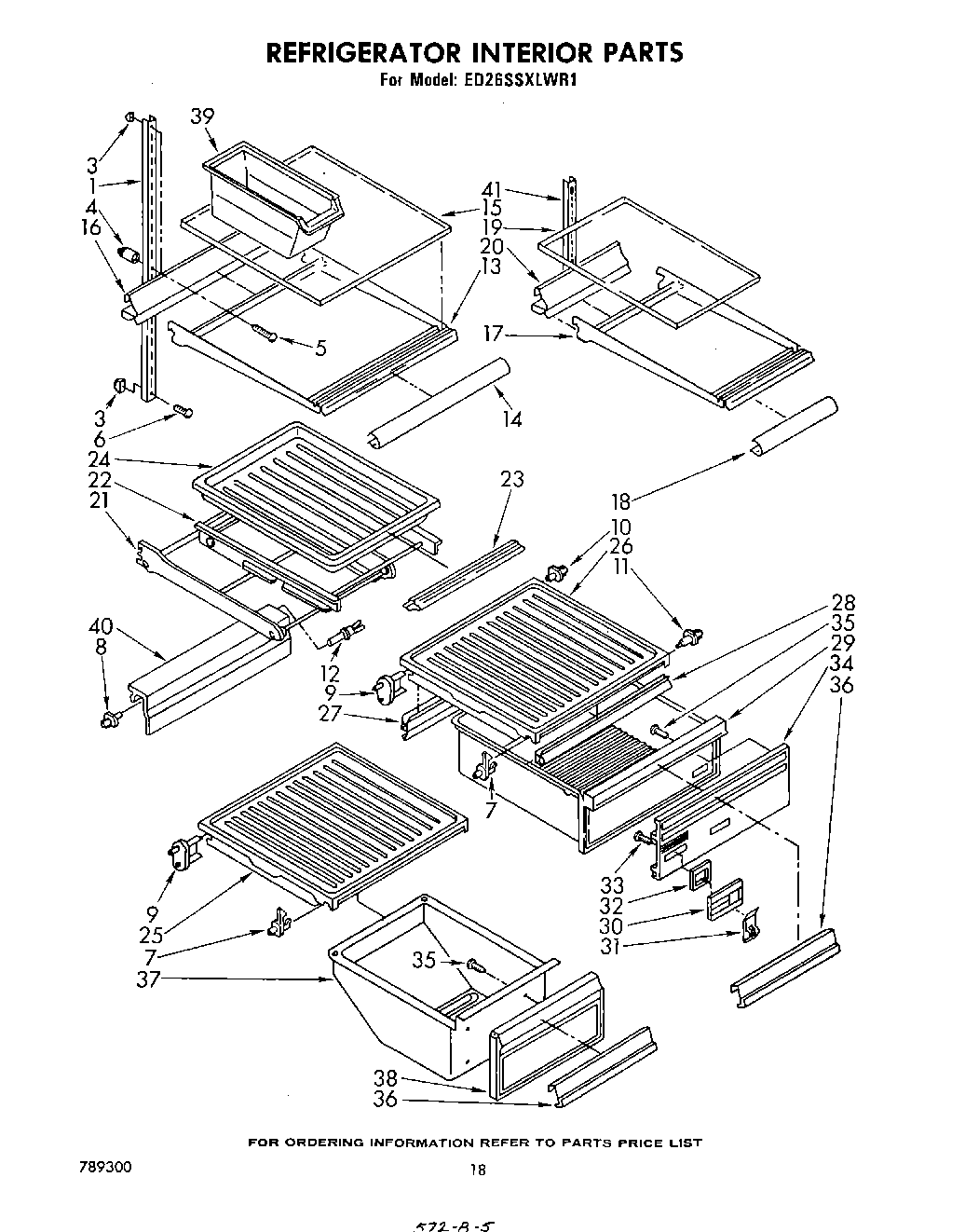

ED26SSXLWR1 11 – REFRIGERATOR INTERIOR

Products

Position	Product
1	Shelf Ladder (2)
3	520965 Whirlpool Refrigerator Support
4	Screw, Grommet
5	Screw, 8 x 1-1/4 (3)
6	Screw, 8-32 x 1-1/4
6	Screw (Repair)
7	Shelf, Stud
8	Stud, Shelf
9	Stud, Shelf
10	Stud
11	Shelf, Stud
12	Stud, Shelf (2)
13	Shelf, Cantilever
15	Glass, Cantilever Shelf
16	Reflector, Cantilever
17	Shelf, Cantilever
18	Trim, Shelf Front
19	Glass, Cantilever Shelf
20	Reflector, Cantilever Shelf
21	Frame, Cantilever Shelf
22	Rollout Shelf, Cantilever
23	Shelf Trim, Cantilever
24	Bin, Rollout Plastic
25	Pan Slide & Cover
25	Pan Slide & Cover (For Platinum Model Only)
26	Pan Slide & Cover (Crisper)
27	Crisper Gasket Rear
28	Crisper Gasket Front
29	Pan Crisper
30	Housing, Humidity Control
31	Slide, Humidity Control
32	Seal, Humidity Control
33	Screw, 6-19 x 7/16
34	Front Cover, Crisper
34	Front Cover, Crisper (For Platinum Model Only)
35	WP488729 Whirlpool Refrigerator Door Screw
36	Overlay, Front Cover
37	Pan (Meat)
38	Front Cover, Meat Pan
38	Front Cover, Meat (For Platinum Model Only)
39	WP982704 Whirlpool Refrigerator Container
40	Light Lens, Lower
41	Shelf Ladder
