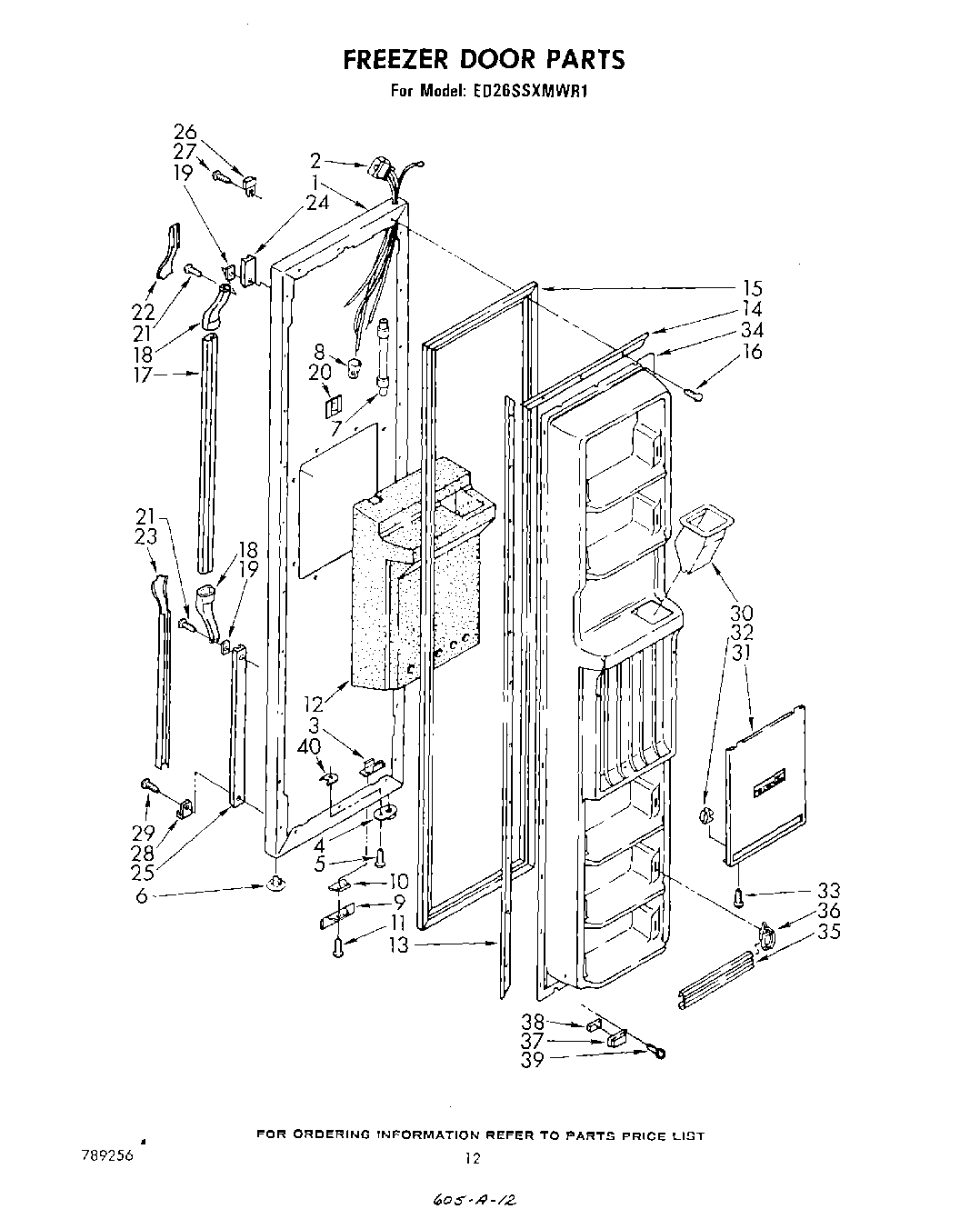

ED26SSXMWR1 07 – FREEZER DOORadmin2025-04-26T09:41:07+00:00ED26SSXMWR1 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Exterior Door Panel Freezer (Platinum) |
| 1 | Exterior Door Panel Freezer (White) |
| 1 | Exterior Door Panel Freezer (Toast) |
| 1 | Exterior Door Panel Freezer (Coffee) |
| 1 | Exterior Door Panel Freezer (Golden Harvest) |
| 1 | Exterior Door Panel Freezer (Almond) |
| 1 | Exterior Door |
| 2 | Plug, Crossover |
| 3 | Tap Plate |
| 4 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 5 | WP489069 Whirlpool Compactor Screw |
| 6 | Hole Plug (2) |
| 7 | Tube, Door Wiring |
| 8 | Wire Connector |
| 9 | Bracket, Door Stop |
| 10 | Shim |
| 11 | Screw, 89 x 5/8 |
| 12 | Insulation, Dispenser |
| 13 | Retainer, Gasket Side |
| 14 | Retainer, Gasket Top & Bottom |
| 15 | Door Gasket, Magnetic |
| 15 | Door Gasket, Magnetic (For Platinum Model Only) |
| 16 | SCREW |
| 17 | Handle, Center (Golden Harvest) |
| 17 | Handle, Center (Almond) |
| 17 | Handle, Center (Toast) |
| 17 | Handle, Center (Platinum) |
| 17 | Handle, Center (White, Coffee) |
| 18 | Center End Cap, Handle |
| 19 | Shim |
| 20 | Screw Anchor (2) |
| 22 | Insert, Handle |
| 23 | Insert, Handle |
| 24 | Retainer Insert |
| 25 | Retainer, Insert |
| 26 | End Cap |
| 27 | Screw |
| 28 | End Cap, Retainer |
| 29 | Screw, 6-32 x 1/2 |
| 30 | Chute, Ice |
| 30 | Chute, Ice |
| 31 | Overlay, Ice Dispenser |
| 32 | Expansion Clip |
| 33 | WP488729 Whirlpool Refrigerator Door Screw |
| 34 | Interior Door Panel (For Platinum Model Only) |
| 34 | Interior, Door Pane |
| 35 | WPL 935969 |
| 36 | WP839904 Whirlpool Refrigerator Endcap Trim |
| 37 | Magnet Cover |
| 37 | Magnet Cover (For Platinum Model Only) |
| 38 | Magnet |
| 39 | Screw |
| 40 | WP1104787 Whirlpool Refrigerator Shim |
