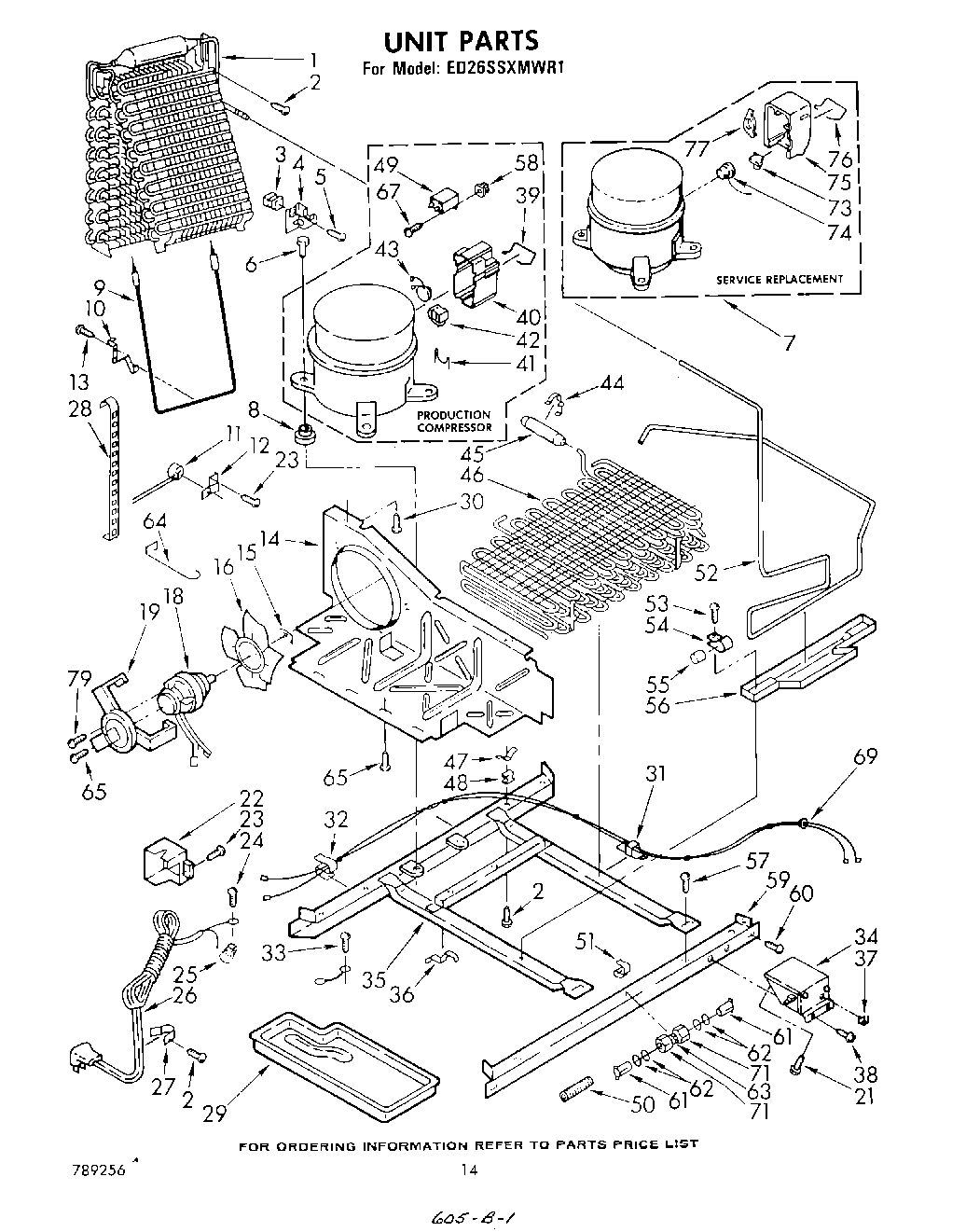

ED26SSXMWR1 08 – UNIT

ED26SSXMWR1 08 – UNIT

Written by

in

ED26SSXMWR1 08 – UNIT

Products

PositionProduct
1Evaporator
2W11624204 Whirlpool Screw
3Grommet, Screw
4Support, Evaporator
5SCREW
7Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
8876811 Whirlpool Grommet
9Heater, Defrost
10Clamp, Evaporator
11WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12Clamp
13W11693756 Whirlpool Screw Assembly
14Baffle, Air
15WP486692 Whirlpool Refrigerator Nut
16Fan, Blade
18833697 Whirlpool Condenser Fan Motor
19Bracket, Motor
21Screw, 6 x 5/8 (3)
22Box, Junction
23WP488729 Whirlpool Refrigerator Door Screw
24Screw, 8-32 x 3/8
25Wire Connector
26Cord, Service
27549193 Whirlpool Refrigerator Power Clamp
28Shield, Evaporator (4)
29Tray, Evaporator
30Screw, 8-15 x 3/8
31Wire, Clip (2)
32WPL 1103752
33303776 Whirlpool Dishwasher Screw
34Transformer & Relay Assembly
35Frame Assembly
36Clip (2)
37Wire Clip
38WP489069 Whirlpool Compactor Screw
39case spring
40Case, Relay
41Spring, Overload
42Relay
43Overload
44Clamp
45W10843121 Whirlpool Refrigerator Tube
46Condenser & Precooler Assembly
47Clamp (4)
48Grommet (4)
49WPW10662129 Whirlpool Refrigerator Run Capacitor
50Spring-Tube
51Clip, Tube (3)
52Exchanger, Heat
53WPW10141625 Whirlpool Refrigerator Screw Assembly
54Clamp Tube
55Dampener (2)
56Pan, Drip
57Screw, 1/4-28 x 1/2 (2)
58Screw Grommet
59Rail, Front
60489340 Whirlpool Refrigerator Screw
614387491 Whirlpool Refrigerator Insert
62“O“ Ring Seal (4)
63WP4211117 Whirlpool Refrigerator Connector
64Guard, Fan
65Screw, 8 x 3/8
69Wire Assembly (Alarm
71WP245183 Whirlpool Nut
73Relay
74Overload
75WPL 549505
76Cover, Spring
77Spring, Overload
79978030 Whirlpool Refrigerator Valve
79978027 Whirlpool Refrigerator Primary Valve
79681390 Whirlpool Refrigerator Screw
79VALVE, ACCESS (5/8“)
79978026 Whirlpool Refrigerator Primary Valve
79WP978025 Whirlpool Refrigerator Valve
79876764 Whirlpool Refrigerator Primary Valve
79VALVE, ACCESS (1/2“)
