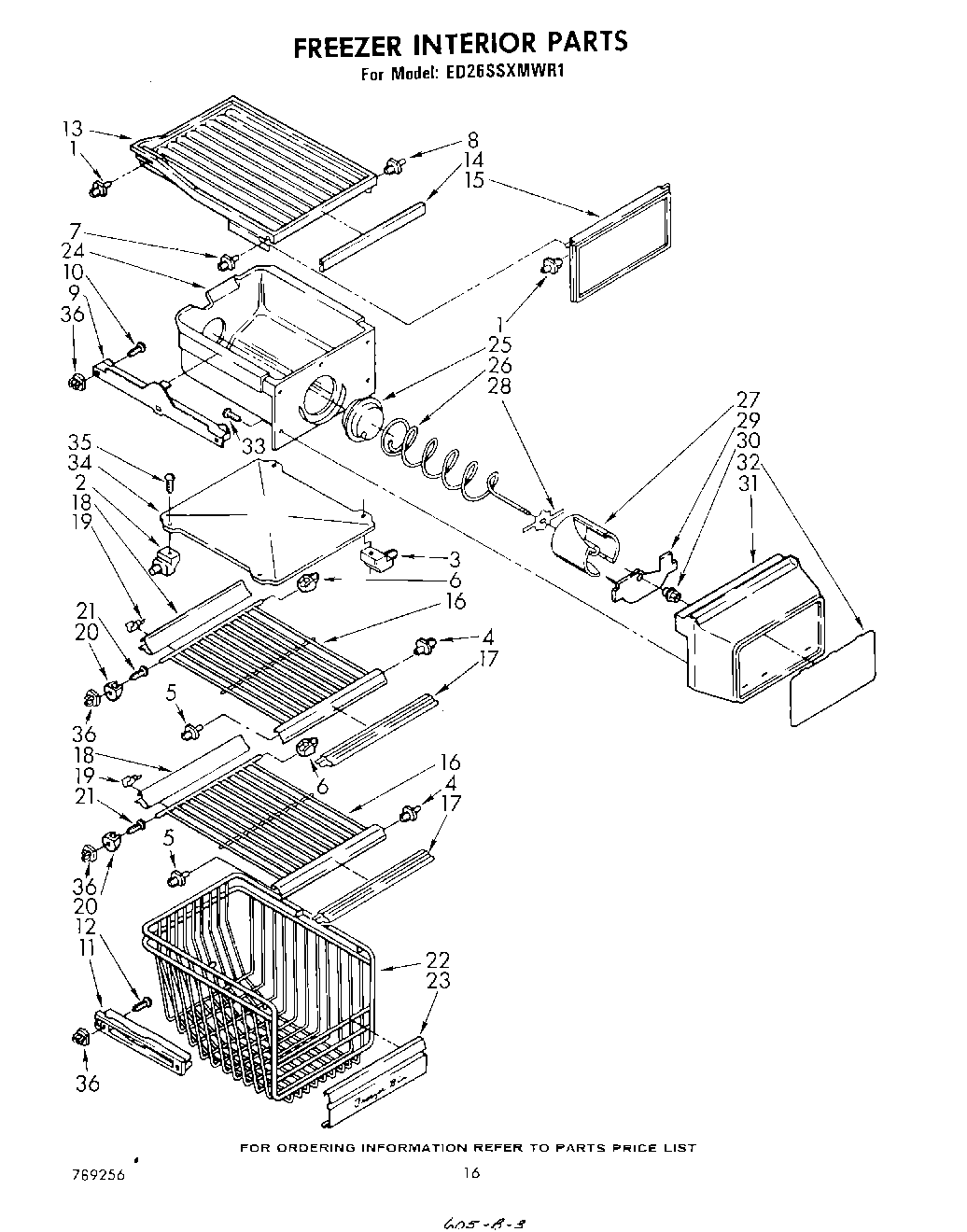

ED26SSXMWR1 09 – FREEZER INTERIOR

Products

Position	Product
1	Shelf, Stud
2	Retainer, Stud (4)
3	Retainer, Stud
4	Shelf, Stud
5	Shelf, Stud (2)
6	Shelf, Saddle (R.S.)
7	Shelf, Stud
8	Stud, Shelf
9	Slide, Freezer Bin
10	Screw, 8 x 1
11	Track, Shelf (R.S.)
11	Track, Shelf (L.S.)
12	W11693756 Whirlpool Screw Assembly
13	Solid Shelf (For Platinum Model Only)
13	Shelf, Solid
14	Trim, Shelf
15	Frontice, Compartment
15	Frontice, Compartment (For Platinum Model Only)
16	Shelf, Freezer
17	Trim Shelf, Front
18	Reflector, Shelf
19	Clip, Reflector
20	Shelf Stud, Saddle L.S.
21	WP488729 Whirlpool Refrigerator Door Screw
22	Basket, Freezer
23	Trim, Freezer Basket
24	Ice Container
25	W10749708 Whirlpool Refrigerator Coupling
26	Conveyor, Ice Container
28	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
29	Baffle
30	Nut, Bearing
31	Front Cover, Ice Dispenser (For Platinum Model Only)
31	Front Cover, Ice Dispenser
32	Overlay, Front Cover
33	WP488787 Whirlpool Refrigerator Screw
34	Baffle, Ice Container
36	Grommet
