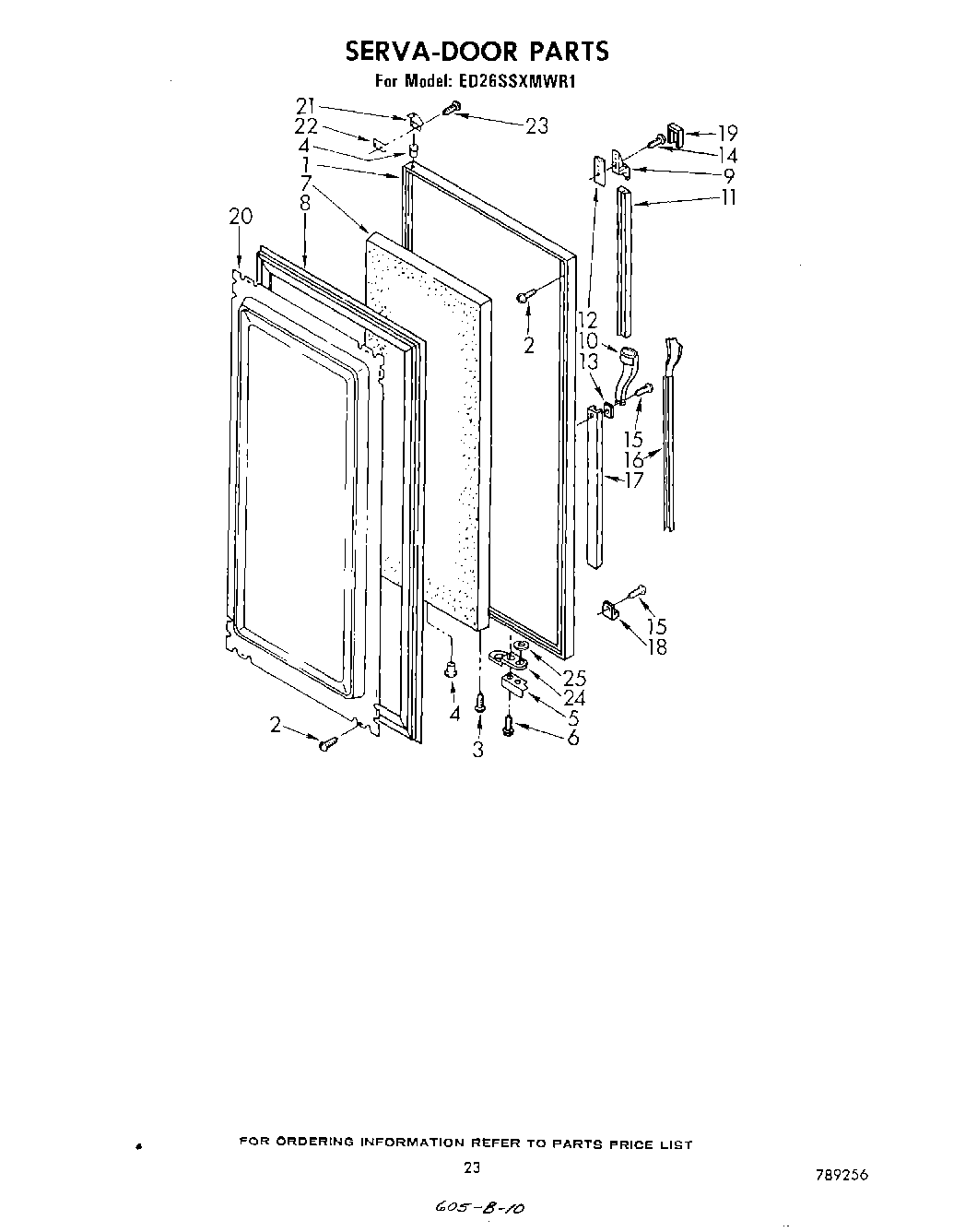

ED26SSXMWR1 13 – SERVA-DOOR

Products

Position	Product
1	Panel, Servadoor (Golden Harvest)
1	Panel, Servadoor (Coffee)
1	Panel, Servadoor (Almond)
1	Panel, Servadoor (White)
1	Panel, Servadoor (Platinum)
1	Panel, Servadoor (Toast)
2	W11624204 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Sleeve, Hinge Pivot
5	Bracket, Door Stop
6	Screw, 8 x 7/16
6	Screw (Repair)
7	Insulation, Servadoor
8	Gasket, Serva-Door
8	Gasket, Serva-Door
9	Handle End,
10	Center End Cap, Handle
11	Handle, Center (Almond)
11	Handle, Center (White, Coffee)
11	Center, Handle (Toast)
11	Center, Handle (Platinum)
11	Handle, Center (Golden Harvest)
12	Shim, Handle
13	Shim
14	Screw, 8-32 x 7/16
15	WPL 488844
16	Insert, Handle
17	Retainer, Insert
18	End Cap, Retainer
19	Cover, End Cap
20	Interior Panel (Servadoor)
20	Interior Panel (Servadoor)
21	Hinge, Top
22	Shim, Hinge Top
23	Screw (Repair)
24	Ground, Clip
25	Washer
