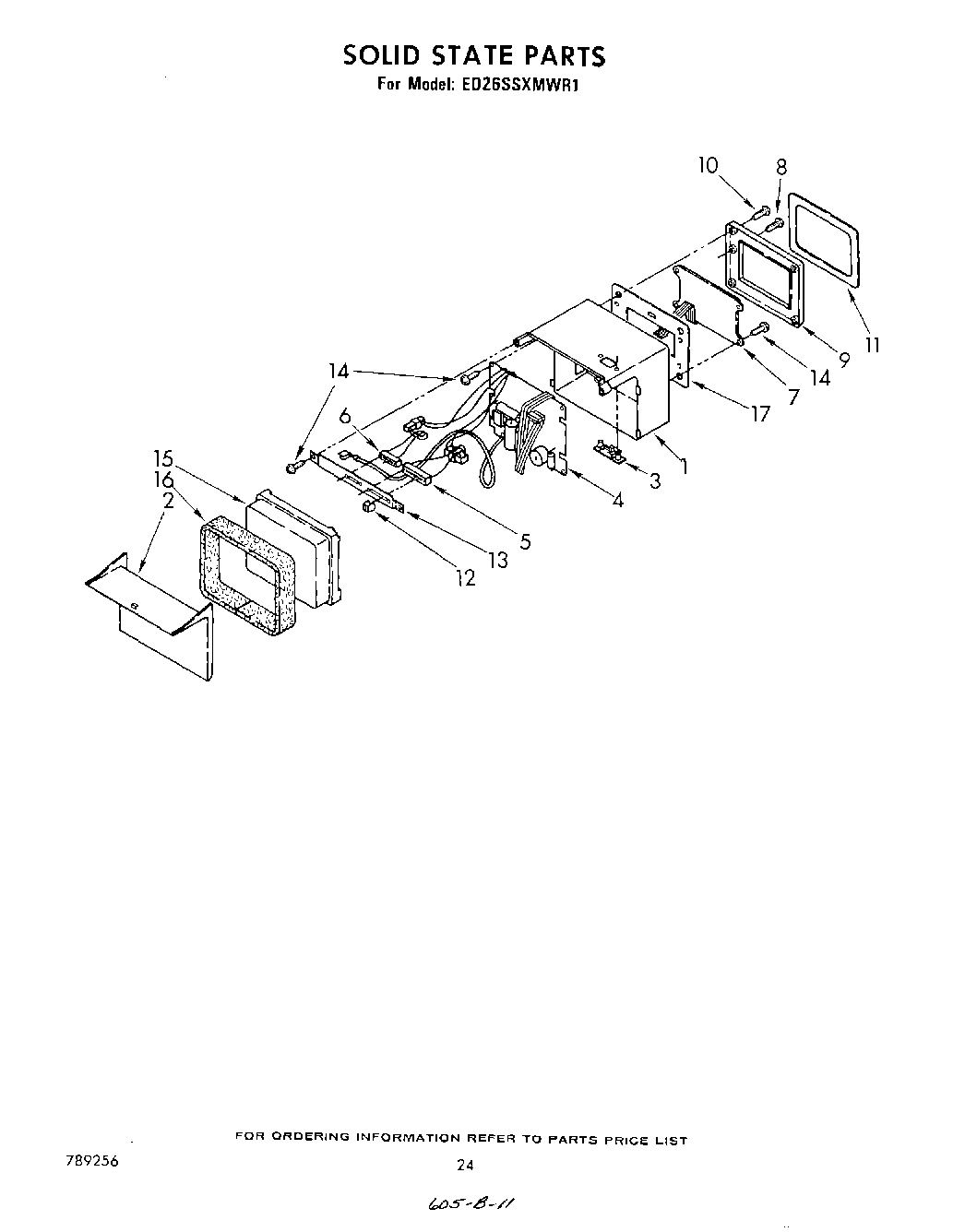

ED26SSXMWR1 14 – SOLID STATEadmin2025-04-26T09:42:08+00:00ED26SSXMWR1 14 – SOLID STATE
Products
| Position | Product |
|---|
| 1 | Housing |
| 2 | Cover Housing |
| 2 | Cover Housing (For Platinum Model Only) |
| 3 | Service Switch |
| 4 | Control Board Assembly |
| 5 | Freezer, Slide Switch |
| 6 | Refrigerator, Slide Switch |
| 7 | Touch & Filter Switch |
| 8 | Screw, 8 x 3/8 |
| 9 | Escutcheon |
| 10 | W11693756 Whirlpool Screw Assembly |
| 11 | Insert, Escutcheon (Toast) |
| 11 | Insert, Escutcheon (Platinum) |
| 11 | Insert Escutcheon (White & Coffee) |
| 11 | Insert Escutcheon (Golden Harvest) |
| 11 | Insert, Escutcheon (Almond) |
| 12 | Knob, Control |
| 13 | Bracket, Switch |
| 14 | W11624204 Whirlpool Screw |
| 15 | Insulation, Control Box |
| 16 | Gasket, Control Box Insulation |
| 17 | Seal, Filter |
