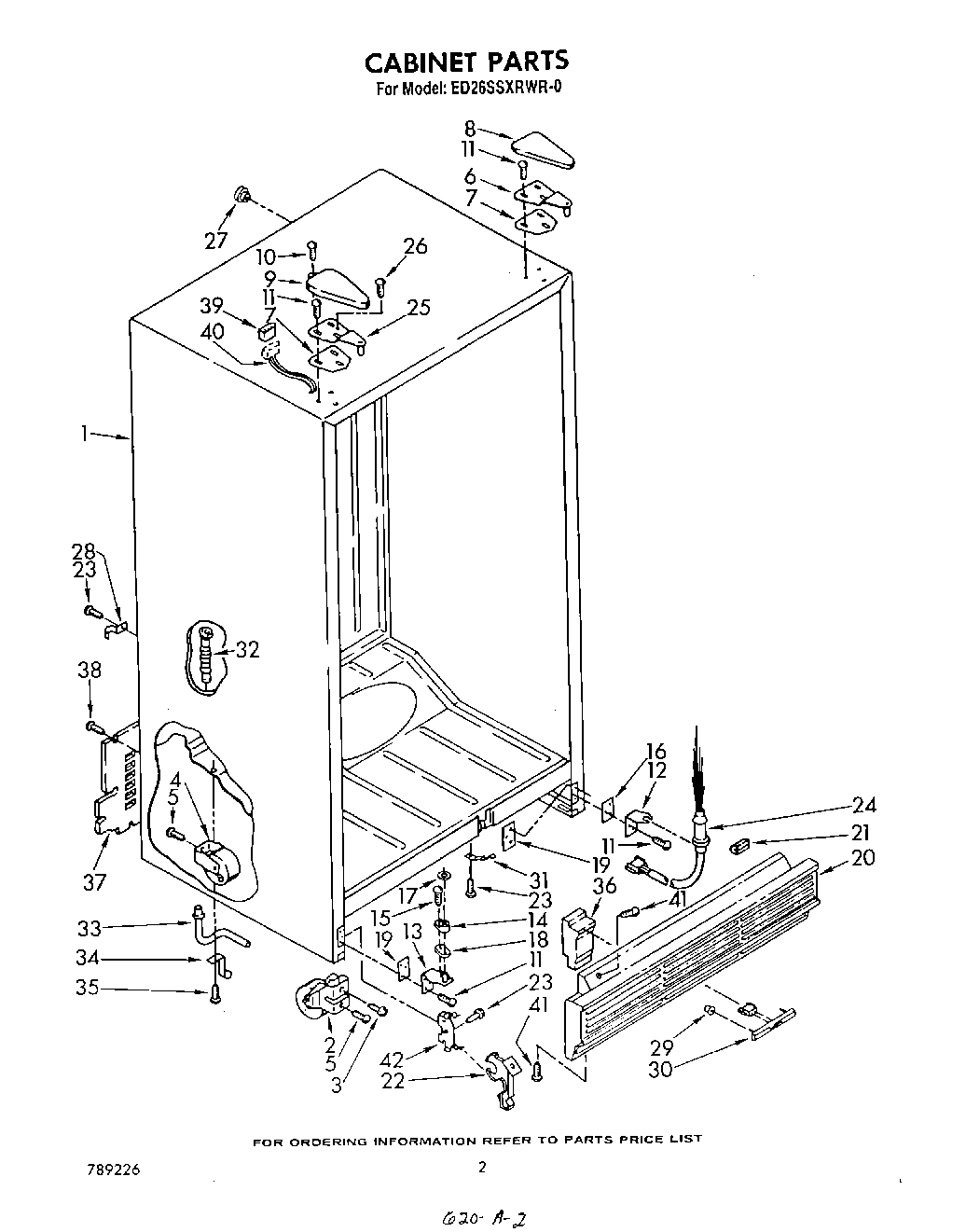

ED26SSXRWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hinge (Top)
7	Shim, Hinge Top
8	Hinge Cover (Toast)
8	Hinge Cover (Golden Harvest)
8	1119787 Whirlpool Refrigerator Hinge Cover
9	Hinge Cover (Toast)
9	WP1129262 Whirlpool Refrigerator Cover
9	Hinge Cover (Platinum)
9	Hinge Cover (Golden Harvest)
10	Screw, 6-32 x 1/2
11	Screw (Repair)
11	WP999367 Whirlpool Refrigerator Screw
12	Hinge, Bottom
13	Hinge Bottom (L.H)
14	WPW10329686 Whirlpool Door Cam Black
15	WP486579 Whirlpool Air Conditioner Screw
15	Screw (Repair)
16	Shim, Bottom Hinge
17	WP487576 Whirlpool Washer
18	Shim, Door Closer
19	Tap Plate
20	Exterior, Grille (Almond)
20	Exterior, Grille (White)
20	Exterior, Grille (Toast)
20	Exterior, Grille (Golden Harvest)
20	Exterior, Grille (Platinum)
21	Bumper, Grille
22	WP944224 Whirlpool Refrigerator Support
23	W11624204 Whirlpool Screw
24	Wiring Assembly Door
25	Hinge, Top Freezer
26	WP488234 Whirlpool Air Conditioner Screw
27	Grommet
28	Clamp, Water Line (2)
29	Stud Anchor
30	WPL 943572
30	WPL 943570
30	Door Sensor, Escutcheon (Toast)
30	Door Sensor, Escutcheon (Platinum)
30	Door Se
31	WPL 944973
32	Drain Fitting, Liner
33	Extension, Drain Fitting
34	Cup, Drain Extension
35	Screw, 8-15 x 3/8
36	WPL 836372
37	Cover, Unit Compartment
39	WPL 851648
40	WPL 482553
41	WPL 489085
42	WPL 989068
