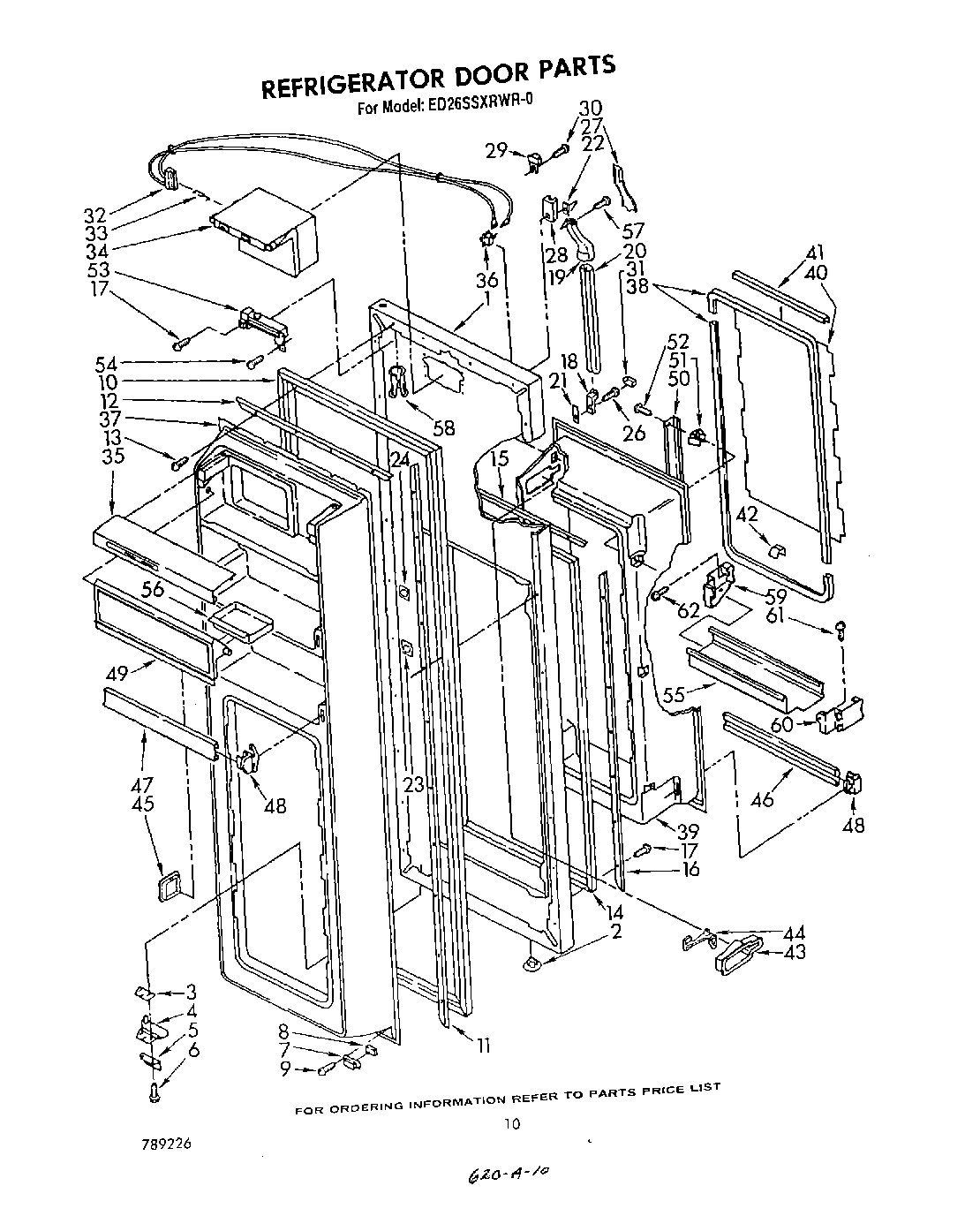

ED26SSXRWR0 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Exterior Door Panel (Golden Harvest)
1	Exterior Door Panel (Almond)
1	Exterior Door Panel (White)
1	Exterior Door Panel (Toast)
1	Exterior Door Panel (Coffee)
1	Exterior Door Panel (Platinum)
2	Hole Plug (2)
3	Shim, Bottom Hinge
4	Hinge, Bottom
5	Bracket, Door Stop
6	WP250830 Whirlpool Refrigerator Screw
7	Magnet Cover (For Platinum Model Only)
8	Magnet
9	Screw
10	Door Gasket, Magnetic (For Platinum Model Only)
11	Retainer, Gasket Side
12	Retainer, Top & Bottom
13	WP489069 Whirlpool Compactor Screw
13	SCREW
14	Gasket, Seal
15	Reinforcement Strip, Top & Bottom (2)
16	Reinforcement Strip, Side
17	W11624204 Whirlpool Screw
18	Handle End,
19	Center End Cap, Handle
20	Center, Handle (For Platinum Model Only)
20	Center, Handle
21	Shim, Handle
22	Shim
23	WP939101 Whirlpool Refrigerator Plate
24	Screw Anchor (2)
26	WP488729 Whirlpool Refrigerator Door Screw
27	Insert Handle (White)
27	Insert Handle (Platinum)
27	Insert Handle (Almond)
27	Insert Handle (Toast)
27	Insert Handle (Golden Harvest)
28	Retainer Insert
29	End Cap
30	Screw
31	Cover, End Cap
32	Connector Edge
33	Key, Lock Plug
34	Control Box Assembly (See Assembly)
35	Escutcheon, Switch & Sensor
36	WPL 943518
37	Interior Doo
38	WPL 986453
39	WPL 1101480
40	Panel, Decorative
41	Trim, Decorative
42	Cap Trim Joint
43	Housing, Rocker Arm
44	Rocker Arm
45	Escutcheon, Panel Opening
46	Trim, Door Shelf
47	Trim, Door Shelf
48	WP839904 Whirlpool Refrigerator Endcap Trim
49	WPL 1109144
50	Shelf Ladder
51	Expansion Clip
53	WPL 840847
54	Screw, 8 x 3/8
55	WPL 1109090
58	WPL 946354
59	WPL 986451
60	WPL 986452
61	WPL 488929
62	WP487353 Whirlpool Refrigerator Screw
