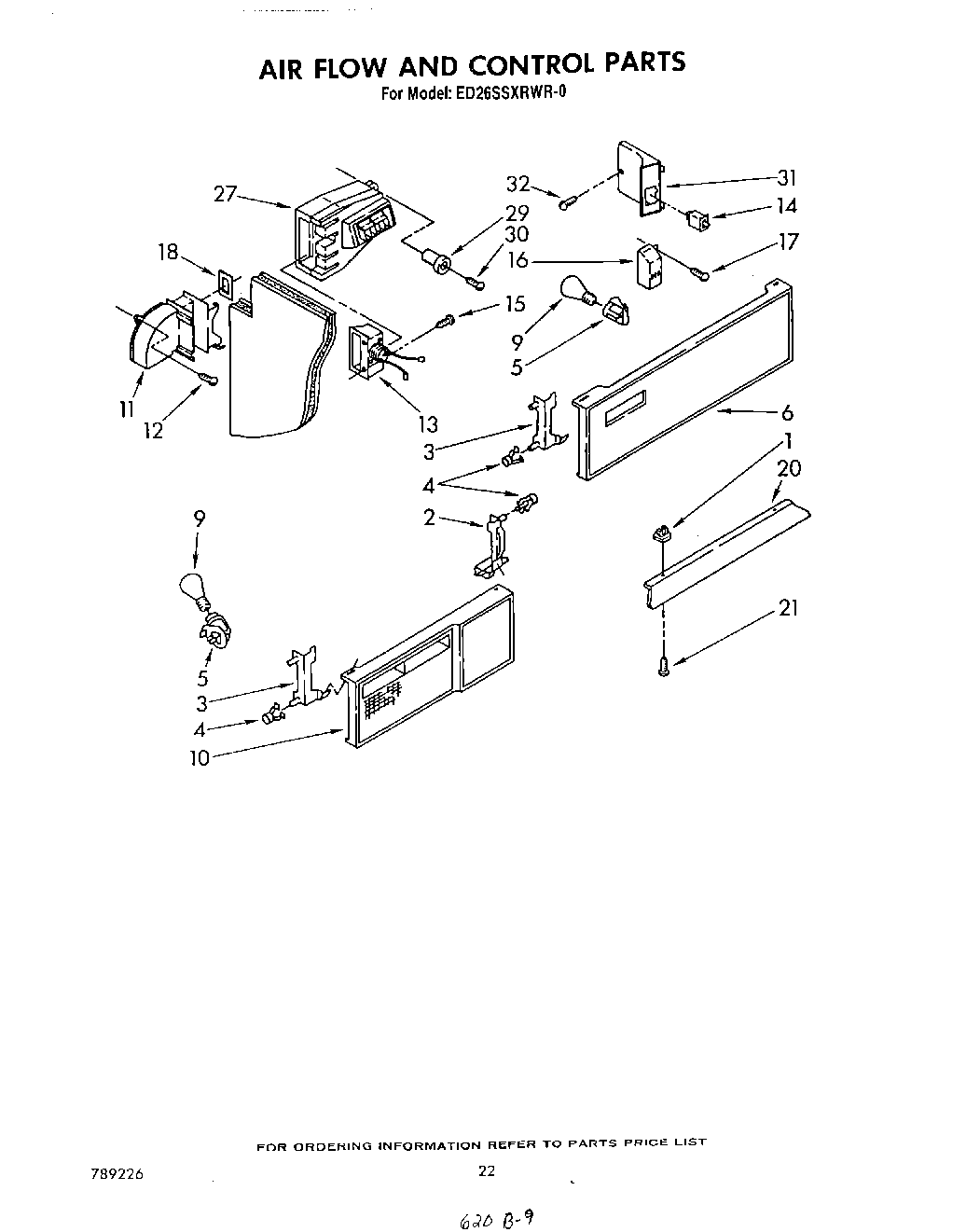

ED26SSXRWR0 12 – AIRFLOW AND CONTROL

Products

Position	Product
1	Grommet
2	Support, Light Lens (R.S.)
3	Support, Light Lens (L.S.)
4	Clip, Tubular
5	4387478 Whirlpool Refrigerator Light Socket
6	Light, Lens
9	RANGE ONLY 40W 120V APPL BULB
10	Light Lens, Freezer
11	Air Duct
12	WP488163 Whirlpool Refrigerator Screw
13	Damper & Heater Assembly
14	WP938213 Whirlpool Refrigerator Power Switch
15	W11693756 Whirlpool Screw Assembly
16	Sensor Assembly
17	W11624204 Whirlpool Screw
18	Gasket, Air Damper
20	Baffle, Liner Top
21	WP489069 Whirlpool Compactor Screw
27	Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	Escutcheon, Power Miser
32	WP488729 Whirlpool Refrigerator Door Screw
