ED26SSXRWR0 14 – SOLID STATE

ED26SSXRWR0 14 – SOLID STATE

Written by

in

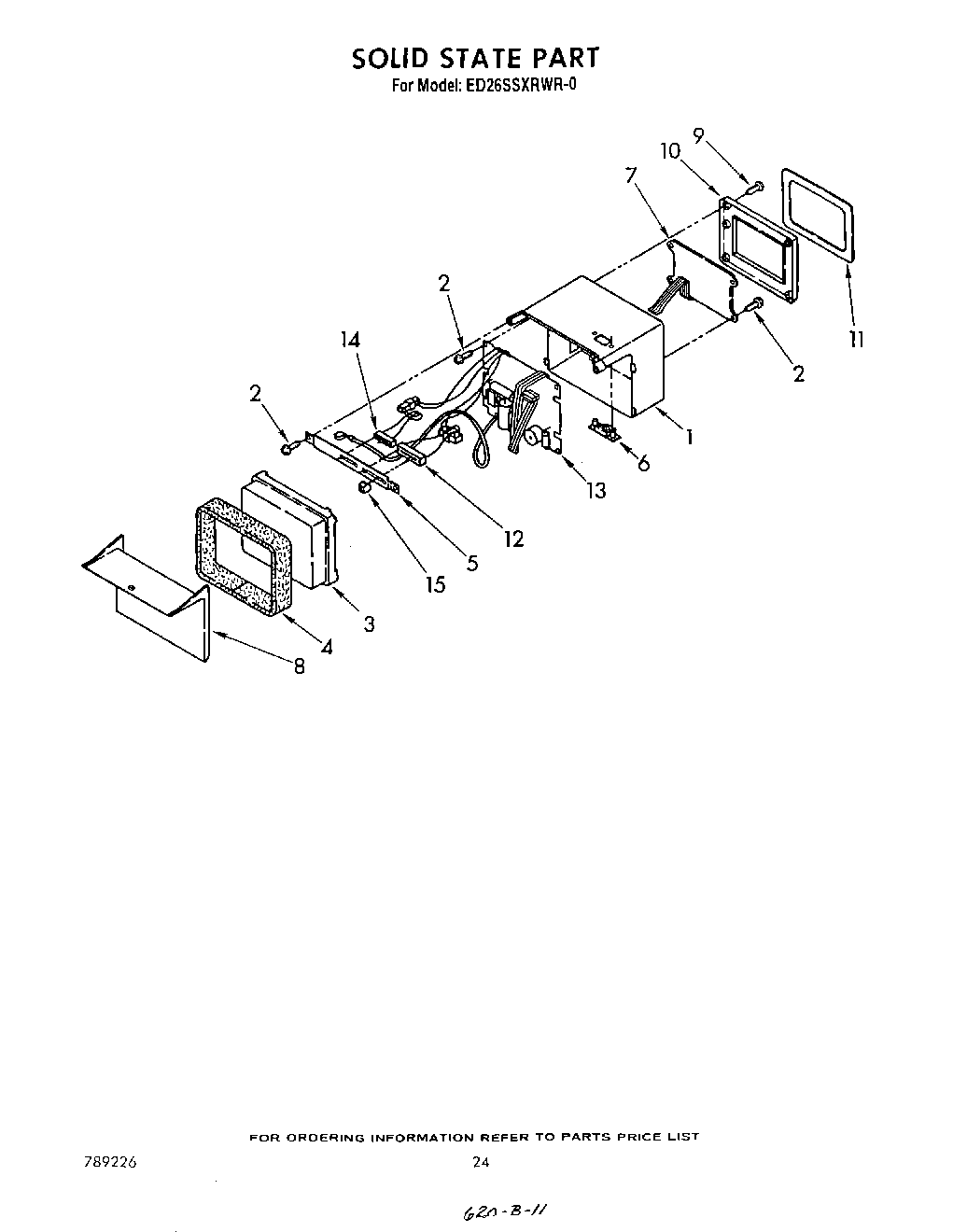

ED26SSXRWR0 14 – SOLID STATE

Products

PositionProduct
1Housing
2W11624204 Whirlpool Screw
3Insulation, Control Box
4Gasket, Control Box Insulation
5Bracket, Switch
6Service Switch
7Touch & Filter Switch
8Cover Housing (For Platinum Model Only)
9W11693756 Whirlpool Screw Assembly
10Escutcheon
11Insert, Escutcheon (Golden Harvest)
11Insert, Escutcheon (Toast)
11Insert, Escutcheon (White)
11Insert, Escutcheon (Platinum)
11Insert, Escutcheon (Almond)
12Freezer, Slide Switch
13Control Board Assembly
14Refrigerator, Slide Switch
15Knob, Control
