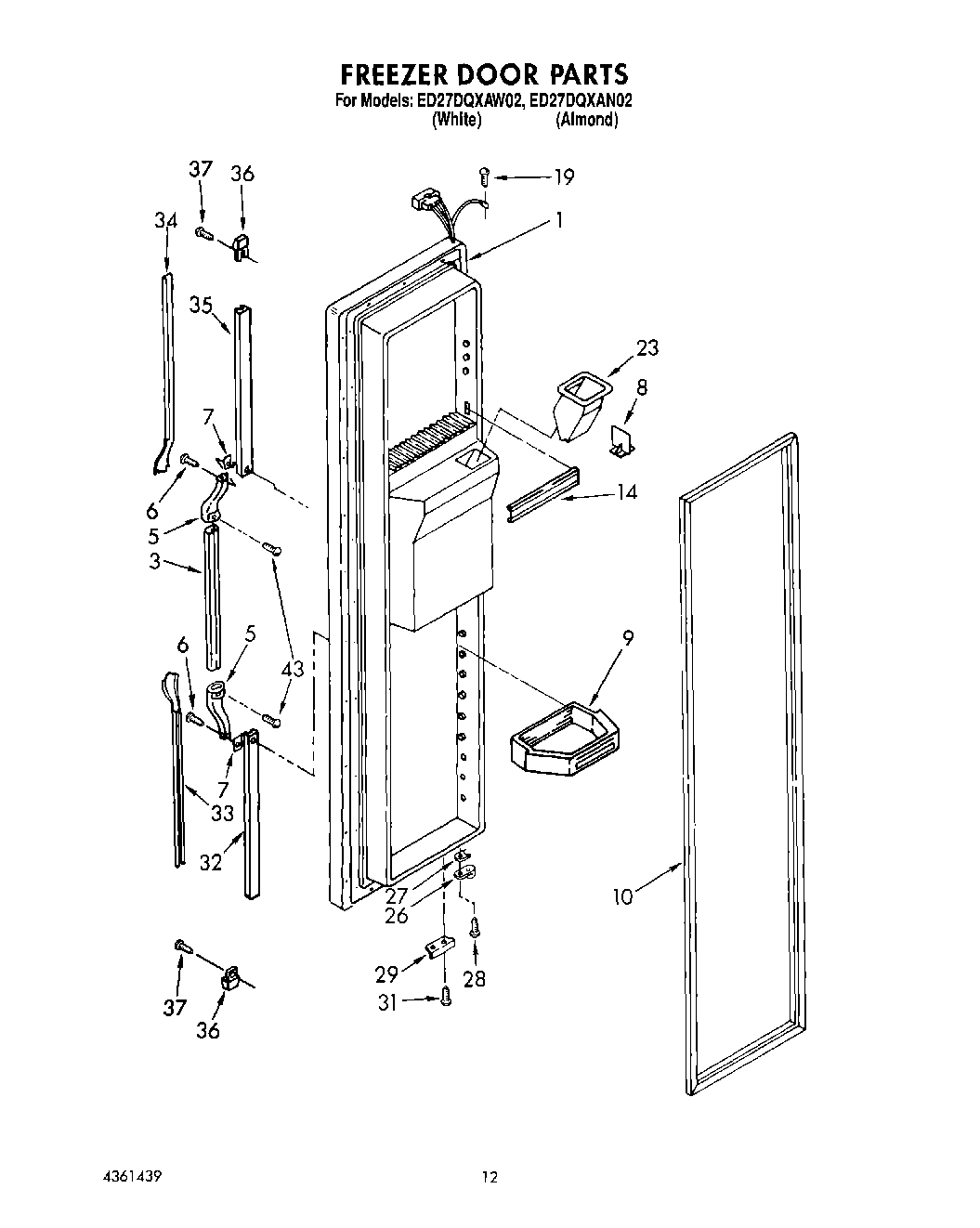

ED27DQXAN02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item 10 And Dispenser Front Parts) (Almond)
1	Freezer Door (Includes Item 10 And Dispenser Front Parts) (White)
3	Handle, Center (White)
3	Handle, Center (Almond)
5	End Cap, Center Handle
6	WP489128 Whirlpool Refrigerator Screw
7	Shim
8	Divider, Shelf
9	Shelf Bin (4)
10	2159074 Whirlpool Door Gasket Seal
14	Trim, Door Shelf
19	WP488234 Whirlpool Air Conditioner Screw
23	Chute, Ice
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
29	Bracket, Door Stop (Chrome)
31	WP489069 Whirlpool Compactor Screw
32	Retainer, Insert (Bottom)
33	Insert, Handle (White)
33	Insert, Handle (Almond)
34	Insert, Handle (Almond)
34	Insert, Handle (White)
35	Retainer, Insert
36	End Cap (2)
37	Screw
43	Screw
