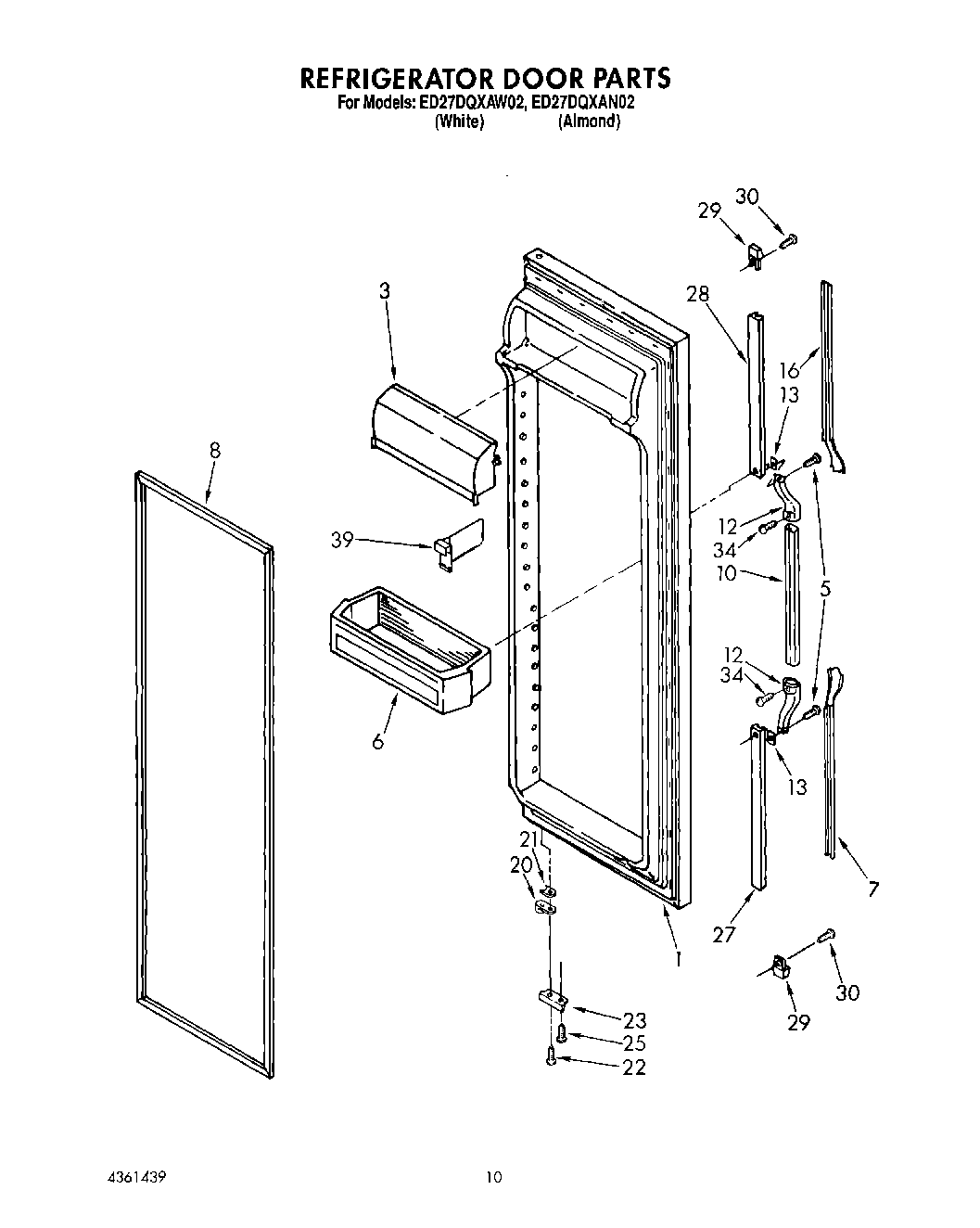

ED27DQXAW02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Almond)
1	Refrigerator Door (Includes Item 8) (White)
3	WP2256101 Whirlpool Dairy Door
5	WP489128 Whirlpool Refrigerator Screw
6	Shelf Bin (2)
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	2159075 Whirlpool Door Gasket Seal
10	Handle, Center (White)
10	Handle, Center (Almond)
12	End Cap, Center Handle
13	Shim
16	Insert, Handle (White)
16	Insert, Handle (Almond)
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
23	Bracket, Door Stop (Chrome)
25	WP489069 Whirlpool Compactor Screw
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
34	Screw
39	Black Handle Insert
39	Trimless Black Decor Panel
39	Trim Kit
39	Divider (3)
39	Woodgrain Handle Insert
