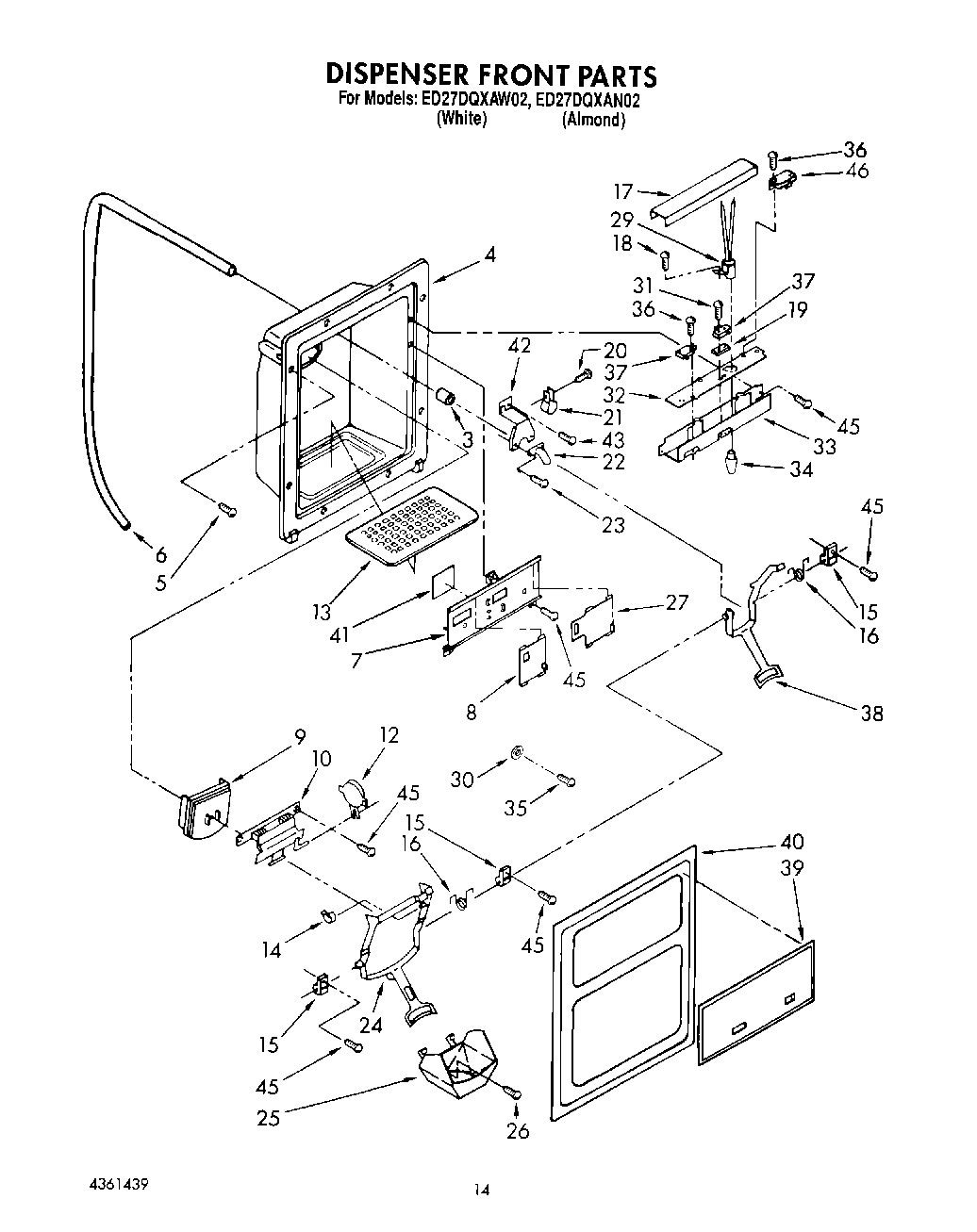

ED27DQXAW02 08 – DISPENSER FRONT

Products

Position	Product
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch (Almond)
8	Slide, Cube/Crush Switch
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
20	WP488787 Whirlpool Refrigerator Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
29	Lamp Holder
30	Washer
31	Screw, 4-40 x 1
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Screw
36	Screw,
37	814037 Whirlpool Microwave Switch
38	Lever Assembly, Water Dispenser (Almond)
38	Lever Assembly, Water Dispenser
39	Plaque, Fr
39	WPL 2162690
40	WPL 2150313
40	WPL 2162702
41	Heat Shield, Frame
42	Bracket, Water
43	Screw, 8-18 x 3/4
45	WP3400906 Whirlpool Refrigerator Screw
46	Switch
