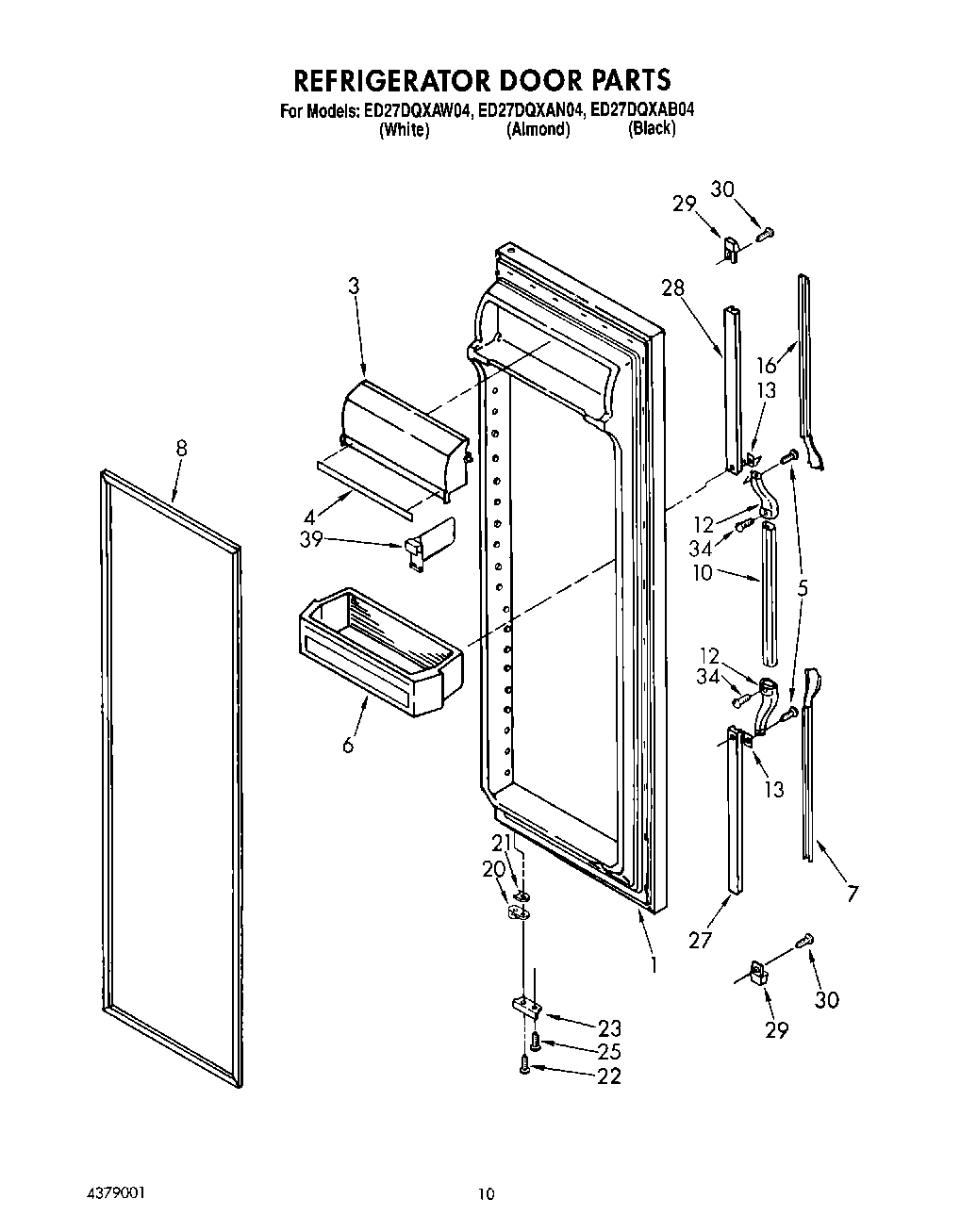

ED27DQXAW04 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Black)
1	Refrigerator Door (Includes Item 8) (White)
1	Refrigerator Door (Includes Item 8) (Almond)
3	Door, Compartment
4	Trim, Compartment Door
5	WP489128 Whirlpool Refrigerator Screw
6	Shelf Bin (2)
7	Insert, Handle (White)
7	Insert, Handle (Black)
7	Insert, Handle (Almond)
8	Door Gasket, Magnetic
8	Door Gasket, Magnetic (Repair) (Mist Beige)
10	Handle, Center (White)
10	Handle, Center
10	Handle, Center (Almond)
12	End Cap, Center Handle
13	Shim
16	Insert, Handle (Black)
16	Insert, Handle (Almond)
16	Insert, Handle (White)
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
23	Bracket, Door Stop (Chrome)
23	Bracket, Door Stop (Black)
25	WP489069 Whirlpool Compactor Screw
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
34	Screw
39	Woodgrain Handle Insert
39	Divider (3)
39	Trimless Black Decor Panel
39	Black Handle Insert
39	Trim Kit
