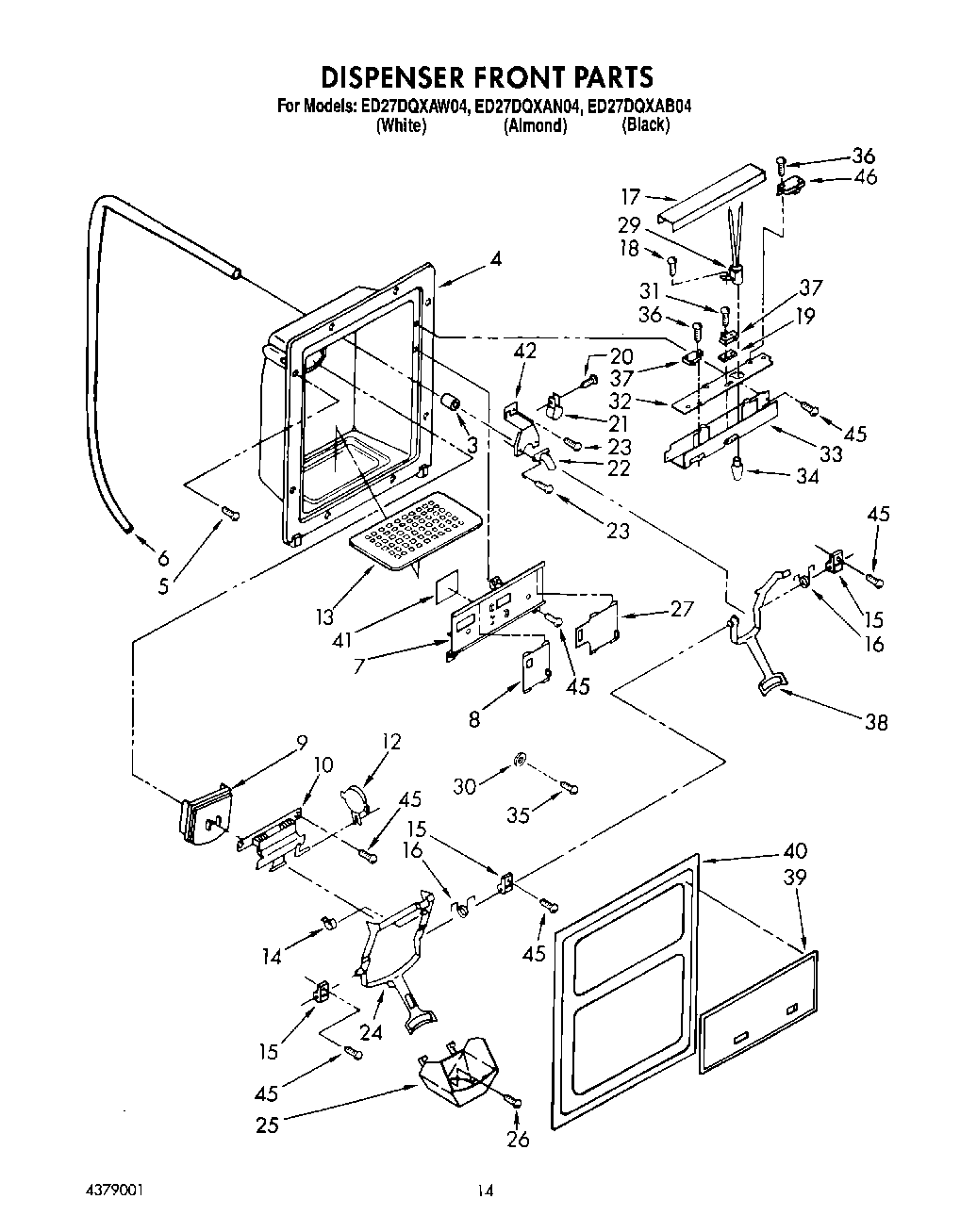

ED27DQXAW04 08 – DISPENSER FRONT

ED27DQXAW04 08 – DISPENSER FRONT

Written by

in

ED27DQXAW04 08 – DISPENSER FRONT

Products

PositionProduct
34387491 Whirlpool Refrigerator Insert
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
6W10823511 Whirlpool Refrigerator Water Tube
7Frame, Slides
7Frame, Slides
7Frame, Slides (Almond)
8Slide, Cube/Crush Switch (Almond)
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
20WP488787 Whirlpool Refrigerator Screw
21WP488878 Whirlpool Refrigerator Tube Clamp
22WP4388152 Whirlpool Refrigerator Fitting
23WP965173 Whirlpool Dishwasher Screw
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser (Almond)
25Guide, Ice
25Guide, Ice
25Guide, Ice (Almond)
26Screw
27Slide, Light Switch
27Slide, Light Switch (Almond)
27Slide, Light Switch
29Lamp Holder
30Washer
31Screw, 4-40 x 1
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Screw
36Screw,
37814037 Whirlpool Microwave Switch
38Lever Assembly, Water Dispenser
38Lever Assembly, Water Dispenser (Almond)
38Lever Assembly, Water Dispenser
39Plaque, Fr
39Plaque, Front Cover
39WPL 2162690
40WPL 2162702
40Front Cover, Housing (Includes Item 39)
40WPL 2150313
41Heat Shield, Frame
42Bracket, Water
45WP3400906 Whirlpool Refrigerator Screw
46Switch
