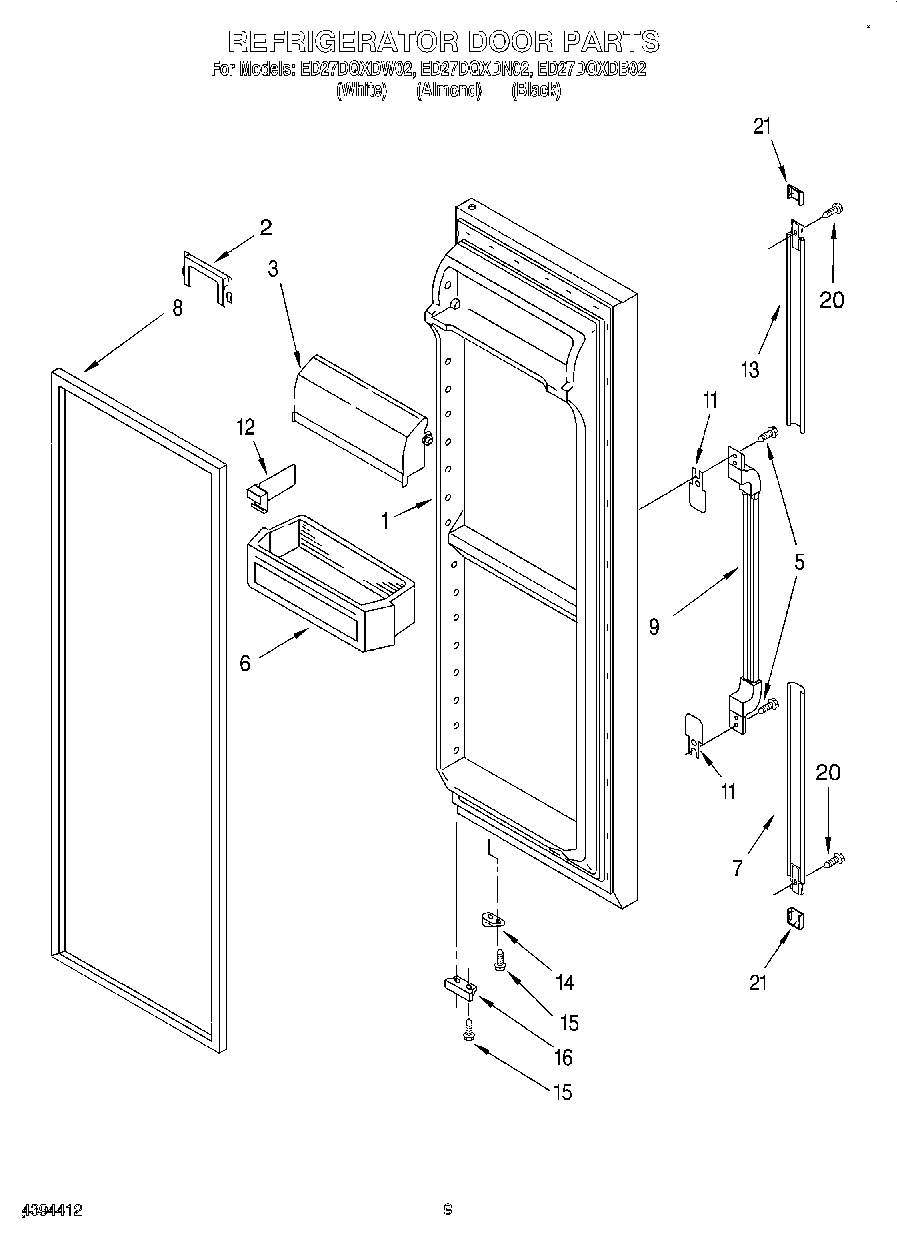

ED27DQXDN02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Almond)
1	Refrigerator Door (Includes Item No.8) (Black)
1	Refrigerator Door (Includes Item No.8) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
5	WP489463 Whirlpool Refrigerator Screw
6	WP2203872 Whirlpool Refrigerator Cantilever Bin
7	Extension, Bottom (White)
7	Extension, Bottom (Almond)
7	Extension, Bottom (Black)
8	2159083 Whirlpool Gasket Door
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (Black)
9	Handle, Center (Almond)
9	Handle, Center (White)
11	Shim
12	WPL 2171284
13	Extension, Top (Almond)
13	Extension, Top (Black)
13	Extension, Top (White)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
16	Bracket, Door Stop (Chrome)
21	Cover, Endcap (White)
21	Cover, Endcap (Black)
21	Cover, End Cap (Almond)
