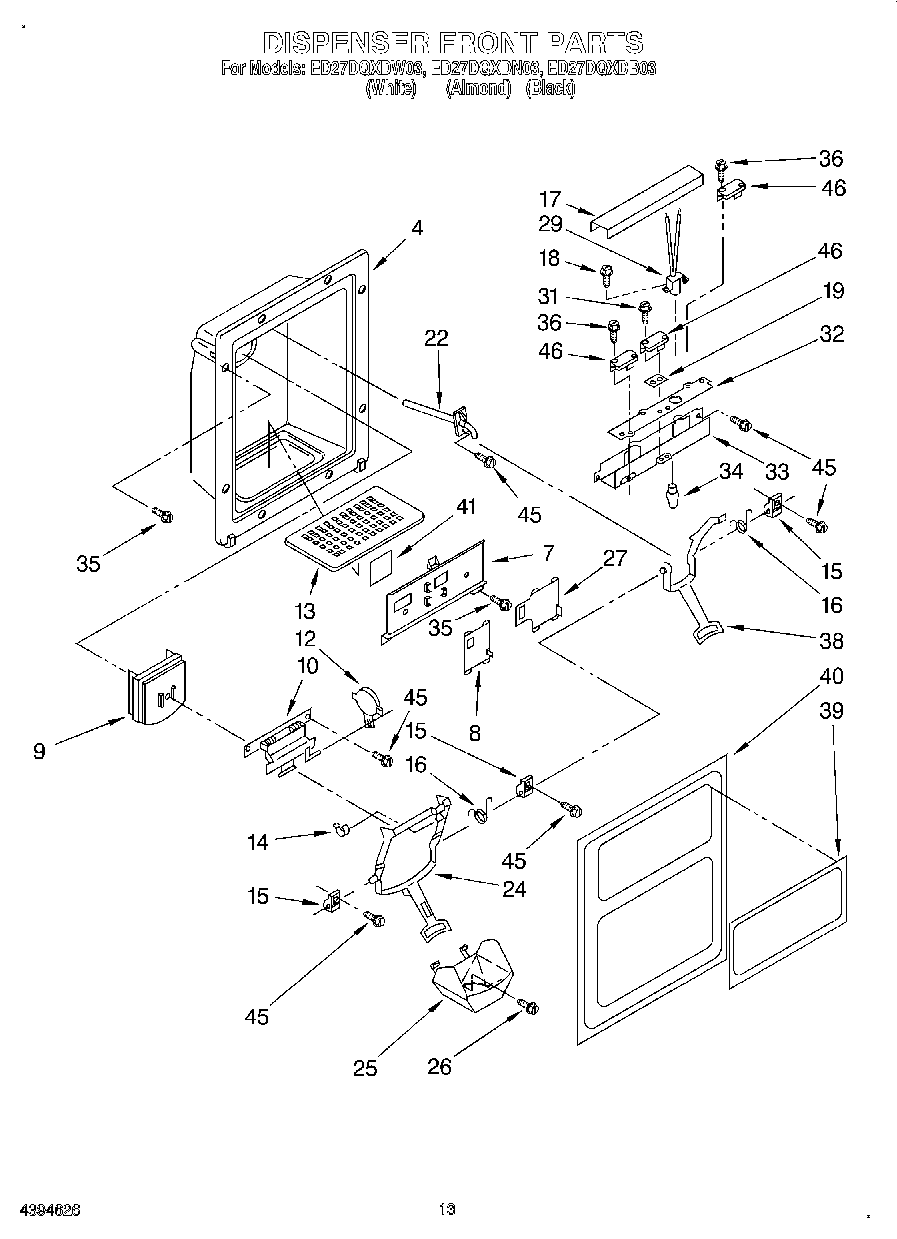

ED27DQXDW03 08 – DISPENSER FRONTadmin2025-04-26T09:42:36+00:00ED27DQXDW03 08 – DISPENSER FRONT
Products
| Position | Product |
|---|
| 4 | Housing, Dispenser (Not a Serviceable Part) |
| 7 | Frame, Slides |
| 7 | Frame, Slides |
| 7 | Frame, Slides (Almond) |
| 8 | Slide, Cube/Crush Switch |
| 8 | Slide, Cube/Crush Switch (Almond) |
| 8 | Slide, Cube/Crush Switch |
| 9 | WP2180353 Whirlpool Dispenser Door |
| 10 | Door Mechanism Assembly |
| 12 | WP1120581 Whirlpool Refrigerator Mechanism |
| 13 | Grille, Overflow (White) |
| 13 | Grille, Overflow (Black) |
| 13 | Grille, Overflow (Almond) |
| 14 | Clip, Bearing (2) |
| 15 | Bearing, Lever (3) |
| 16 | Spring, Lever (2) |
| 17 | Shield, Wiring |
| 18 | WP489128 Whirlpool Refrigerator Screw |
| 19 | Spacer, Switch (2) |
| 22 | WP4388152 Whirlpool Refrigerator Fitting |
| 24 | Lever Assembly, Ice Dispenser (Black) |
| 24 | Lever, Ice Dispenser (White) |
| 24 | Lever, Ice Dispenser (Almond) |
| 25 | Guide, Ice |
| 25 | Guide, Ice (Almond) |
| 25 | Guide, Ice |
| 26 | Screw |
| 27 | Slide, Light Switch |
| 27 | Slide, Light Switch (Almond) |
| 27 | Slide, Light Switch |
| 29 | Lamp Holder |
| 31 | Screw, 4-40 x 1 |
| 32 | Insulator, Control Bracket |
| 33 | Bracket, Control |
| 34 | WP22002263 Whirlpool Dryer 10W Light Bulb |
| 35 | WP489069 Whirlpool Compactor Screw |
| 36 | Screw, |
| 38 | Lever Assembly, Water Dispenser (Black) |
| 38 | Lever, Water Dispenser (White) |
| 38 | Lever, Water Dispenser (Almond) |
| 39 | Plaque, Front Cover |
| 39 | Plaque, Front Cover (White) |
| 39 | Plaque, Front Cover (Almond) |
| 40 | WPL 2179203 |
| 40 | WPL 2179202 |
| 40 | WPL 2174310 |
| 41 | Heat Shield, Frame |
| 45 | WP3400906 Whirlpool Refrigerator Screw |
| 46 | WP2162361 Whirlpool Switch |
