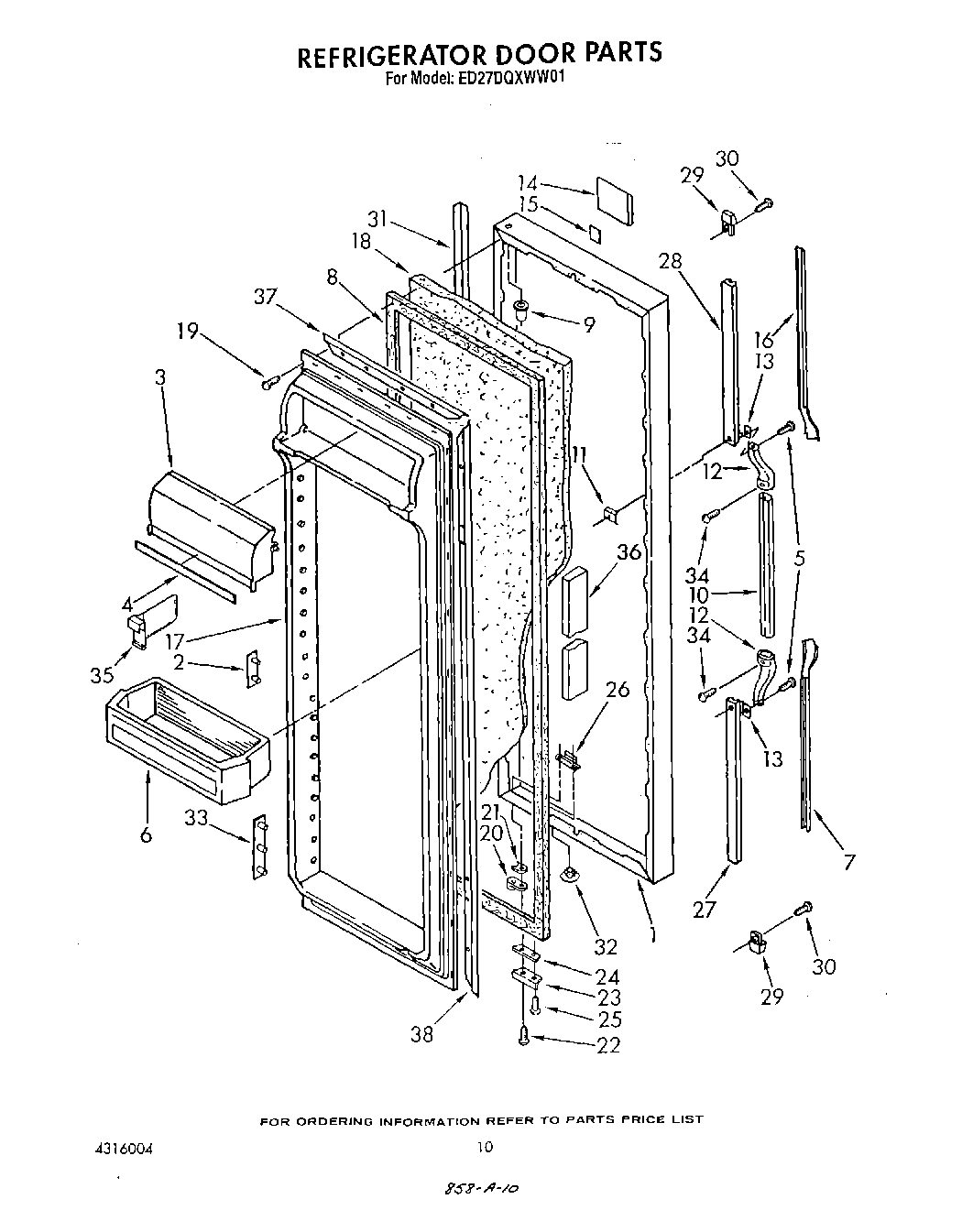

ED27DQXWW01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator Door (White)
2	Pin Plate (6)
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (4)
7	Insert, Handle (Almond)
7	Insert, Handle (White)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
14	Nameplate
15	Tape Strip
16	Insert, Handle (White)
16	Insert, Handle (Almond)
17	Panel, Interior Door
18	WPL 876029
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
25	Screw, 89 x 5/8
26	Plate, Tap (4)
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap
30	Screw
31	Trim, Door
32	Hole Plug (2)
33	Pin Plate (8)
34	Screw
35	Divider (2)
36	Door Dike (2)
37	Gasket Retainer, Top & Bottom
38	Gasket Retainer, Side (2)
